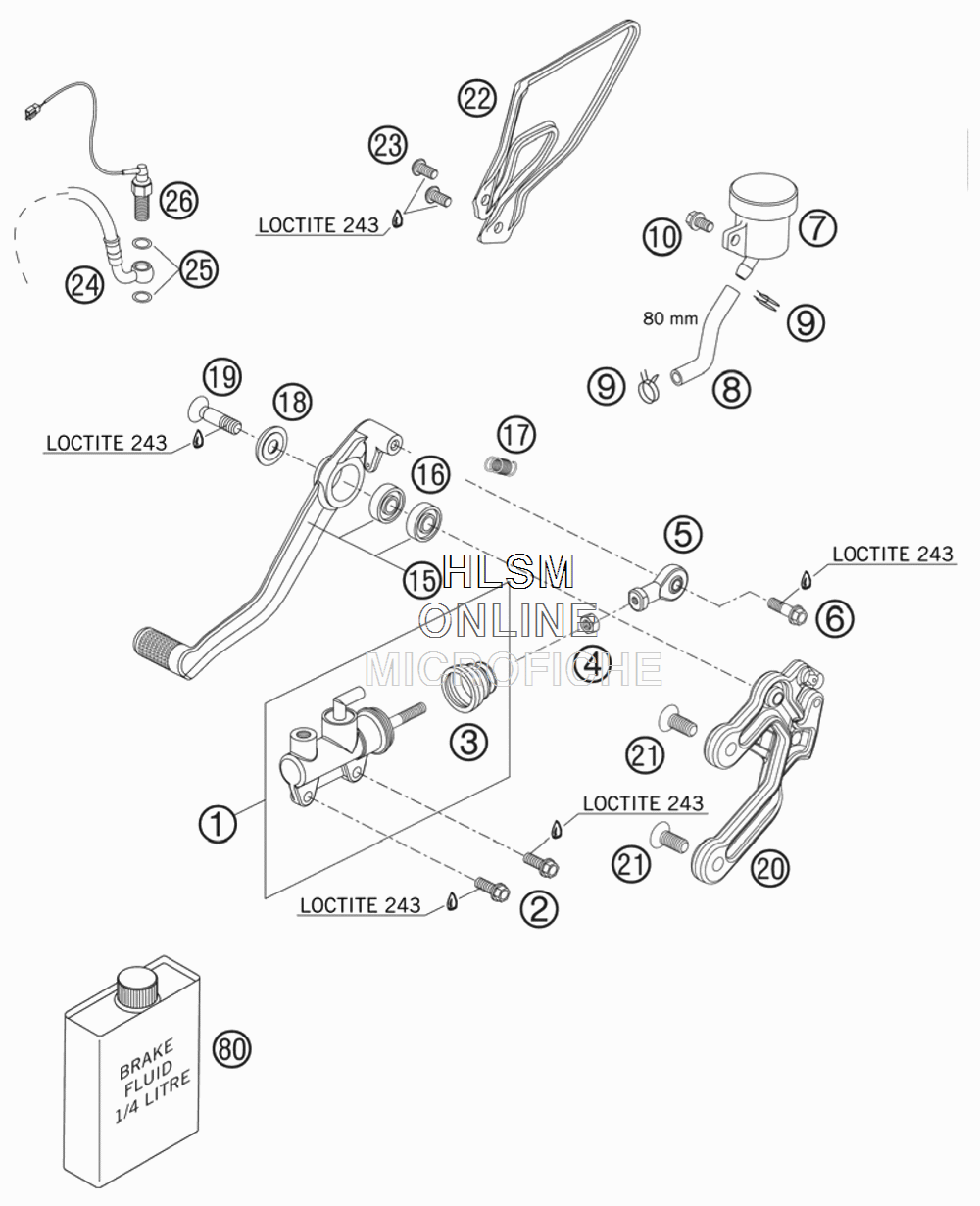

REAR BRAKE CONTROL для Ktm 990 Superduke Black EU - 2006 года выпуска`
-
№АртикулНазвание
-
161013060000 MAIN BRAKE CYLINDERMAIN BRAKE CYLINDER
-
259009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
361013064000 CUP FOR MAIN BRAKE CYLINDERCUP FOR MAIN BRAKE CYLINDER
-
40934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
554603069000 SWIVEL HEAD M6 FOOT BRAKE LEV.SWIVEL HEAD M6 FOOT BRAKE LEV.
-
659009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
761013069000 RESERVOIR REAR CPL.RESERVOIR REAR CPL.
-
858007016101 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
958007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
100015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
1561013050044 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
160625006087 GROOVED BALL BEAR. 608 2RSGROOVED BALL BEAR. 608 2RS
-
1761013052000 SPRING FOOT BRAKE LEVERSPRING FOOT BRAKE LEVER
-
18*58303061100 SPECIAL WASHER ALU 8X24 MM ELOSPECIAL WASHER ALU 8X24 MM ELO
-
1961013059000 FLAT HEAD SCREW M8X32 SLFLAT HEAD SCREW M8X32 SL
-
2061003039000 FOOTREST BRACKET FRONT R/SFOOTREST BRACKET FRONT R/S
-
2154610052000 SPROCKET SCREW-AH M8X20 WS=6SPROCKET SCREW-AH M8X20 WS=6
-
2261013032000 COVER PLATE R/SCOVER PLATE R/S
-
230738060101 COU.SUNK SCR. AH ISO7380 M6X10COU.SUNK SCR. AH ISO7380 M6X10
-
2461013072000 BRAKE PIPE REARBRAKE PIPE REAR
-
2542013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
2661011051000 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
