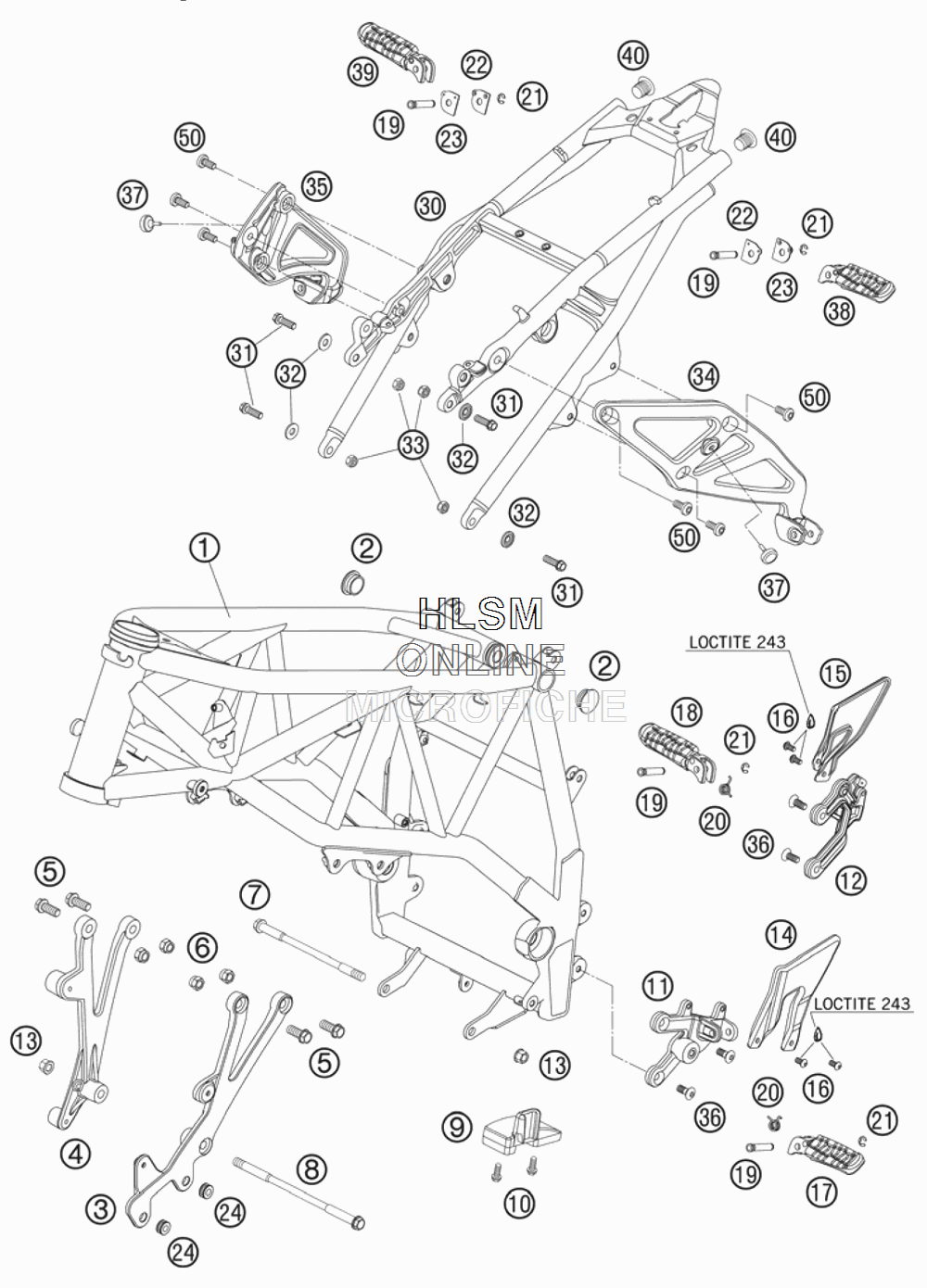

FRAME SUB FRAME для Ktm 990 Superduke Black EU - 2006 года выпуска`
-
№АртикулНазвание
-
16100300100030 FRAME 990 DUKEFRAME 990 DUKE
-
261003088000 PLUG SFL28PLUG SFL28
-
361003005000 ENGINE SUPPORT LEFTENGINE SUPPORT LEFT
-
461003006000 ENGINE SUPPORT RIGHTENGINE SUPPORT RIGHT
-
50015100243 HH COLLAR SCREW M10X24HH COLLAR SCREW M10X24
-
654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
760003013000 ENGINE BRAC. SCREW M10X172ENGINE BRAC. SCREW M10X172
-
860003014000 ENGINE BRAC. SCREW M10X206ENGINE BRAC. SCREW M10X206
-
960004076100 CHAIN SLIDING BLOCKCHAIN SLIDING BLOCK
-
100017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
1161003038000 FOOTREST BRACKET FRONT L/SFOOTREST BRACKET FRONT L/S
-
1261003039000 FOOTREST BRACKET FRONT R/SFOOTREST BRACKET FRONT R/S
-
1354630044000 COLLAR NUT M10COLLAR NUT M10
-
1461034032000 COVER PLATE L/SCOVER PLATE L/S
-
1561013032000 COVER PLATE R/SCOVER PLATE R/S
-
160738060101 COU.SUNK SCR. AH ISO7380 M6X10COU.SUNK SCR. AH ISO7380 M6X10
-
1761003050000 FOOTREST FRONT L/S CPL.FOOTREST FRONT L/S CPL.
-
1861003051000 FOOTREST FRONT R/S CPL.FOOTREST FRONT R/S CPL.
-
1960003044000 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
2061003042000 SPRING FOOTREST FRONTSPRING FOOTREST FRONT
-
210799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
2260003152000 ENGAGE PANEL FOOTREST L/SENGAGE PANEL FOOTREST L/S
-
2360003052000 ENGAGE PANEL FOOTREST R/SENGAGE PANEL FOOTREST R/S
-
2460003098000 RUBBER SLEEVERUBBER SLEEVE
-
3061003002000 SUB FRAME ALUMINIUMSUB FRAME ALUMINIUM
-
310015080303 HH COLLAR SCREW M 8X30HH COLLAR SCREW M 8X30
-
3261003002058 STEPPED WASHER 8,5X20X3,5STEPPED WASHER 8,5X20X3,5
-
330926080003 STOP NUT DIN6926 M8 SSSTOP NUT DIN6926 M8 SS
-
3461003048000 FOOTREST BRACKET REAR L/SFOOTREST BRACKET REAR L/S
-
3561003049000 FOOTREST BRACKET REAR R/SFOOTREST BRACKET REAR R/S
-
3654610052000 SPROCKET SCREW-AH M8X20 WS=6SPROCKET SCREW-AH M8X20 WS=6
-
3760006001021 DISTANCE RUBBER AIRBOXDISTANCE RUBBER AIRBOX
-
3860003050000 FOOTREST CPL. L/S REARFOOTREST CPL. L/S REAR
-
3960003051000 FOOTREST CPL. R/S REARFOOTREST CPL. R/S REAR
-
4061003089000 PLUG SFL 22X1,8-3,5PLUG SFL 22X1,8-3,5
-
5061003052000 SPECIAL SCREW M8X18SPECIAL SCREW M8X18
