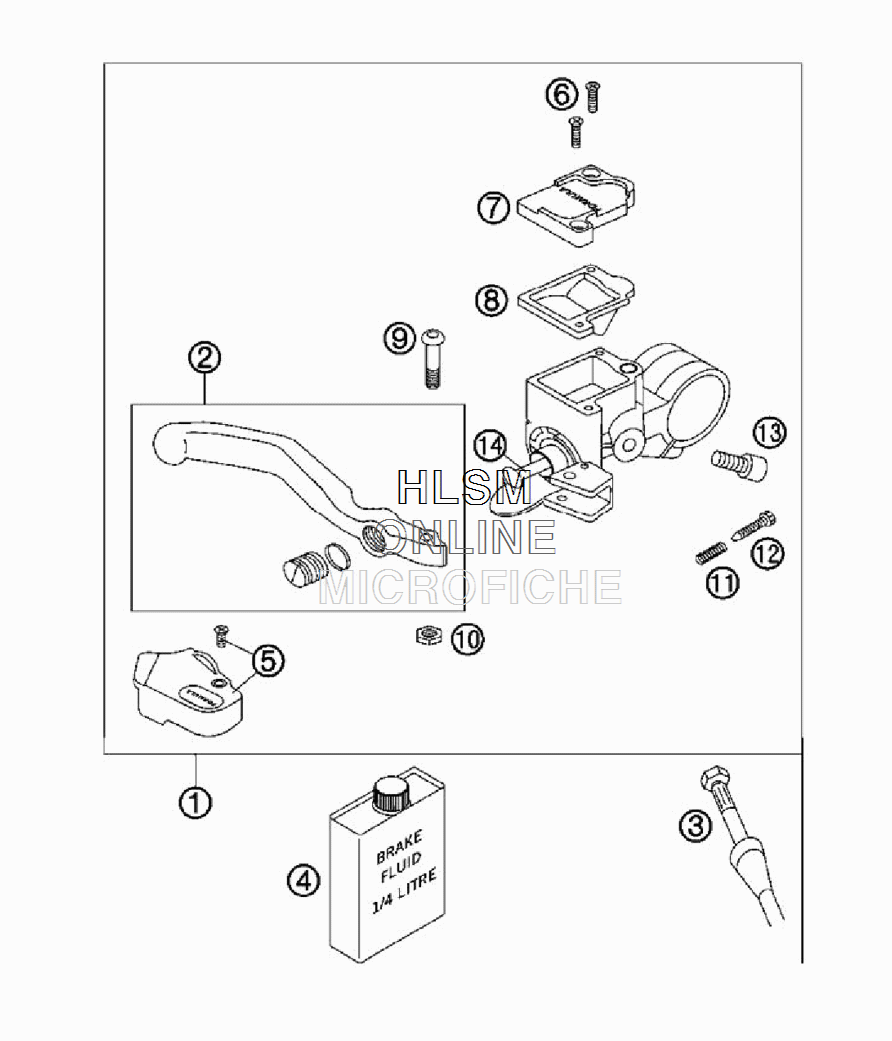

HAND BRAKE CYLINDER для Ktm 50 SX Senior LC - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    45113101044 HAND BRAKE CYLIND.CPL.
    HAND BRAKE CYLIND.CPL.
  • 2
    45113002000 HANDBRAKE LEVER CPL.
    HANDBRAKE LEVER CPL.
  • 3
    45113012100 BRAKE HOSE FR.
    BRAKE HOSE FR.
  • 4
    306054 BRAKE FLUID DOT 5.1
    BRAKE FLUID DOT 5.1
  • 5
    45113004000 PROT.CAP HAND BRAKE CYL.
    PROT.CAP HAND BRAKE CYL.
  • 6
    0966030083 OVAL HEAD SCREW DIN0966-M 3X8
    OVAL HEAD SCREW DIN0966-M 3X8
  • 7
    45113003000 HAND BRAKE CYLINDER COVER
    HAND BRAKE CYLINDER COVER
  • 8
    45113009000 GASKET HAND BRAKE CYLINDER
    GASKET HAND BRAKE CYLINDER
  • 9
    45113006000 SPECIAL-AH SCREW M 5X18
    SPECIAL-AH SCREW M 5X18
  • 10
    45113013000 NUT M5 DIN 6334
    NUT M5 DIN 6334
  • 11
    45113021000 SPRING FOR HAND BRAKE LEVER
    SPRING FOR HAND BRAKE LEVER
  • 12
    45113007000 ADJUSTING SCREW M 3X16
    ADJUSTING SCREW M 3X16
  • 13
    0912050103 AH SCREW DIN0912-M 5X10
    AH SCREW DIN0912-M 5X10
  • 14
    45113008000 REP.KIT PISTON FRONT
    REP.KIT PISTON FRONT
