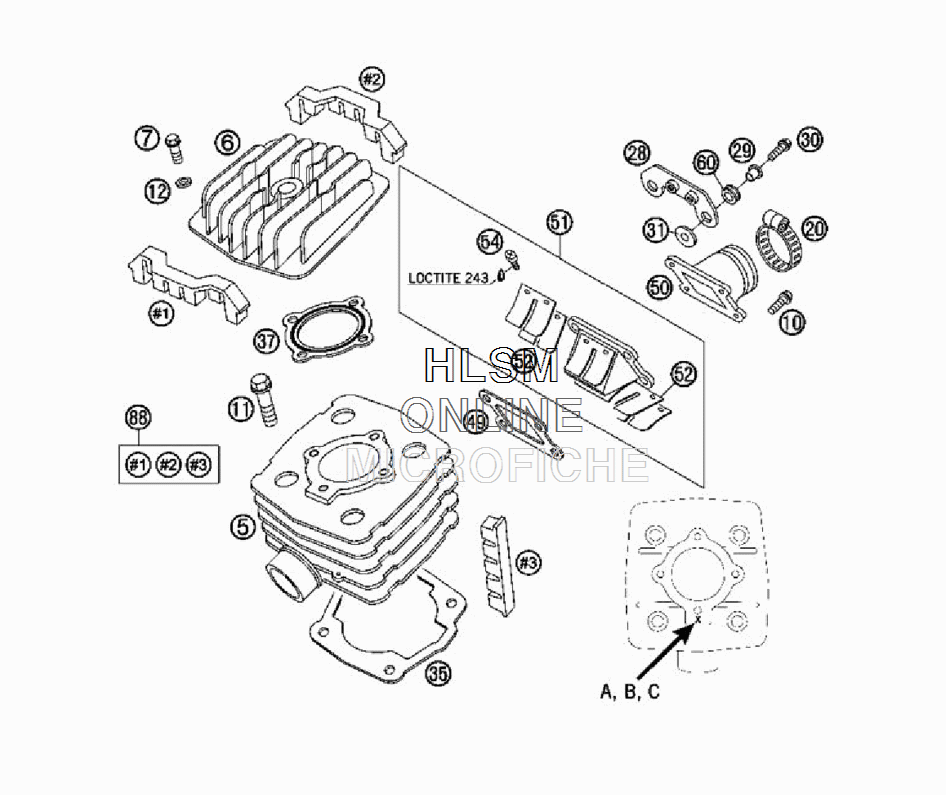

CYLINDER W/ CYLINDER HEAD для Ktm 50 SX Senior LC - 2006 года выпуска

  • №
    Артикул
    Название
  • 5
    45130505000 A CYLINDER 39,5MM "A"
    CYLINDER 39,5MM "A"
  • 5
    45130505000 B CYLINDER 39,5MM "B"
    CYLINDER 39,5MM "B"
  • 5
    45130505000 C CYLINDER 39,5MM "C"
    CYLINDER 39,5MM "C"
  • 6
    45130506100 CYLINDER HEAD
    CYLINDER HEAD
  • 7
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 10
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 11
    0015080203 HH COLLAR SCREW M 8X20 WS=10
    HH COLLAR SCREW M 8X20 WS=10
  • 12
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 20
    10001120000 CLAMP 25-40 SGT 4
    CLAMP 25-40 SGT 4
  • 28
    45139028000 BRACKET IGNITI. COIL
    BRACKET IGNITI. COIL
  • 29
    45139128000 COLLAR BUSHING 6,3X8X7,5
    COLLAR BUSHING 6,3X8X7,5
  • 30
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 31
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 35
    46030035020 CYLINDER BASE GASKET 0,2 MM
    CYLINDER BASE GASKET 0,2 MM
  • 35
    46030035050 CYLINDER BASE GASKET 0,5 MM
    CYLINDER BASE GASKET 0,5 MM
  • 37
    45130537000 CYLINDER HEAD GASKET
    CYLINDER HEAD GASKET
  • 49
    46030049000 INTAKE VALVE GASKET
    INTAKE VALVE GASKET
  • 50
    45130050000 INLET MANIFOLD 50CCM
    INLET MANIFOLD 50CCM
  • 51
    46030051144 MEMBRANE HOUSING CPL.
    MEMBRANE HOUSING CPL.
  • 52
    46030052000 MEMBRANE LOOSE 60/65 CCM
    MEMBRANE LOOSE 60/65 CCM
  • 54
    0985030063 FLAT HEAD SCREW DIN7985-M 3X6
    FLAT HEAD SCREW DIN7985-M 3X6
  • 60
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 88
    45130588000 DAMPING RUBBER-SET
    DAMPING RUBBER-SET
