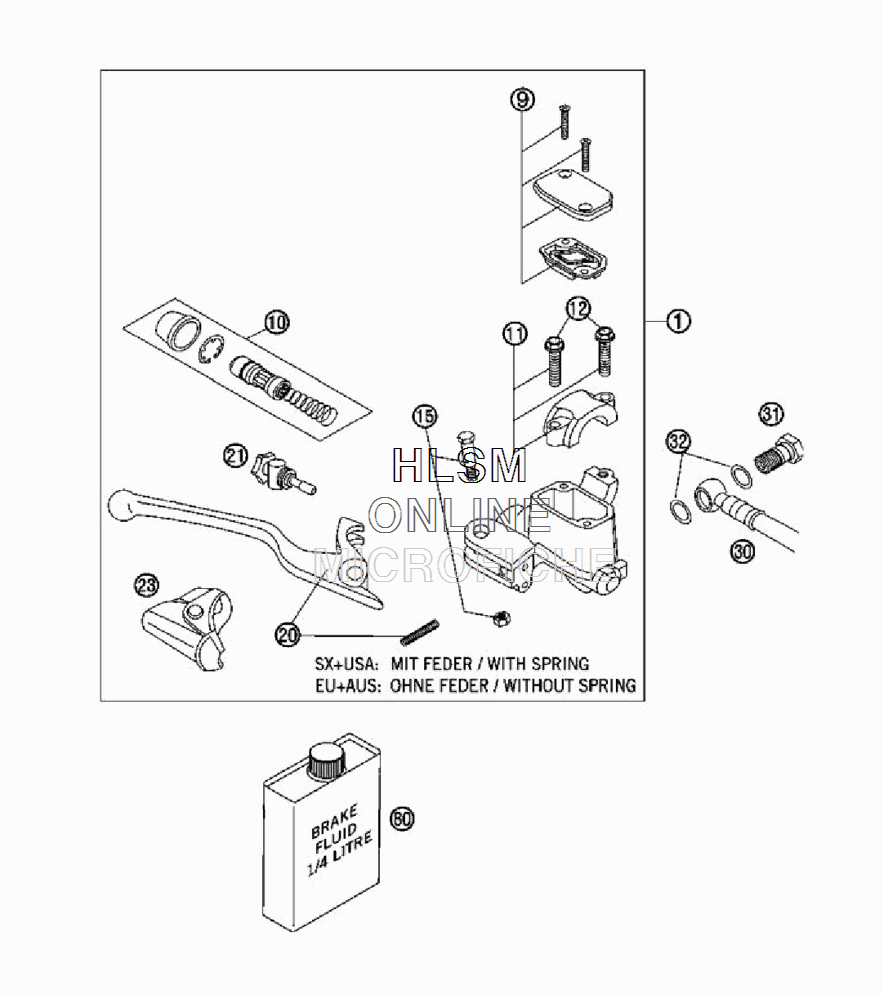

HAND BRAKE CYLINDER для Ktm 125 SX - 2006 года выпуска`
-
№АртикулНазвание
-
154813001200 HAND BRAKE CYLINDER CPL.HAND BRAKE CYLINDER CPL.
-
950313003000 HANDBRAKE CYL.COVER CPL.NATUREHANDBRAKE CYL.COVER CPL.NATURE
-
1054813008200 REP.SET PISTON D=10MMREP.SET PISTON D=10MM
-
1150313005000 CLAMP CPL. NATURECLAMP CPL. NATURE
-
120015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1550313006100 LEVER SCREW CPL.LEVER SCREW CPL.
-
2054813002100 HAND BRAKE LEVER + SPRINGHAND BRAKE LEVER + SPRING
-
2154813007200 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
2350313004000 PROTECTION CAP HAND BRAKE CYL.PROTECTION CAP HAND BRAKE CYL.
-
3059013011000 BRAKEHO. FRONT 1300MMBRAKEHO. FRONT 1300MM
-
3150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
3242013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
