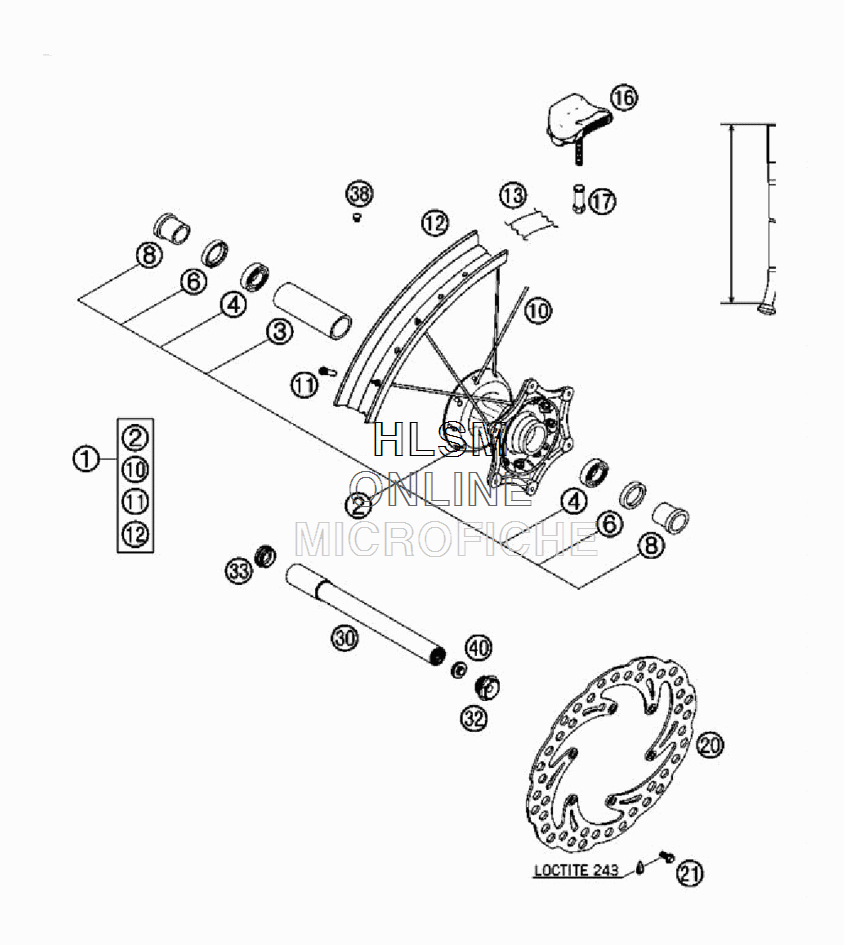

FRONT WHEEL для Ktm 125 SX - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5480900164430 FRONT W. CPL. 1, 6X21" EXCEL
    FRONT W. CPL. 1, 6X21" EXCEL
  • 2
    5480901004491 FRONT HUB CPL. SX SILVER
    FRONT HUB CPL. SX SILVER
  • 3
    54809011000 BEA.SPACERTUBE 35X2 L=79, 4
    BEA.SPACERTUBE 35X2 L=79, 4
  • 4
    0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM
    GR.BALL BEAR.6906 DDU2CG23S6NM
  • 6
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 8
    54809012000 SPACER BUSHING F. FR. WHEEL
    SPACER BUSHING F. FR. WHEEL
  • 10
    50309072228 SPOKE M4, 5X228-15G 21" DDE
    SPOKE M4, 5X228-15G 21" DDE
  • 11
    50309072000 SPOKE NIPPLE M4, 5X0, 75 8X21
    SPOKE NIPPLE M4, 5X0, 75 8X21
  • 12
    5460907010030 RIM 1, 60X21"EXCEL AL4 BLACK
    RIM 1, 60X21"EXCEL AL4 BLACK
  • 13
    50309073000 RIM BAND 21"
    RIM BAND 21"
  • 16
    51009100100 RIM LOCK VM1 (1, 60")
    RIM LOCK VM1 (1, 60")
  • 17
    50310090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 20
    54809060100 BRAKE DISC FRONT D=260MM
    BRAKE DISC FRONT D=260MM
  • 21
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 30
    54809081000 WHEEL SPIN.FR. D=26 M24X1, 5
    WHEEL SPIN.FR. D=26 M24X1, 5
  • 32
    54809082000 SPINDLE SCREW M24X1, 5 WS=27
    SPINDLE SCREW M24X1, 5 WS=27
  • 33
    54809081050 PLUG BUSHING WS=27
    PLUG BUSHING WS=27
  • 38
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 40
    54809081070 AUXILIARY SCREW FRONT
    AUXILIARY SCREW FRONT
