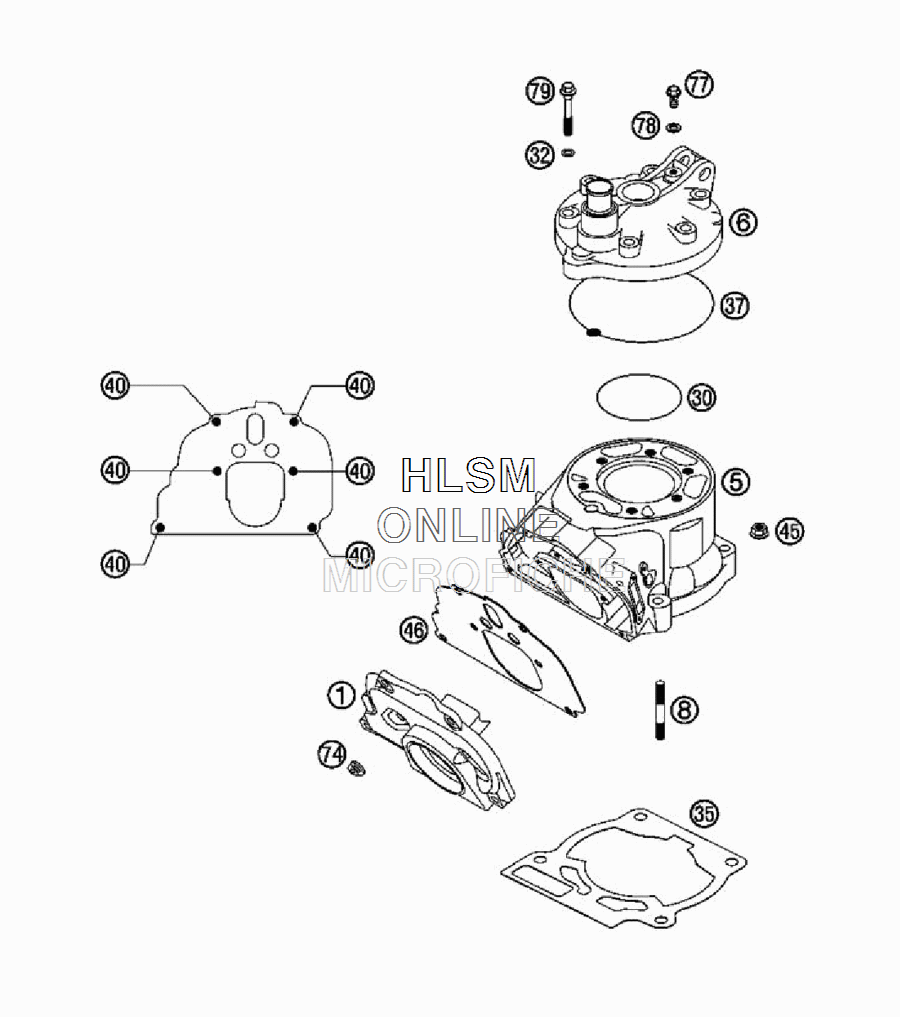

CYLINDER W/ CYLINDER HEAD для Ktm 125 SX - 2006 года выпуска`
-
№АртикулНазвание
-
150337001200 INTERMEDIATE FLANGEINTERMEDIATE FLANGE
-
550330005400 CYLINDERCYLINDER
-
650330006400 CYLINDER HEADCYLINDER HEAD
-
80835080273 STUD DIN0835-M 8X27STUD DIN0835-M 8X27
-
300770062020 O-RING 62,00X2,00 VITONO-RING 62,00X2,00 VITON
-
3250230032010 CU-SEAL RING 7,3 X 12 X 0,5CU-SEAL RING 7,3 X 12 X 0,5
-
3550330035020 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
3550330035025 CYLINDER BASE GASKET 0,25MMCYLINDER BASE GASKET 0,25MM
-
3550330035040 CYLINDER BASE GASKET 0,40MMCYLINDER BASE GASKET 0,40MM
-
3550330035050 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
3550330035075 CYLINDER BASE GASKET 0,75MMCYLINDER BASE GASKET 0,75MM
-
3750330137000 CYL.HEAD SEAL RINGCYL.HEAD SEAL RING
-
400015050203 HH COLLAR SCREW M 5X20 WS=8HH COLLAR SCREW M 5X20 WS=8
-
4550330045000 HH COLLAR NUT M 8 WS=12HH COLLAR NUT M 8 WS=12
-
4650337046200 INTERMED. GASKETINTERMED. GASKET
-
7451005074000 RETAINING PLATERETAINING PLATE
-
770015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
780603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
7950030079000 CYL. HEAD BOLT M 7X40 WS=10CYL. HEAD BOLT M 7X40 WS=10
