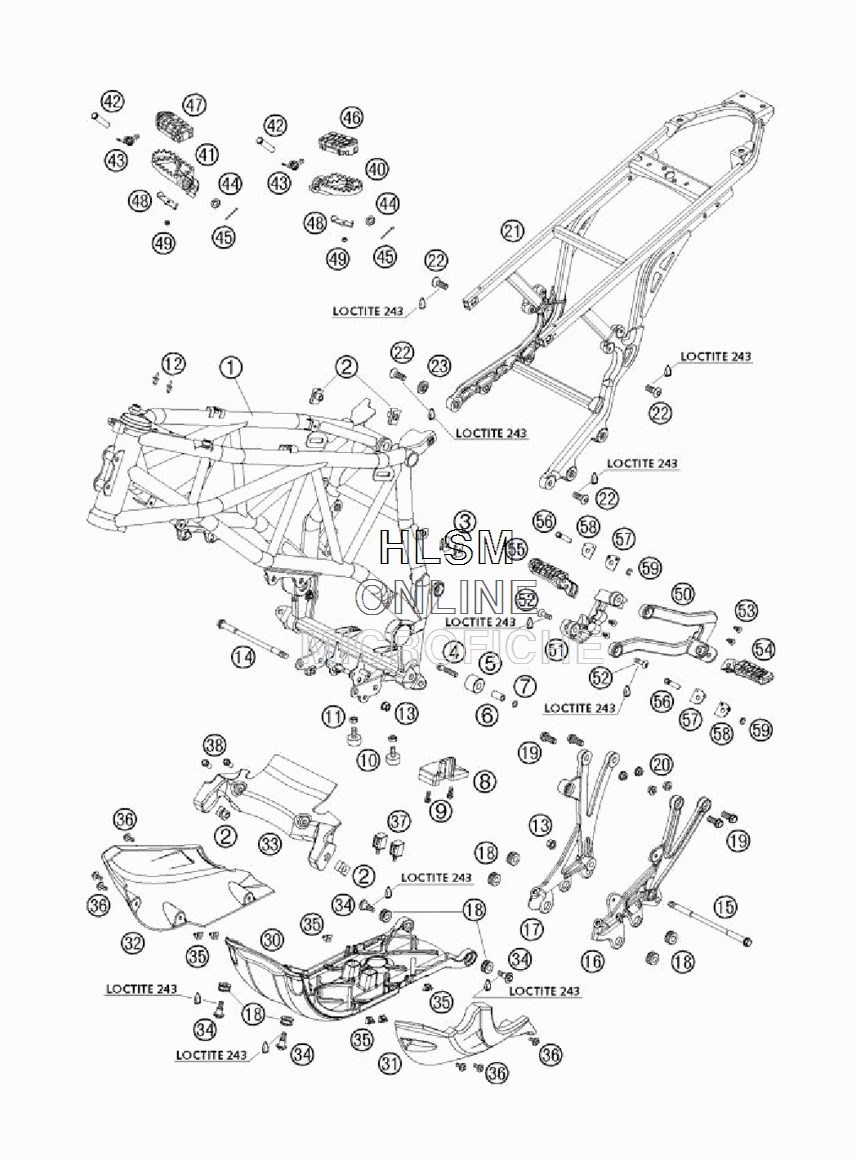

FRAME - SUB FRAME - ENGINE PROTECTOR для Ktm 950 ADVENTURE US - 2005 года выпуска

№

Артикул

Название
1

6000300100030 FRAME

FRAME

340 ₽
2

54603048000 RANGE CHANGE METAL NUT M8

RANGE CHANGE METAL NUT M8

930 ₽
3

54603048100 RANGE CHANGE METAL NUT M6

RANGE CHANGE METAL NUT M6

970 ₽
4

0015080403 HH COLLAR SCREW M 8X40 WS=10

HH COLLAR SCREW M 8X40 WS=10

820 ₽
5

58403060000 CHAIN ROLL 12X29X22,5

CHAIN ROLL 12X29X22,5

1 400 ₽
6

58403060065 BUSH CHAIN ROLL 8X12X23

BUSH CHAIN ROLL 8X12X23

700 ₽
7

36003014000 LOCK WASHER 8MM

LOCK WASHER 8MM

290 ₽
8

60004076000 CHAIN SLIDING BLOCK

CHAIN SLIDING BLOCK

0 ₽
9

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
10

58303070000 STOP RUBBER M8

STOP RUBBER M8

1 930 ₽
11

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
12

60003088000 PLASTIC CAP FOR M6

PLASTIC CAP FOR M6

240 ₽
13

54630044000 COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

680 ₽
14

60003013000 ENGINE BRAC. SCREW M10X172

ENGINE BRAC. SCREW M10X172

3 360 ₽
15

60003014000 ENGINE BRAC. SCREW M10X206

ENGINE BRAC. SCREW M10X206

4 090 ₽
16

60003005000 ENGINE SUPPORT LEFT

ENGINE SUPPORT LEFT

0 ₽
17

60003006000 ENGINE SUPPORT RIGHT

ENGINE SUPPORT RIGHT

36 950 ₽
18

60003098000 RUBBER SLEEVE

RUBBER SLEEVE

790 ₽
19

0015100243 HH COLLAR SCREW M10X24 WS=13

HH COLLAR SCREW M10X24 WS=13

470 ₽
20

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
21

60003002000 SUB FRAME ALUMINIUM

SUB FRAME ALUMINIUM

170 ₽
22

60003004027 FL.HEAD SCREW M10X1,25 L=27

FL.HEAD SCREW M10X1,25 L=27

820 ₽
23

60003001051 COLLAR BUSHING 10X15X25X4

COLLAR BUSHING 10X15X25X4

1 400 ₽
30

60003091000 UNDERRIDE PROTECTION CENTER

UNDERRIDE PROTECTION CENTER

26 340 ₽
31

60003092000 UNDERRIDE PROTECTION LEFT

UNDERRIDE PROTECTION LEFT

2 860 ₽
32

60003093000 UNDERRIDE PROTECTION RIGHT

UNDERRIDE PROTECTION RIGHT

3 010 ₽
33

60003094000 LOWER TANK HOLDER FRONT

LOWER TANK HOLDER FRONT

37 880 ₽
34

60003097000 COLLAR SCREW M8

COLLAR SCREW M8

970 ₽
35

60003095000 CAGE NUT M6 SL 4MM

CAGE NUT M6 SL 4MM

680 ₽
36

0014060153 HH COLLAR SCREW M 6X15 WS=8

HH COLLAR SCREW M 6X15 WS=8

560 ₽
37

60003096000 VIBRATION DAMPER

VIBRATION DAMPER

530 ₽
38

0015080163 HH COLLAR SCREW M 8X16 WS=10

HH COLLAR SCREW M 8X16 WS=10

760 ₽
40

59003040250 FOOT PED L/S SILVER

FOOT PED L/S SILVER

11 770 ₽
41

59003041250 FOOT PED R/S SILVER

FOOT PED R/S SILVER

11 770 ₽
42

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
43

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
44

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
45

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
46

60003040010 FOOTREST RUBBER FRONT L/S

FOOTREST RUBBER FRONT L/S

5 120 ₽
47

60003041010 FOOTREST RUBBER FRONT R/S

FOOTREST RUBBER FRONT R/S

5 120 ₽
48

60003044010 CLOSING PANEL FRONT L/S R/S

CLOSING PANEL FRONT L/S R/S

1 400 ₽
49

0985050003 SELF LOCKING NUT DIN0985-M 5

SELF LOCKING NUT DIN0985-M 5

290 ₽
50

60003048000 FOOTREST BRACKET REAR L/S

FOOTREST BRACKET REAR L/S

33 530 ₽
51

60003049000 FOOTREST BRACKET REAR R/S

FOOTREST BRACKET REAR R/S

33 530 ₽
52

54510052100 SPROCKET SCREW-AH M8X26 WS=6

SPROCKET SCREW-AH M8X26 WS=6

500 ₽
53

54403135000 PLASTIC CAP SFL10

PLASTIC CAP SFL10

380 ₽
54

60003050000 FOOTREST CPL. L/S REAR

FOOTREST CPL. L/S REAR

14 220 ₽
55

60003051000 FOOTREST CPL. R/S REAR

FOOTREST CPL. R/S REAR

14 310 ₽
56

60003044000 BOLT FOR FOOTREST REAR

BOLT FOR FOOTREST REAR

2 050 ₽
57

60003152000 ENGAGE PANEL FOOTREST L/S

ENGAGE PANEL FOOTREST L/S

1 140 ₽
58

60003052000 ENGAGE PANEL FOOTREST R/S

ENGAGE PANEL FOOTREST R/S

1 140 ₽
59

0799060003 TAB WASHER DIN6799-RS 6,0

TAB WASHER DIN6799-RS 6,0

90 ₽
