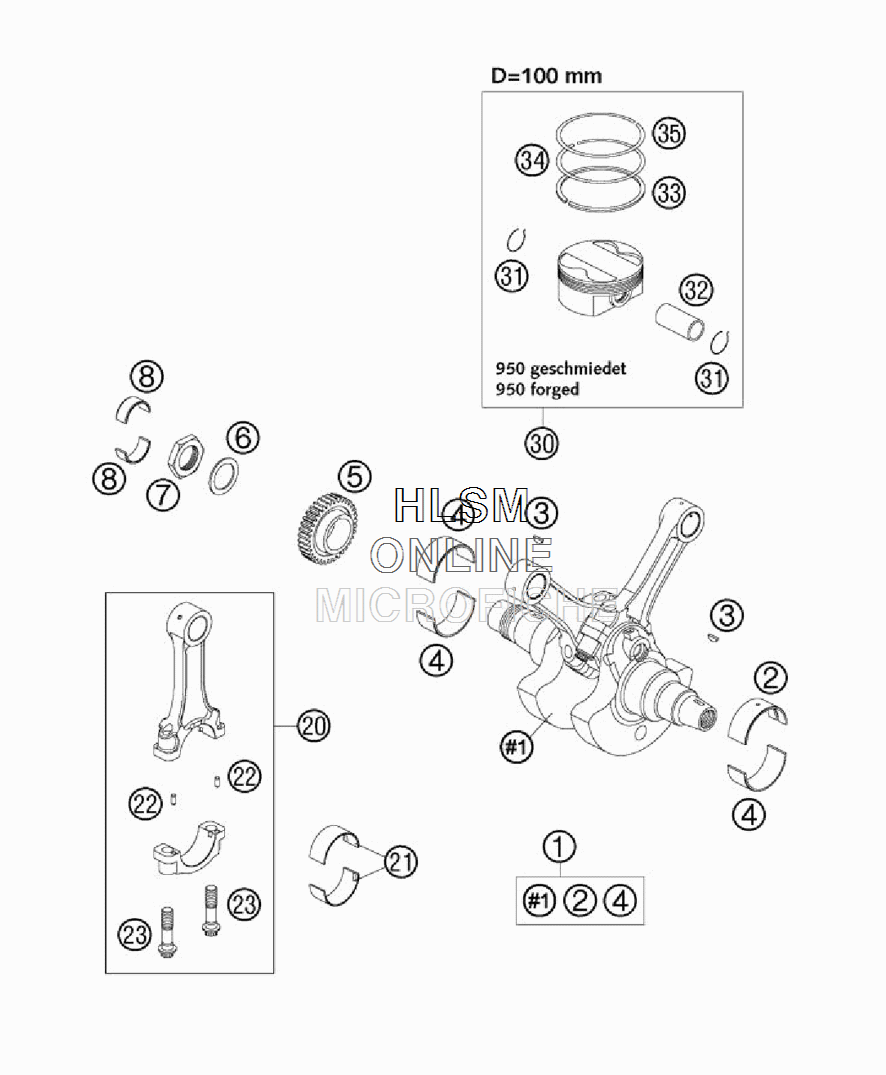

CRANKSHAFT W/ PISTON для Ktm 950 ADVENTURE US - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    60030018100 CRANKSHAFT CPL.
    CRANKSHAFT CPL.
  • 2
    60030082000 1 SPLIT BEAR.BUSH SIZE 1 RED
    SPLIT BEAR.BUSH SIZE 1 RED
  • 2
    60030082000 2 SPLIT BEAR.BUSH SIZE 2 BLUE
    SPLIT BEAR.BUSH SIZE 2 BLUE
  • 2
    60030082000 3 SPLIT BEAR.BUSH SIZE 3 YELL.
    SPLIT BEAR.BUSH SIZE 3 YELL.
  • 3
    0888040050 WOODRUFF KEY DIN6888 4X5X13
    WOODRUFF KEY DIN6888 4X5X13
  • 4
    60030182000 1 SPLIT BEAR.BUSH SIZE 1 RED
    SPLIT BEAR.BUSH SIZE 1 RED
  • 4
    60030182000 2 SPLIT BEAR.BUSH SIZE 2 BLUE
    SPLIT BEAR.BUSH SIZE 2 BLUE
  • 4
    60030182000 3 SPLIT BEAR.BUSH SIZE 3 YELL.
    SPLIT BEAR.BUSH SIZE 3 YELL.
  • 5
    60032023035 PRIMARY PINION 35 T
    PRIMARY PINION 35 T
  • 6
    60032009040 WASHER 33,2X46X2
    WASHER 33,2X46X2
  • 7
    60032009050 HH-NUT M33X1,5 L/S WS46
    HH-NUT M33X1,5 L/S WS46
  • 8
    60030026010 BUSHING BOWL 28X32X13
    BUSHING BOWL 28X32X13
  • 20
    60030013144 CONNECTING ROD CPL.
    CONNECTING ROD CPL.
  • 21
    60030013051 BUSH. BOWL PACK. SIZE 1 RED
    BUSH. BOWL PACK. SIZE 1 RED
  • 21
    60030013052 BUSH.BOWL PACK. SIZE 2 BLUE
    BUSH.BOWL PACK. SIZE 2 BLUE
  • 21
    60030013053 BUSH.BOWL PACK. SIZE 3 YELL.
    BUSH.BOWL PACK. SIZE 3 YELL.
  • 22
    60030015061 CYLINDER PIN
    CYLINDER PIN
  • 23
    60030015160 CONNECTING-ROD BOLT MJ10X1
    CONNECTING-ROD BOLT MJ10X1
  • 30
    60030007000I PISTON D=100
    PISTON D=100
  • 30
    60030007000II PISTON D=100
    PISTON D=100
  • 31
    58430074000 CIRCLIP 22 X 1,6
    CIRCLIP 22 X 1,6
  • 32
    58330833000 PISTON PIN 22 X 13 X 60
    PISTON PIN 22 X 13 X 60
  • 33
    60030032000 OIL SCRAPER RING D=100MM
    OIL SCRAPER RING D=100MM
  • 34
    60030031000 PISTON RING MIDDLE D=100MM
    PISTON RING MIDDLE D=100MM
  • 35
    60030030000 L-PISTON RING D=100MM 1,3MM
    L-PISTON RING D=100MM 1,3MM
