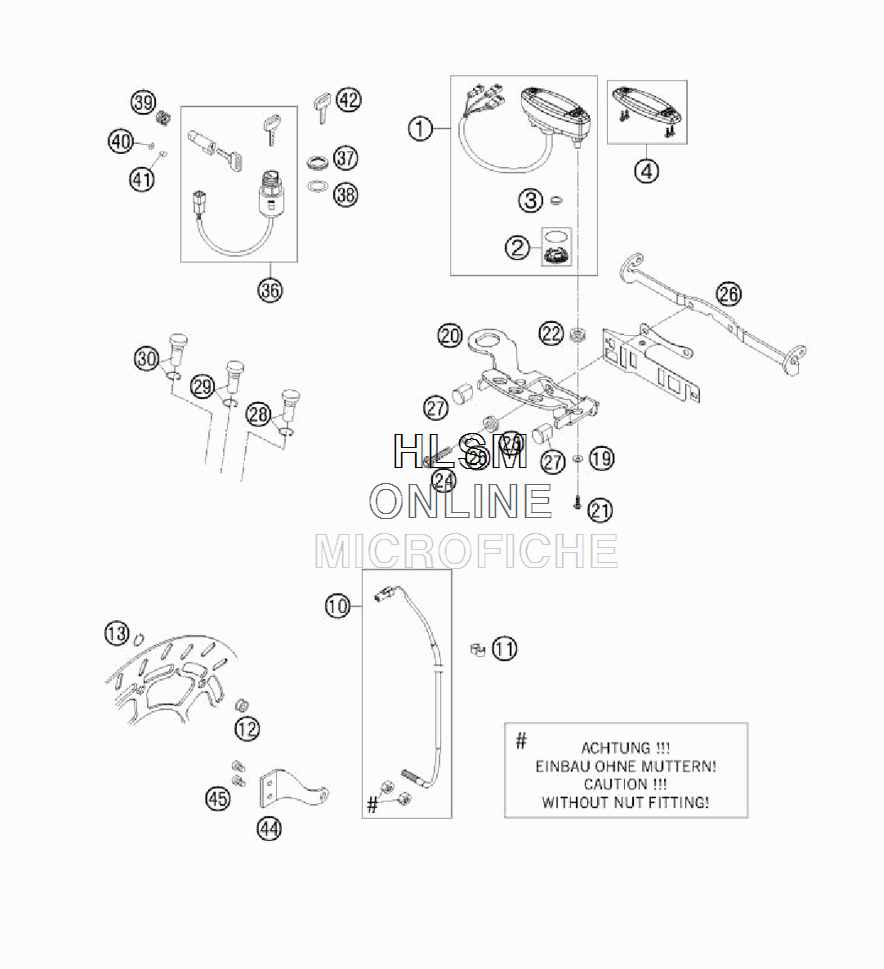

SPEEDOMETER для Ktm 625 SMC - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    54814069200 SPEEDOMETER KM/H F. 17" REPROGRAMMABLE: KM/H - MPH
    SPEEDOMETER KM/H F. 17" REPROGRAMMABLE: KM/H - MPH
  • 2
    54814069010 BATTERY COVER F. SPEEDOM.
    BATTERY COVER F. SPEEDOM.
  • 3
    58314068000 BATTERY F. SPEEDOM. M.A.E.
    BATTERY F. SPEEDOM. M.A.E.
  • 4
    54814069020 SPEEDOMETER TOP PART
    SPEEDOMETER TOP PART
  • 10
    54814068000 CABLE
    CABLE
  • 11
    55011022100 CLAMP D=6/8MM, BLACK
    CLAMP D=6/8MM, BLACK
  • 12
    58214069050 SENSOR MAGNET
    SENSOR MAGNET
  • 13
    0471009104 CIRCLIP DIN0471- 9X1 INOX
    CIRCLIP DIN0471- 9X1 INOX
  • 19
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 20
    58614060100 SPEEDOM.BRACKET
    SPEEDOM.BRACKET
  • 21
    0016050121 SCREW
    SCREW
  • 22
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 23
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 24
    0014060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 25
    58011039000 SPACER BUSHING 6,5 X 8 X 7
    SPACER BUSHING 6,5 X 8 X 7
  • 26
    58314033100 FLASHER BRACKET
    FLASHER BRACKET
  • 27
    58608003000 PLUG CAP KV8
    PLUG CAP KV8
  • 28
    58011024300 FLASHER INDICAT.LIGHT GREEN
    FLASHER INDICAT.LIGHT GREEN
  • 29
    58011021300 H.BEAM INDICATOR LIGHT BLUE
    H.BEAM INDICATOR LIGHT BLUE
  • 30
    58011023300 NEUTRAL INDIC. LIGHT GREEN
    NEUTRAL INDIC. LIGHT GREEN
  • 36
    58411066400 LOCK SYSTEM
    LOCK SYSTEM
  • 37
    50311066050 IGNITION LOCK NUT M24X1
    IGNITION LOCK NUT M24X1
  • 38
    58411066450 WASHER F. IGNITION LOCK
    WASHER F. IGNITION LOCK
  • 39
    12003007052 SPRING L=16MM
    SPRING L=16MM
  • 40
    0137030003 SPRING WASHER DIN137 B3
    SPRING WASHER DIN137 B3
  • 41
    45002040091 GROOVED NAIL RIVETO AF10
    GROOVED NAIL RIVETO AF10
  • 42
    40011166200 KEY BLANK 2-STROKE/HUSABERG
    KEY BLANK 2-STROKE/HUSABERG
  • 44
    58314052000 BRACKET F. SENSOR
    BRACKET F. SENSOR
  • 45
    0084040063 CYL.HEAD SCREW DIN0084-M 4X 6A
    CYL.HEAD SCREW DIN0084-M 4X 6A
