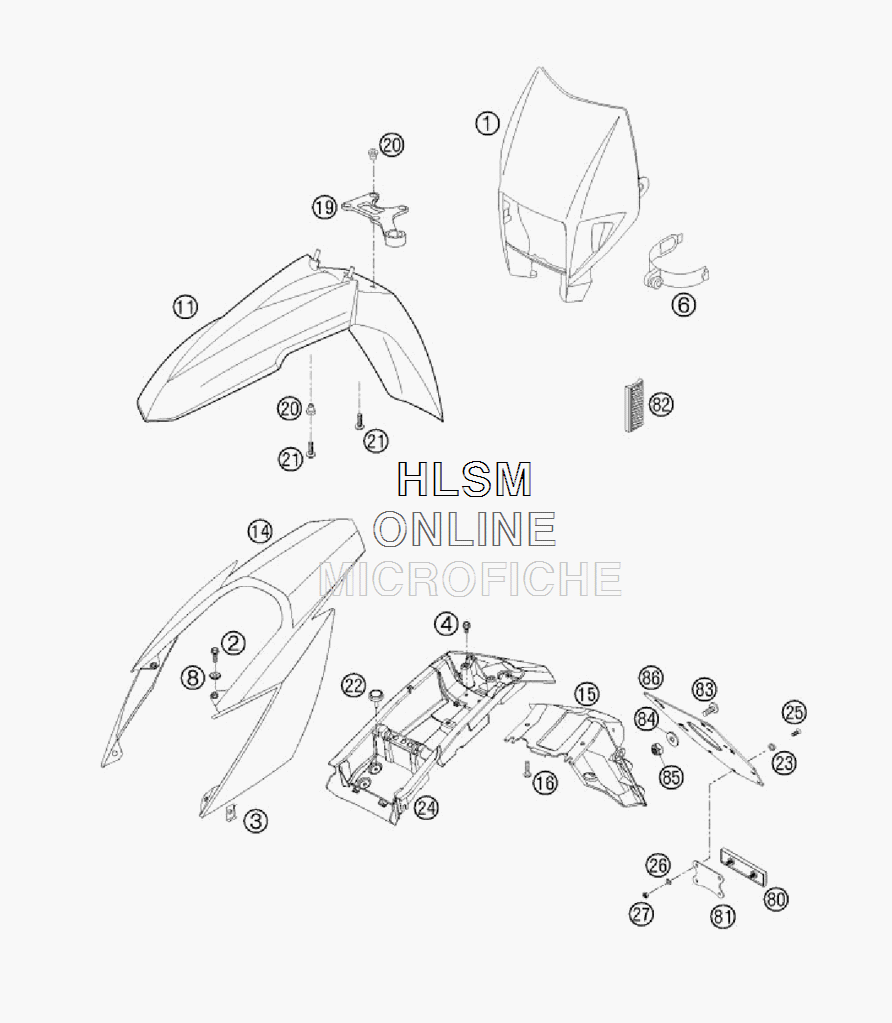

MASK W/ FENDERS для Ktm 625 SMC - 2005 года выпуска`
-
№АртикулНазвание
-
15030800100004 H.LIGHT MASK ORANGEH.LIGHT MASK ORANGE
-
20015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
40015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
650211086000 MASK RUBBER UFO WPMASK RUBBER UFO WP
-
850308053000 BUSHBUSH
-
115030801020004 FENDER FRONT SHORT ORANGEFENDER FRONT SHORT ORANGE
-
145860801400004 FENDER REAR ORANGEFENDER REAR ORANGE
-
1558608015000 NUMBER PLATE CARRIERNUMBER PLATE CARRIER
-
160017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
1959008019000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
2058408009050 SPACER BUSHING FRONT FENDERSPACER BUSHING FRONT FENDER
-
210014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
2260006001021 DISTANCE RUBBER AIRBOXDISTANCE RUBBER AIRBOX
-
2340006006000 WASHER 6MMWASHER 6MM
-
2458608019000 REAR BASEREAR BASE
-
250966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
260125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
270985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
8058412080000 REFLECTOR REDREFLECTOR RED
-
8158412080050 BRACKETBRACKET
-
8258412080100 REFLECTOR YELLOWREFLECTOR YELLOW
-
830014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
840021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
850985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
8660012081100 LICENCE NUMBER PLATELICENCE NUMBER PLATE
