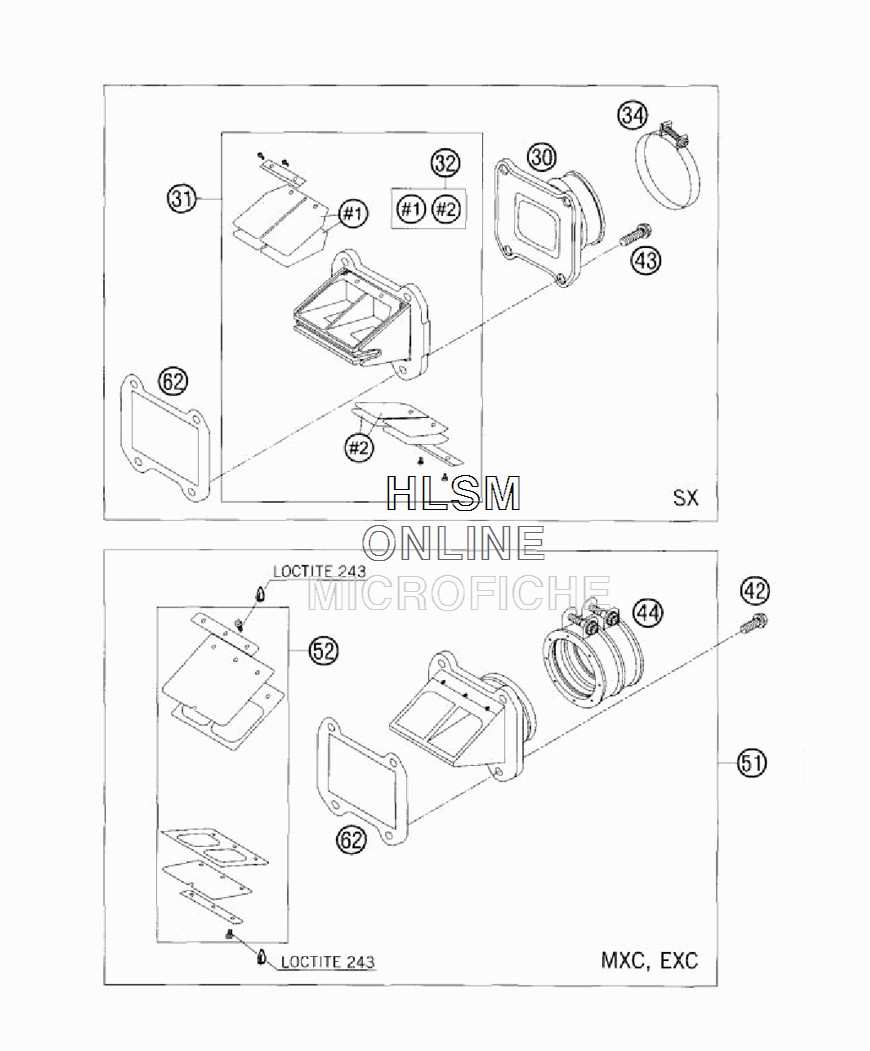

REED VALVE CASE для Ktm 300 MXC - 2005 года выпуска`
-
№АртикулНазвание
-
3054830050000 INTAKE FLANGE V-FORCEINTAKE FLANGE V-FORCE
-
3154830051144 REED VALVE ASSY V-FORCE CPL.REED VALVE ASSY V-FORCE CPL.
-
3254830052000 REED VALVE SET V-FORCEREED VALVE SET V-FORCE
-
3454330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
420015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
430015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
4454736044000 RUBBER BOOT CPL. BOYESENRUBBER BOOT CPL. BOYESEN
-
5154830051044 REED VALVE ASSY BOYESEN CPL.REED VALVE ASSY BOYESEN CPL.
-
5254730052000 REED VALVE CPL. BOYESENREED VALVE CPL. BOYESEN
-
6254830062100 GASKET REED VALVE CASEGASKET REED VALVE CASE
