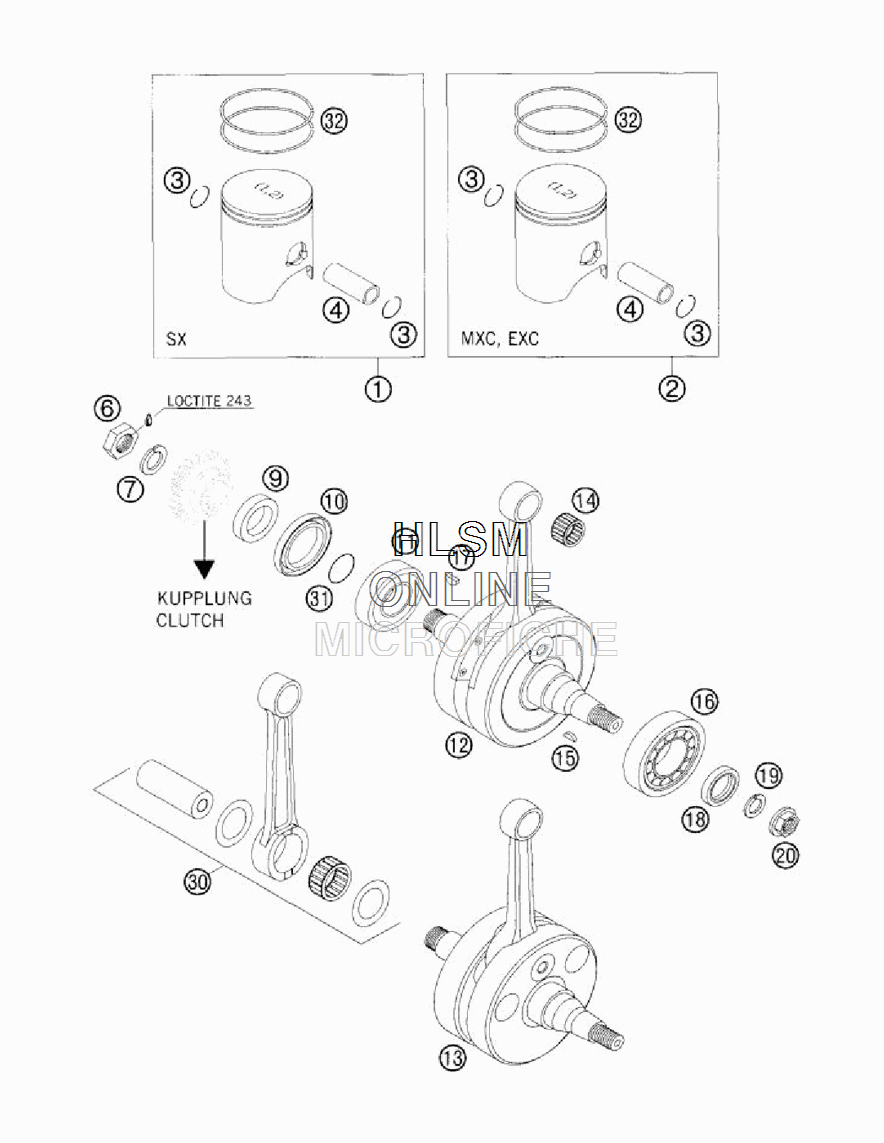

CRANKSHAFT W/ PISTON для Ktm 300 MXC - 2005 года выпуска

  • №
    Артикул
    Название
  • 2
    54830107000I PISTON I CPL.
    PISTON I CPL.
  • 2
    54830107000II PISTON II CPL.
    PISTON II CPL.
  • 3
    54030074000 WIRE LOCK RING C18X1,5
    WIRE LOCK RING C18X1,5
  • 4
    54630233000 PISTON PIN 18X55,8
    PISTON PIN 18X55,8
  • 6
    54630029000 HEX.NUT L/SH M18X1,5
    HEX.NUT L/SH M18X1,5
  • 7
    58132072000 LOCK WASHER VSK 18
    LOCK WASHER VSK 18
  • 9
    54830016000 SPACER SLEEVE 28X38X10
    SPACER SLEEVE 28X38X10
  • 10
    0760385273 SHAFT SEAL RING 38X52X7BTSL
    SHAFT SEAL RING 38X52X7BTSL
  • 11
    0625623204 BALL BEARING 32X65X17 NTN
    BALL BEARING 32X65X17 NTN
  • 13
    54830118000 CRANKSHAFT
    CRANKSHAFT
  • 14
    54430034000 NEEDLE BEARING KBK 18X22X20
    NEEDLE BEARING KBK 18X22X20
  • 15
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 16
    56530123200 CYLIND.ROL.BEAR. NJ207ET2XCS42
    CYLIND.ROL.BEAR. NJ207ET2XCS42
  • 17
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 18
    0760253570 SHAFT SEAL RING 25X35X7 BTSL
    SHAFT SEAL RING 25X35X7 BTSL
  • 19
    50230029012 LOCKING RING VSK 12
    LOCKING RING VSK 12
  • 20
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 30
    54830015044 CONROD REP KIT
    CONROD REP KIT
  • 31
    0770250015 O-RING 25,00X1,50 NBR 70
    O-RING 25,00X1,50 NBR 70
  • 32
    54830132000 R-RING 72,0MM
    R-RING 72,0MM
