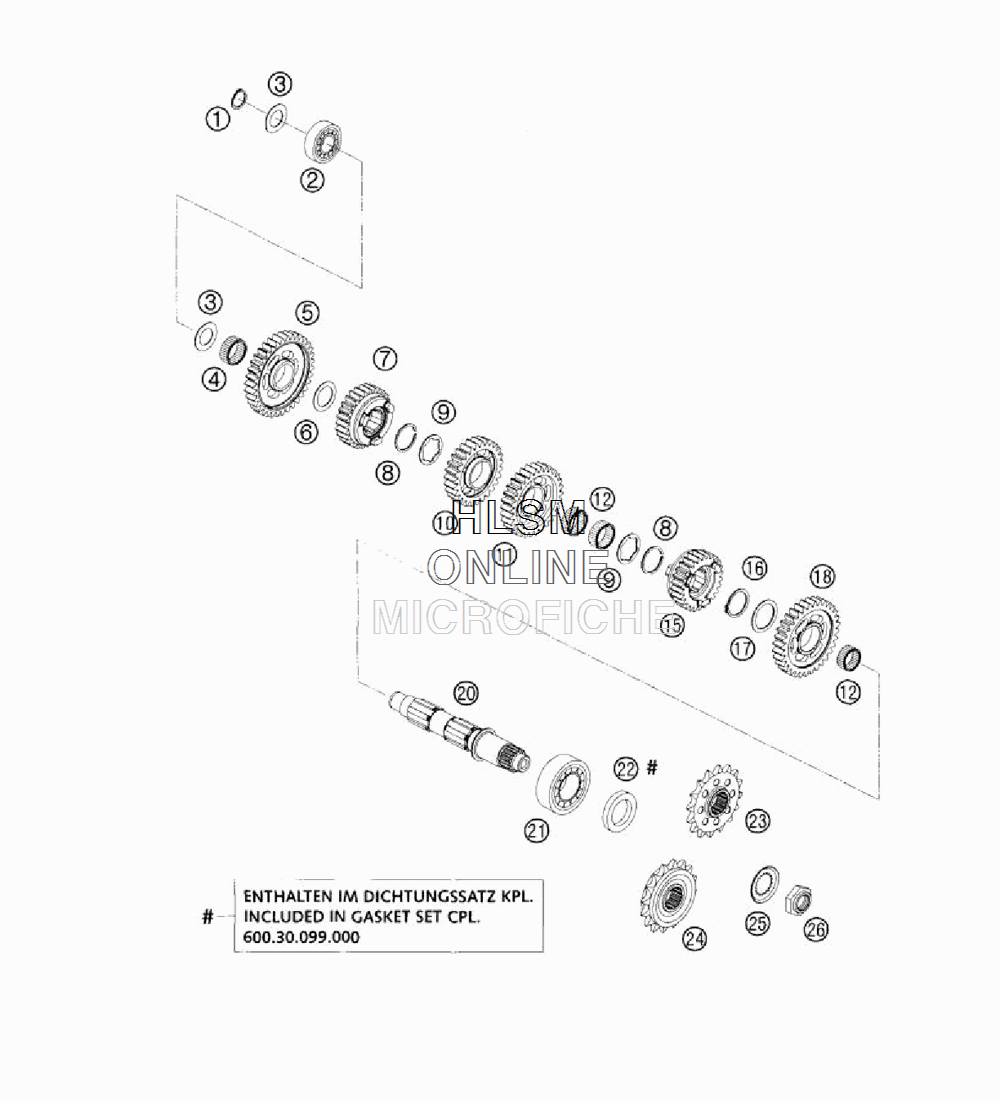

TRANSMISSION - COUNTER SHAFT для Ktm 950 Adventure - 2004 года выпуска`
-
№АртикулНазвание
-
10471200120 CIRCLIP DIN471 20X1,2CIRCLIP DIN471 20X1,2
-
20625062040 BALL BEARING 6204 DU LL C3BALL BEARING 6204 DU LL C3
-
360033043000 STOP DISK 20,2 X 34 X 1STOP DISK 20,2 X 34 X 1
-
40405242813 NEEDLE BEAR. K 24X28X13 TNNEEDLE BEAR. K 24X28X13 TN
-
560033011000 IDLER GEAR 1.G "600 1535"IDLER GEAR 1.G "600 1535"
-
660033044000 STOP DISK 24,3/35,75/1STOP DISK 24,3/35,75/1
-
760033015000 SLIDING GEAR 5.G "600 5527"SLIDING GEAR 5.G "600 5527"
-
80417300151 LOCK RING WS 30LOCK RING WS 30
-
960033045000 STOP DISK 26,2/36/1,5STOP DISK 26,2/36/1,5
-
1060033014000 IDLER GEAR 4.G "600 4527"IDLER GEAR 4.G "600 4527"
-
1160033013000 IDLER GEAR 3.G "600 3530"IDLER GEAR 3.G "600 3530"
-
120405263113 NEEDLE BEAR. K 26-31-13NEEDLE BEAR. K 26-31-13
-
1560033016000 SLIDING GEAR 6.G "600 6526"SLIDING GEAR 6.G "600 6526"
-
160471300151 CIRCLIP DIN0471-30X1,5 NIROCIRCLIP DIN0471-30X1,5 NIRO
-
1760033046000 STOP DISK 30,2/39/1,5STOP DISK 30,2/39/1,5
-
1860033012000 IDLER GEAR 2.G "600 2532"IDLER GEAR 2.G "600 2532"
-
2060033010000 COUNTERSHAFTCOUNTERSHAFT
-
2150330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46CYL.ROLLER BEAR.NJ206 ET2XCS46
-
220760304772 SH.SEAL RING 30X47X7 BSL VITONSH.SEAL RING 30X47X7 BSL VITON
-
2360033029016 CHAIN SPROCKET 16-TCHAIN SPROCKET 16-T
-
2360033029017 CHAIN SPROCKET 17-TCHAIN SPROCKET 17-T
-
2460033129017 CHAIN SPROCKET 17-T DAMPEDCHAIN SPROCKET 17-T DAMPED
-
2560033034000 SECURING PLATE TOOTHEDSECURING PLATE TOOTHED
-
2660033035000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
