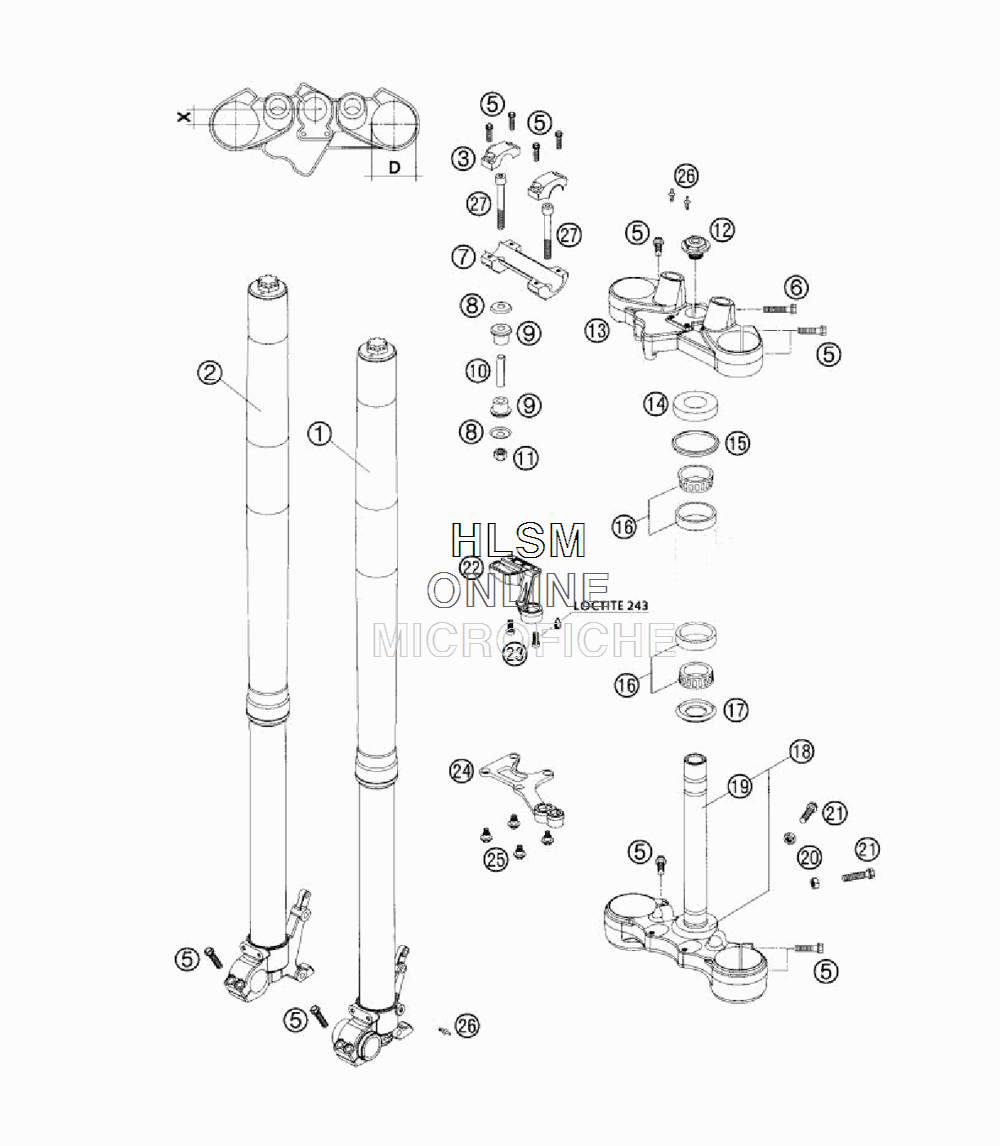

FRONT FORK - 48 для Ktm 950 Adventure - 2004 года выпуска`
-
№АртикулНазвание
-
11418Y756LS FORK LEG L/S WP48FORK LEG L/S WP48
-
21418Y756RS FORK LEG R/S WP48FORK LEG R/S WP48
-
359001038200 HANDLEBAR CLAMP D=28MMHANDLEBAR CLAMP D=28MM
-
50015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
60015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
759001039100 HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
856401042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
956401040000 RUBBER BUSHINGRUBBER BUSHING
-
1056401041100 SPACER TUBE 10,2X12X44SPACER TUBE 10,2X12X44
-
110982100003 SELF LOCK.NUT DIN0982-M10 HIGHSELF LOCK.NUT DIN0982-M10 HIGH
-
1254801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
1360001034018 TOP TRIPLE CLAMP X=18MM/D=54MMTOP TRIPLE CLAMP X=18MM/D=54MM
-
1454201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
1554601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
1654201081000 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
1754601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
1860001032018 BOT.TRIPLE CLAMP CPL. D=60MMBOT.TRIPLE CLAMP CPL. D=60MM
-
1960001033000 FORK TUBE LC8FORK TUBE LC8
-
200934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
210933080253 HH SCREW DIN0933-M 8X25HH SCREW DIN0933-M 8X25
-
2260001079000 BRAKE HOSE GUIDE TOPBRAKE HOSE GUIDE TOP
-
230012060164 AH SCREW DIN6912 M6X16 SLAH SCREW DIN6912 M6X16 SL
-
2460008019000 BRAKE HOSE GUIDE LOWERBRAKE HOSE GUIDE LOWER
-
2559001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
2660003088000 PLASTIC CAP FOR M6PLASTIC CAP FOR M6
-
270984100703 AH SCREW DIN6912-M10X70AH SCREW DIN6912-M10X70
