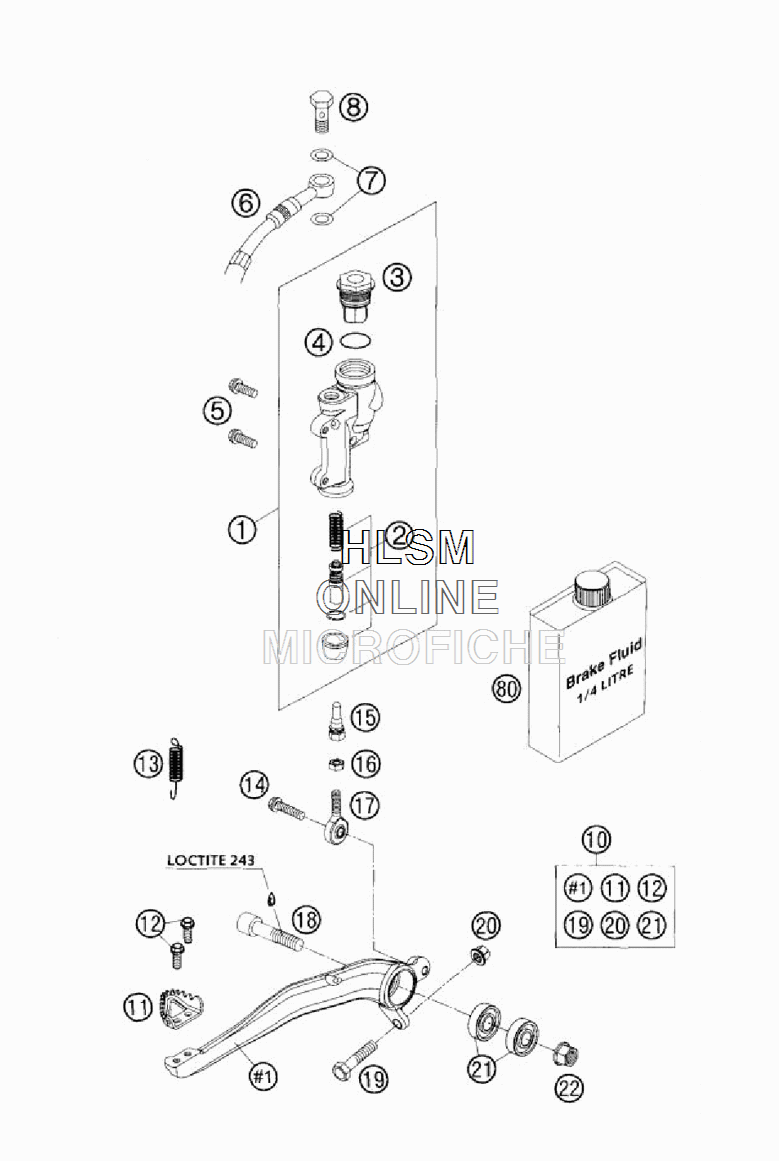

REAR BRAKE CONTROL для Ktm 525 SMR - 2004 года выпуска`

№

Артикул

Название
1

54813060100 REAR BRAKE CYLINDER CPL.

REAR BRAKE CYLINDER CPL.

80 280 ₽
2

54813061000 REPAIR KIT PISTON 13MM

REPAIR KIT PISTON 13MM

14 780 ₽
3

54813062100 REAR BRAKE CYL. COVER CPL.

REAR BRAKE CYL. COVER CPL.

12 180 ₽
4

54813063000 FOOT-BRAKE CYL. GASKET

FOOT-BRAKE CYL. GASKET

2 540 ₽
5

0015060123 HH COLLAR SCREW M 6X12 WS=8

HH COLLAR SCREW M 6X12 WS=8

500 ₽
6

54813070000 BRAKE HOSE REAR 655MM

BRAKE HOSE REAR 655MM

25 350 ₽
7

42013226000 CU-SEAL RING DIN7603-10X16X1

CU-SEAL RING DIN7603-10X16X1

440 ₽
8

54813020100 HOLLOW SCREW BLACK M10X1X19

HOLLOW SCREW BLACK M10X1X19

2 660 ₽
10

54813050044 FOOT BRAKE LEVER CPL.

FOOT BRAKE LEVER CPL.

32 650 ₽
11

54813051000 STEP PLATE FOR BRAKE LEVER

STEP PLATE FOR BRAKE LEVER

2 540 ₽
12

0015050123 HH COLLAR SCREW M 5X12 WS=8

HH COLLAR SCREW M 5X12 WS=8

500 ₽
13

54603062000 RETURN SPRING FOR BRAKE LEVER

RETURN SPRING FOR BRAKE LEVER

740 ₽
14

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
15

54813056000 PUSH ROD L=28MM

PUSH ROD L=28MM

3 890 ₽
16

0934060003 HEXAGON NUT DIN0934-M 6

HEXAGON NUT DIN0934-M 6

120 ₽
17

54813055000 SWIVEL HEAD KA6

SWIVEL HEAD KA6

4 590 ₽
18

0912100406 AH SCREW DIN6912 M10X40 10.9

AH SCREW DIN6912 M10X40 10.9

850 ₽
19

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
20

46030045000 COLLAR NUT M8 WS=10

COLLAR NUT M8 WS=10

2 100 ₽
21

0625060001 BALL BEARING 6000/C3

BALL BEARING 6000/C3

3 710 ₽
22

54630044000 COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

680 ₽
80

306054 BRAKE FLUID DOT 5.1

BRAKE FLUID DOT 5.1

0 ₽
