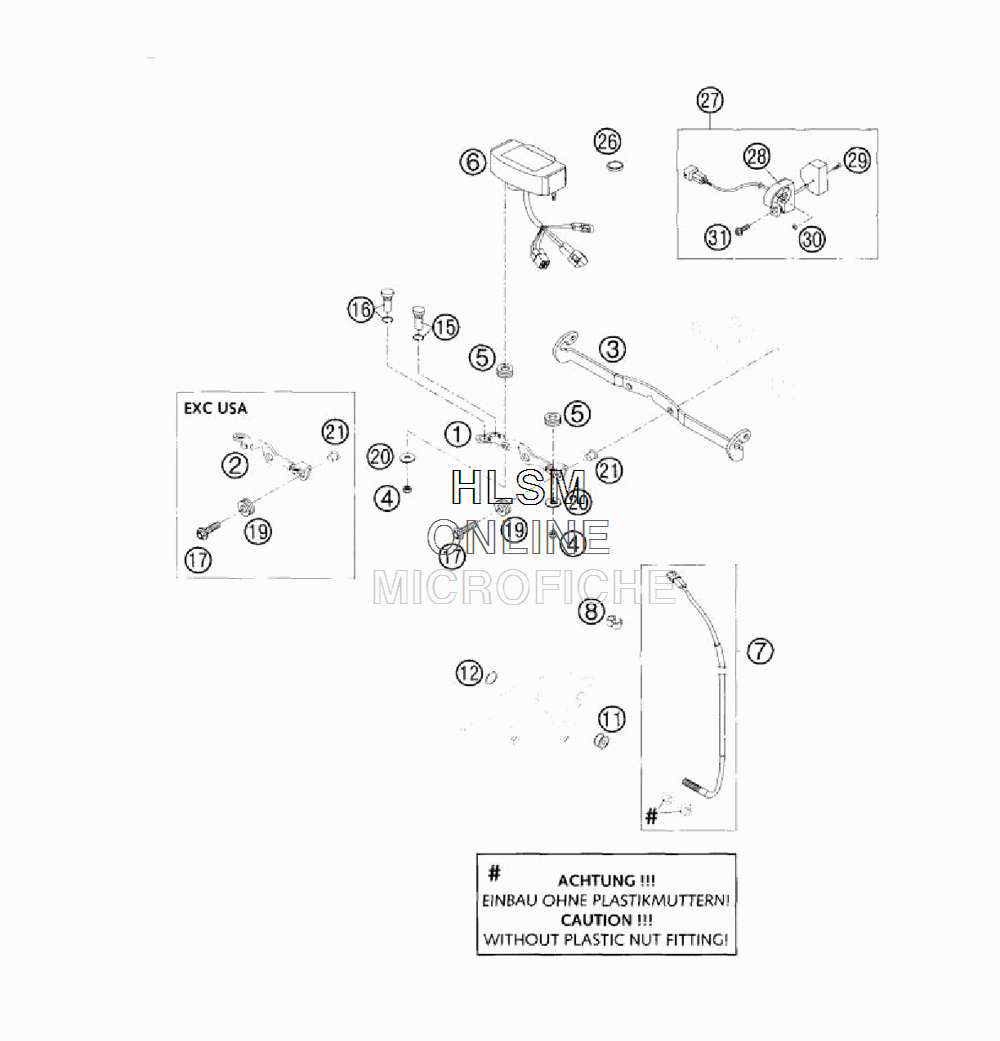

SPEEDOMETER M.A.E для Ktm 525 EXC RFS - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    58314060100 SPEEDOM. BRACKET F. MAE ALU
    SPEEDOM. BRACKET F. MAE ALU
  • 2
    50314060100 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 3
    58314033100 FLASHER BRACKET
    FLASHER BRACKET
  • 4
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 5
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 6
    58314069100 SPEEDOMETER KM/H F. 21
    SPEEDOMETER KM/H F. 21
  • 6
    58314069300 SPEEDOMETER MPH F. 21
    SPEEDOMETER MPH F. 21
  • 7
    58314069251 CABLE FOR DIGITAL SPEEDOM.
    CABLE FOR DIGITAL SPEEDOM.
  • 8
    55011022100 CLAMP 6/8MM BLACK
    CLAMP 6/8MM BLACK
  • 11
    54814069050 MAGNET FOR DIGITAL SPEEDOM.
    MAGNET FOR DIGITAL SPEEDOM.
  • 12
    0471009104 CIRCLIP DIN0471- 9X1 INOX
    CIRCLIP DIN0471- 9X1 INOX
  • 15
    58011021300 H.BEAM INDICATOR LIGHT BLUE
    H.BEAM INDICATOR LIGHT BLUE
  • 16
    58011024300 FLASHER INDICATLIGHT GREEN
    FLASHER INDICATLIGHT GREEN
  • 17
    0014060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 19
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 20
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 21
    58314060050 SPACER BUSH. F. SPEEDOMET.BRA.
    SPACER BUSH. F. SPEEDOMET.BRA.
  • 26
    58314068000 BATTERY F. SPEEDOM. M.A.E. (TYPE CR 2430)
    BATTERY F. SPEEDOM. M.A.E. (TYPE CR 2430)
  • 27
    50314068000 TRIPMASTER-SWITCH W CLAMP
    TRIPMASTER-SWITCH W CLAMP
  • 28
    50314068050 CLAMP FOR TRIPMASTER-SWITCH
    CLAMP FOR TRIPMASTER-SWITCH
  • 29
    0965040125 FLAT HEAD SCREW DIN0966-M 4X20
    FLAT HEAD SCREW DIN0966-M 4X20
  • 30
    0934040003 HEXAGON NUT DIN0934-M 4
    HEXAGON NUT DIN0934-M 4
  • 31
    0017060203 SPECIAL SCREW T60 6X20 WS=6
    SPECIAL SCREW T60 6X20 WS=6
