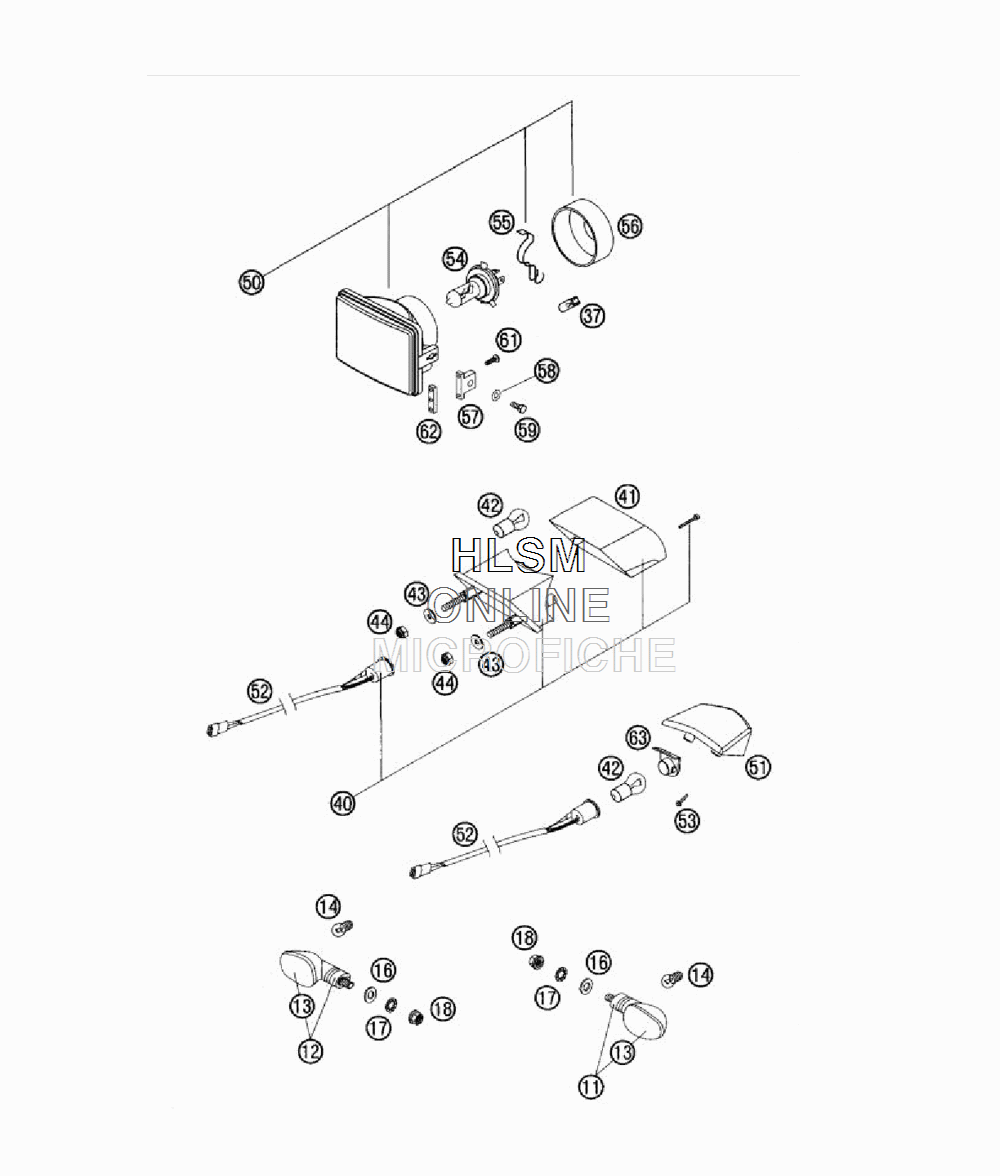

HEADLIGHT W/ REAR LIGHT - FLASHER для Ktm 525 EXC RFS - 2004 года выпуска
-
№АртикулНазвание
-
115841402500030 FLASHER CPL.FRONT L/S REAR R/S (BLACK)FLASHER CPL.FRONT L/S REAR R/S (BLACK)
-
125841402600030 FLASHER CPL.FRONT R/S REAR L/S (BLACK)FLASHER CPL.FRONT R/S REAR L/S (BLACK)
-
1358414028000 FLASHER LENS L/S & R/SFLASHER LENS L/S & R/S
-
1444111015100 BULB 12V 10W (BA15S)BULB 12V 10W (BA15S)
-
160125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
170797100003 LOCK WASHER DIN6797-110,5 ZILOCK WASHER DIN6797-110,5 ZI
-
1858414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
3749011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
4050314040100 REAR LIGHT CPL. (NUMBER PLATE CARRIER LONG)REAR LIGHT CPL. (NUMBER PLATE CARRIER LONG)
-
4150314041100 REAR LIGHT LENSREAR LIGHT LENS
-
4258414042000 BULB 12V 21/5W (BAY15S)REINFO.BULB 12V 21/5W (BAY15S)REINFO.
-
430021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
440985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
5059014002000 HEAD LIGHT 186(RI)"1003202 R" (RIGHT TRAFFIC - USA+EU)HEAD LIGHT 186(RI)"1003202 R" (RIGHT TRAFFIC - USA+EU)
-
5059014002100 HEAD LIGHT 186(LE)"1003203 L" (LEFT TRAFFIC - GB+AUS)HEAD LIGHT 186(LE)"1003203 L" (LEFT TRAFFIC - GB+AUS)
-
5150314041200 REAR LIGHT LENS 04 (NUMBER PLATE CARRIER SHORT)REAR LIGHT LENS 04 (NUMBER PLATE CARRIER SHORT)
-
5250311076000 WIRING HARNESS REARWIRING HARNESS REAR
-
530017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
5454611038012 BULB HS1 12V 35/35W WHITEBULB HS1 12V 35/35W WHITE
-
5549011436100 BULB HOLDERBULB HOLDER
-
5650211537000 RUBBER CAPRUBBER CAP
-
5758414010100 HEAD LIGHT SUPPORTHEAD LIGHT SUPPORT
-
580125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
590933060203 HH SCREW DIN0933-M 6X20HH SCREW DIN0933-M 6X20
-
610016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
6250211410050 HEADLIGHT BRACKETHEADLIGHT BRACKET
-
6354811076050 LAMP HOLDERLAMP HOLDER
