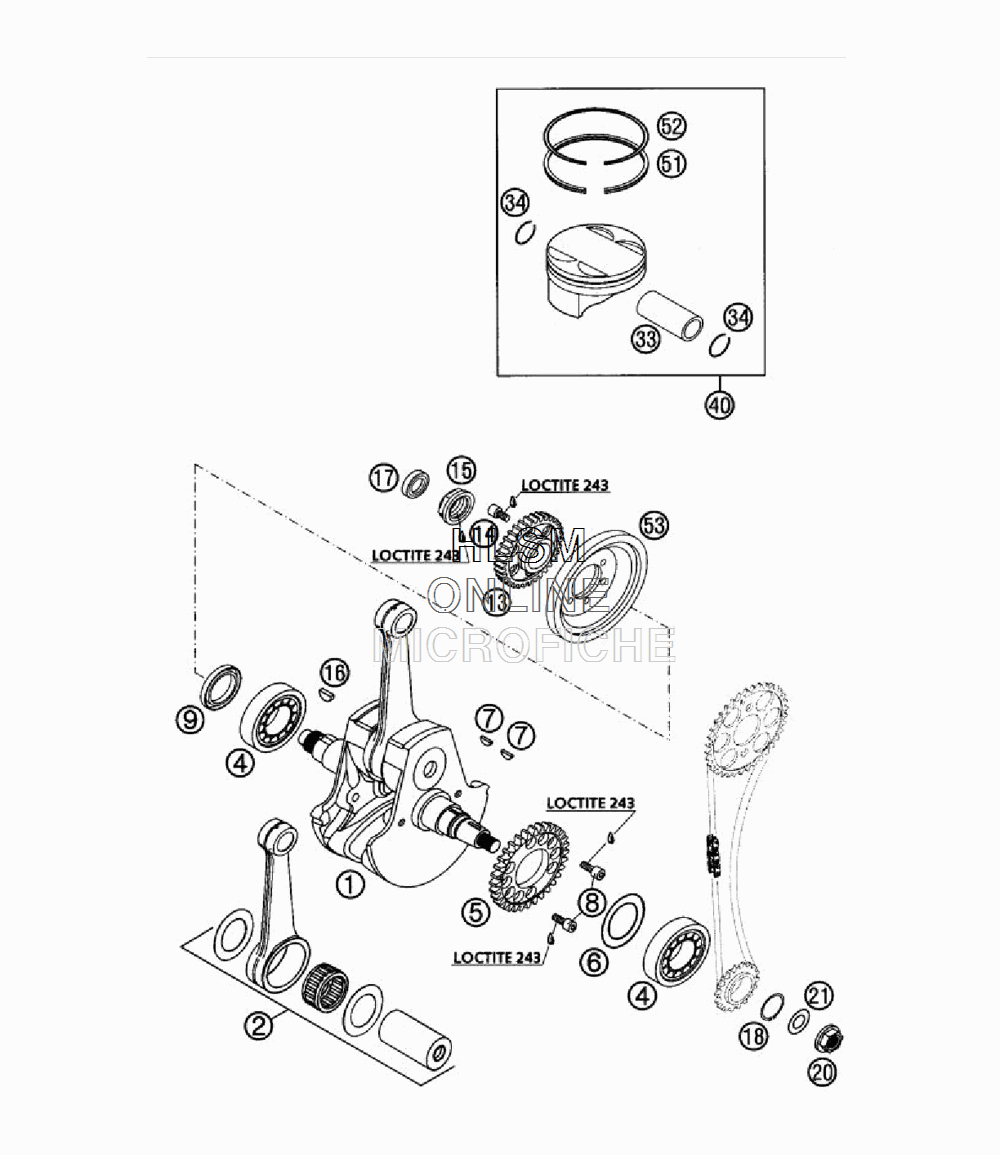

CRANKSHAFT W/ PISTON для Ktm 450 SMR - 2004 года выпуска`

№

Артикул

Название
1

59430018000 CRANKSH. STROKE=63,4 03 (WITHOUT WASHER)

CRANKSH. STROKE=63,4 03 (WITHOUT WASHER)

170 ₽
2

59430015044 CON.ROD REP. SET

CON.ROD REP. SET

130 870 ₽
4

50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46

CYL.ROLLER BEAR.NJ206 ET2XCS46

22 490 ₽
5

59030055000 DRIVE GEAR 32-T F.BALANC.SHAFT

DRIVE GEAR 32-T F.BALANC.SHAFT

29 730 ₽
6

56030081000 THRUST WASHER 30,5X45X0,10

THRUST WASHER 30,5X45X0,10

120 ₽
6

56030081100 THRUST WASHER 30,7X47X0,15

THRUST WASHER 30,7X47X0,15

270 ₽
6

56030081200 THRUST WASHER 30,5X45X0,30

THRUST WASHER 30,5X45X0,30

350 ₽
7

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
8

0984060162 AH SCREW DIN7984-M 6X16

AH SCREW DIN7984-M 6X16

30 ₽
9

0760304772 SH.SEAL RING 30X47X7 BSL VITON

SH.SEAL RING 30X47X7 BSL VITON

5 490 ₽
13

59032000033 PRIMARY GEAR 33-T

PRIMARY GEAR 33-T

29 560 ₽
14

0912060106 AH SCREW DIN0912-M 6X10 10.9

AH SCREW DIN0912-M 6X10 10.9

120 ₽
15

59030029100 HH NUR M20X1,5 WS=27 LEFT

HH NUR M20X1,5 WS=27 LEFT

1 810 ₽
16

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
17

0760142460 SHAFT SEAL RING 14X24X6 B

SHAFT SEAL RING 14X24X6 B

2 430 ₽
18

0471250120 CIRCLIP DIN0471-25X1,2

CIRCLIP DIN0471-25X1,2

290 ₽
20

49030021000 COLLAR NUT M12X1 R/S

COLLAR NUT M12X1 R/S

2 660 ₽
21

0137120000 SPRING WASHER DIN0137-B12

SPRING WASHER DIN0137-B12

120 ₽
33

59030033000 PISTON PIN BOLT 20X15,8/12X50

PISTON PIN BOLT 20X15,8/12X50

5 870 ₽
34

59430074000 CIRCLIP 20 X 1,6

CIRCLIP 20 X 1,6

2 030 ₽
40

59430107000I PISTON CPL.450 SX D=95 S1.1

PISTON CPL.450 SX D=95 S1.1

119 180 ₽
40

59430107000II PISTON CPL.450 SX D=95 SI.2

PISTON CPL.450 SX D=95 SI.2

0 ₽
51

58030631000 OIL SCRAPER RING 95MM

OIL SCRAPER RING 95MM

5 870 ₽
52

59030032000 RECTANGULAR RING 95/87,2X1,25

RECTANGULAR RING 95/87,2X1,25

9 960 ₽
53

59430070000 FLYWHEEL MASS

FLYWHEEL MASS

14 720 ₽
