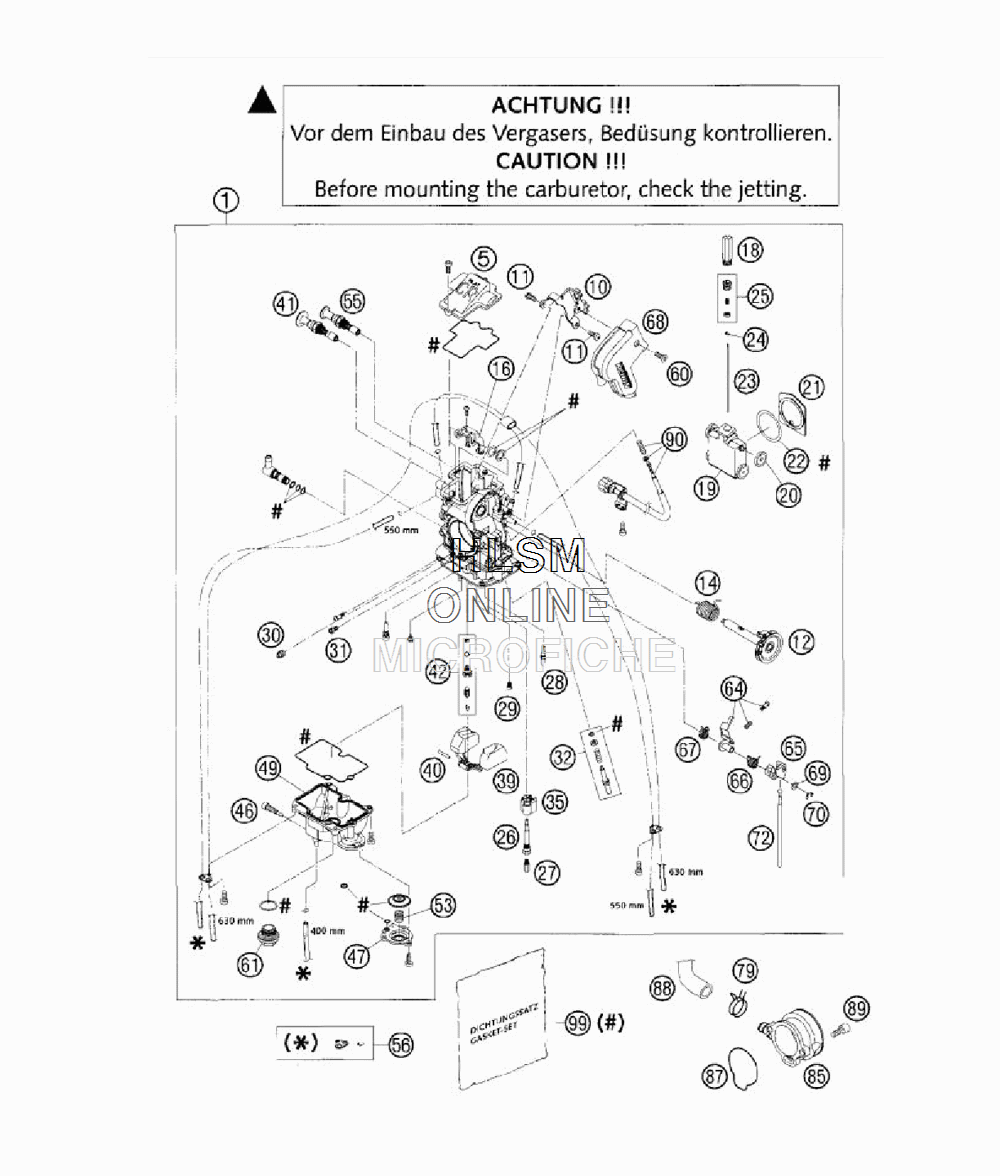

CARBURETOR KEIHIN FCR-MX 41 для Ktm 450 SMR - 2004 года выпуска`
-
№АртикулНазвание
-
159431001000 CARBURETOR FCR-MX41CARBURETOR FCR-MX41
-
557331027000 CARBURETOR COVERCARBURETOR COVER
-
1057331080000 BRACKET PLATE FOR THR. CABLEBRACKET PLATE FOR THR. CABLE
-
1157331055000 SCREW M 5 X 8SCREW M 5 X 8
-
1257331046000 THROTTLE SHAFT CPL.THROTTLE SHAFT CPL.
-
1457331046050 COIL SPRING THROTTLE SHAFTCOIL SPRING THROTTLE SHAFT
-
1657331035051 LINK ARM THROTTLE VALVE CPL.LINK ARM THROTTLE VALVE CPL.
-
1859031029010 SLIDE STOPSLIDE STOP
-
1957331035000 THROTTLE VALVE CPL.THROTTLE VALVE CPL.
-
2059031035050 BUSHING THROTTLE VALVEBUSHING THROTTLE VALVE
-
2157331035153 GASKET PLATE THROTTLE VALVE 04GASKET PLATE THROTTLE VALVE 04
-
2259031035052 GASKET WASHER THROTTLE VALVEGASKET WASHER THROTTLE VALVE
-
2359031023200 JET NEEDLE KEIHIN OBDVTJET NEEDLE KEIHIN OBDVT
-
23590310340VR JET NEEDLE KEIHIN OBDVRJET NEEDLE KEIHIN OBDVR
-
23590310340TM JET NEEDLE KEIHIN OBDTMJET NEEDLE KEIHIN OBDTM
-
2359031034000 JET NEEDLE KEIHIN OBDTNJET NEEDLE KEIHIN OBDTN
-
2359031034400 JET NEEDLE KEIHIN OBDTPJET NEEDLE KEIHIN OBDTP
-
2359031034500 JET NEEDLE KEIHIN OBDTQJET NEEDLE KEIHIN OBDTQ
-
2359031034600 JET NEEDLE KEIHIN OBDTRJET NEEDLE KEIHIN OBDTR
-
2459031029000 BAR CLIPBAR CLIP
-
2557331032000 NEEDLE SET SCREW CPL.NEEDLE SET SCREW CPL.
-
2659031121000 NEEDLE JETNEEDLE JET
-
2754531623170 MAIN JET 170 KEIHINMAIN JET 170 KEIHIN
-
2754531623172 MAIN JET 172 KEIHINMAIN JET 172 KEIHIN
-
2754531623175 MAIN JET 175 KEIHINMAIN JET 175 KEIHIN
-
2754531623178 MAIN JET 178 KEIHINMAIN JET 178 KEIHIN
-
2754531623180 MAIN JET 180 KEIHINMAIN JET 180 KEIHIN
-
2754531623182 MAIN JET 182 KEIHINMAIN JET 182 KEIHIN
-
2754531623185 MAIN JET 185 KEIHINMAIN JET 185 KEIHIN
-
2754531623188 MAIN JET 188 KEIHINMAIN JET 188 KEIHIN
-
2754531623190 MAIN JET 190 KEIHINMAIN JET 190 KEIHIN
-
2854531607040 IDLE JET 40 KEIHINIDLE JET 40 KEIHIN
-
2854531607045 IDLE JET 45 KEIHINIDLE JET 45 KEIHIN
-
2959031051085 STARTER JET 85STARTER JET 85
-
3057331007100 IDLE AIR JET 100 KEIHINIDLE AIR JET 100 KEIHIN
-
3157331037200 MAIN AIR JET 200 KEIHINMAIN AIR JET 200 KEIHIN
-
3259031017100 ADJUST SCREW CPL. FCR-MXADJUST SCREW CPL. FCR-MX
-
3557331085000 BUFFER PLATEBUFFER PLATE
-
3957331009000 FLOAT CPL.FLOAT CPL.
-
4057331008000 ARM PIN FLOATARM PIN FLOAT
-
4157331075000 HOT-STARTER VALVE CPL.HOT-STARTER VALVE CPL.
-
4257331020000 NEEDLE VALVE CPL.NEEDLE VALVE CPL.
-
4657331155000 DRAIN SCREW FLOAT CHAMBERDRAIN SCREW FLOAT CHAMBER
-
4757331060000 COVER ACCELERATOR PUMPCOVER ACCELERATOR PUMP
-
4957331011000 FLOAT CHAMBERFLOAT CHAMBER
-
5359031059000 COIL SPRINGCOIL SPRING
-
5557331048000 STARTER VALVE CPL.STARTER VALVE CPL.
-
5657331098000 BREATH.HOSE FCR-MX KEIHIN CPL.BREATH.HOSE FCR-MX KEIHIN CPL.
-
600965050103 FLAT HEAD SCREW DIN0965-M 5X10FLAT HEAD SCREW DIN0965-M 5X10
-
6157331014000 HOLDING BOLTHOLDING BOLT
-
6457331062000 INTERMEDIATE LEVER CPL.INTERMEDIATE LEVER CPL.
-
6557331056000 LINK LEVERLINK LEVER
-
6657331059000 SPRING LINK LEVERSPRING LINK LEVER
-
6757331159000 SPRING INTERMEDIATE LEVERSPRING INTERMEDIATE LEVER
-
6857331038000 CARBURETOR COVERCARBURETOR COVER
-
6957331087000 WASHER LINK LEVERWASHER LINK LEVER
-
7057331084000 E-CLIPE-CLIP
-
7257331061000 ROD ACCELERATOR PUMPROD ACCELERATOR PUMP
-
7958431082100 YDNAC-CLAMP 16MMYDNAC-CLAMP 16MM
-
8559031040200 INTAKE FUNNEL FCR/FCR-MX (CLOSED)INTAKE FUNNEL FCR/FCR-MX (CLOSED)
-
8559031040100 INTAKE FUNNEL FCR/FCR-MX (OPEN)INTAKE FUNNEL FCR/FCR-MX (OPEN)
-
8759031040010 O-RING FOR INTAKE FUNNELO-RING FOR INTAKE FUNNEL
-
8859031050100 ENGINE BREATHER TUBEENGINE BREATHER TUBE
-
890912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
9057331025000 STOP SCREW CPL. FCR-MXSTOP SCREW CPL. FCR-MX
-
9957331099000 GASKET SET FCR-MX KEIHINGASKET SET FCR-MX KEIHIN
