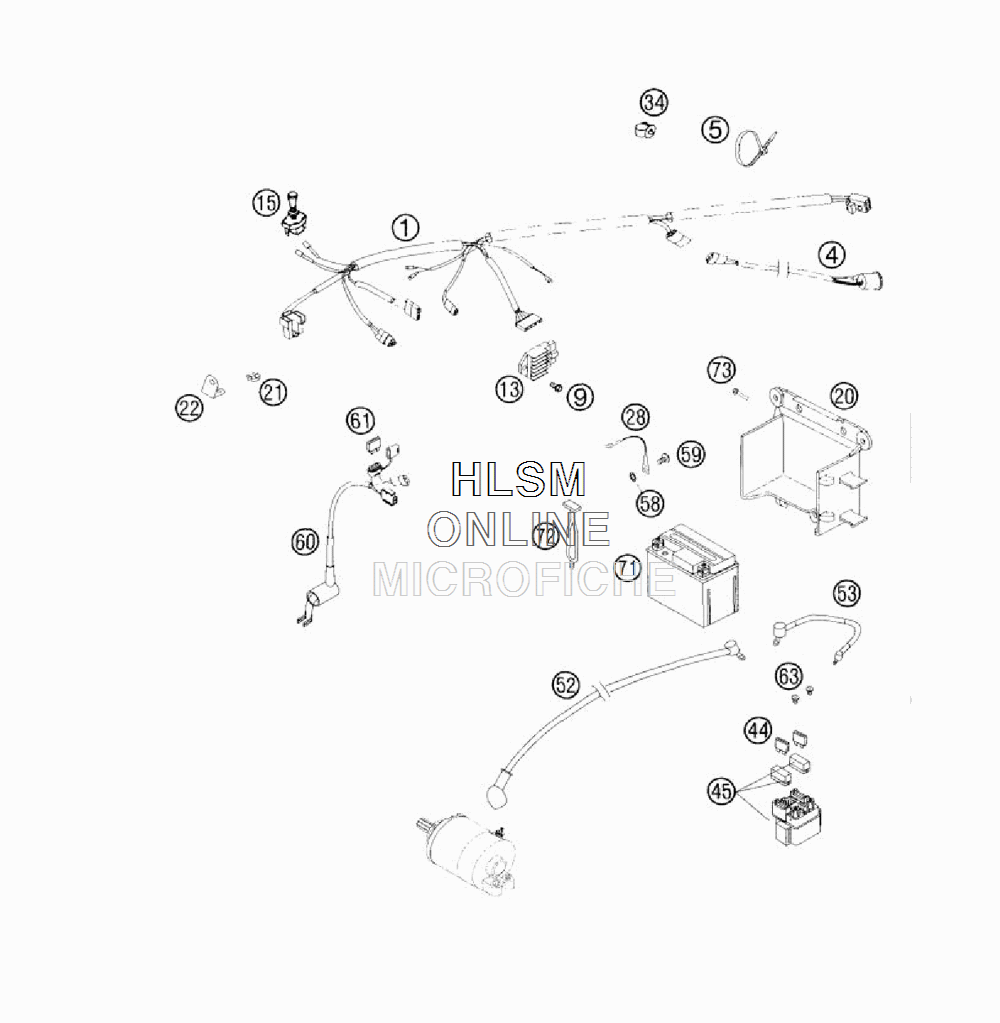

WIRING HARNESS (USA) для Ktm 450 MXC RFS - 2004 года выпуска
-
№АртикулНазвание
-
159011075600 WIRING HARNESSWIRING HARNESS
-
450311076000 WIRING HARNESS REARWIRING HARNESS REAR
-
544011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
544011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
90015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
1350311034000 VOLTAGE REGULA. 12VVOLTAGE REGULA. 12V
-
1555011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
2059011055000 BATTERY CARRIER PLASTIC BLACKBATTERY CARRIER PLASTIC BLACK
-
2157013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
2254611090000 RETAINING PLATE FOR BATTERYRETAINING PLATE FOR BATTERY
-
2858411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
3458111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
4458011109110 FUSE 10 AFUSE 10 A
-
4558211058000 STARTER RELAYSTARTER RELAY
-
5258411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
5358711086000 WIRING HARNESS BATTERYWIRING HARNESS BATTERY
-
5858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
590014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
6059011079000 FAN WIRING HARNESSFAN WIRING HARNESS
-
6158011109005 FUSE 5 AFUSE 5 A
-
630902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
7159011053000 BATTERY 12V/ 3,5 AHBATTERY 12V/ 3,5 AH
-
7250303018000 RUBBER FOR CENTER STANDRUBBER FOR CENTER STAND
-
730017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
