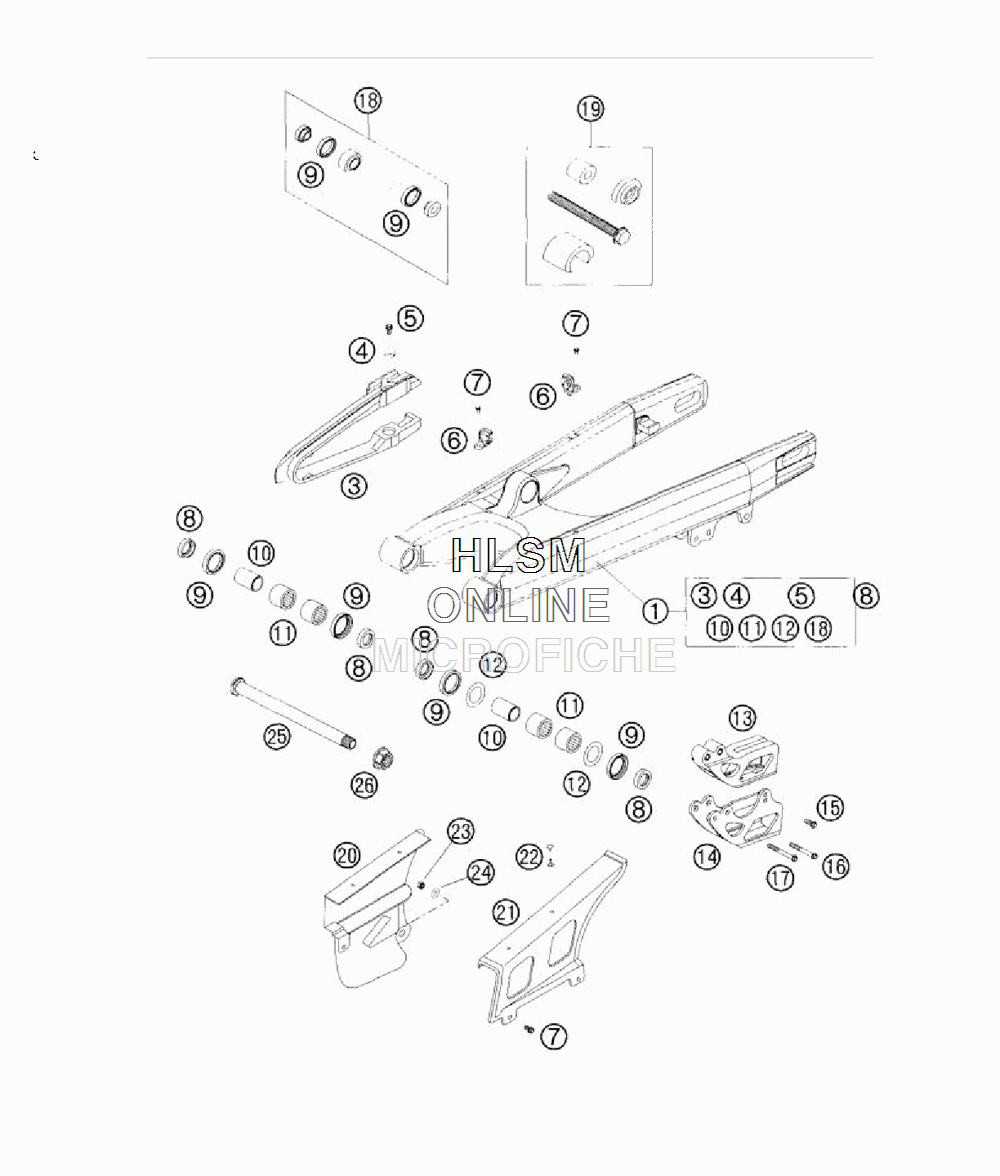

SWINGARM W/ CHAIN GUARD для Ktm 450 MXC RFS - 2004 года выпуска
-
№АртикулНазвание
-
159404030044 SWINGARM CPL.SWINGARM CPL.
-
350304066000 CHAIN GUARDCHAIN GUARD
-
472210079000 BUCKETBUCKET
-
50015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
654611076100 RETAIN.CLAMP FOR BRAKE HOSERETAIN.CLAMP FOR BRAKE HOSE
-
70009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
854804034000 BUCKET F. SHAFT SEAL RINGBUCKET F. SHAFT SEAL RING
-
90760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
1059404032000 BEARING SLEEVE 17X22X38,7BEARING SLEEVE 17X22X38,7
-
1159004031100 NEEDLE BEARING HK2212VNEEDLE BEARING HK2212V
-
1254603036000 STOP DISK 22,2X31,7X1STOP DISK 22,2X31,7X1
-
1354607066100 CHAIN GUIDE REAR '94CHAIN GUIDE REAR '94
-
1454607070144 RETAINING PLATE CPL.RETAINING PLATE CPL.
-
150015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
160015060503 HH COLLAR SCREW M 6X50 WS=8HH COLLAR SCREW M 6X50 WS=8
-
170015060553 HH COLLAR SCREW M 6X55 WS=8HH COLLAR SCREW M 6X55 WS=8
-
1850304090044 HEIM JOINT+BUSHES PDSHEIM JOINT+BUSHES PDS
-
1950329000044 TOOL BEARING MOUNTING PDSTOOL BEARING MOUNTING PDS
-
2050304060100 CHAIN GUARD SMALLCHAIN GUARD SMALL
-
2154607460000 CHAIN GUARD LARGECHAIN GUARD LARGE
-
2220012062055 HOLLOW RIVET TWO PARTSHOLLOW RIVET TWO PARTS
-
230985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
240021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
2554804037000 SWINGARM BOLTM16X1,5SWINGARM BOLTM16X1,5
-
2654804038000 SELF LOCK.NUT M16X1,5 WS=19SELF LOCK.NUT M16X1,5 WS=19
