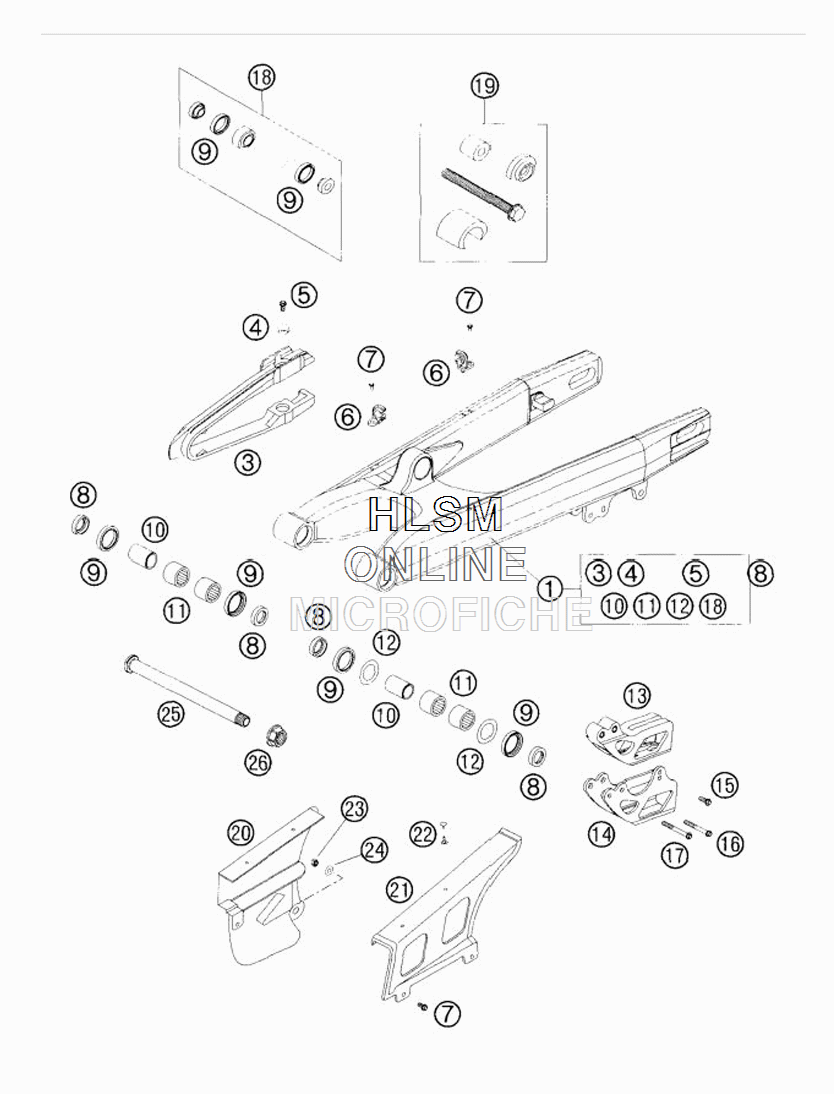

SWINGARM W/ CHAIN GUARD для Ktm 250 EXC RFS - 2004 года выпуска`

№

Артикул

Название
1

59404030044 SWINGARM CPL.

SWINGARM CPL.

170 ₽
3

50304066000 CHAIN GUARD

CHAIN GUARD

5 600 ₽
4

72210079000 BUCKET

BUCKET

680 ₽
5

0015060103 HH COLLAR SCREW M 6X10 WS=8

HH COLLAR SCREW M 6X10 WS=8

500 ₽
6

54611076100 RETAIN.CLAMP FOR BRAKE HOSE

RETAIN.CLAMP FOR BRAKE HOSE

350 ₽
7

0009050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
8

54804034000 BUCKET F. SHAFT SEAL RING

BUCKET F. SHAFT SEAL RING

1 330 ₽
9

0760253270 SHAFT SEAL RING 25X32X7

SHAFT SEAL RING 25X32X7

1 610 ₽
10

59404032000 BEARING SLEEVE 17X22X38,7

BEARING SLEEVE 17X22X38,7

2 330 ₽
11

59004031100 NEEDLE BEARING HK2212V

NEEDLE BEARING HK2212V

2 490 ₽
12

54603036000 STOP DISK 22,2X31,7X1

STOP DISK 22,2X31,7X1

440 ₽
13

54607066100 CHAIN GUIDE REAR

CHAIN GUIDE REAR

6 600 ₽
14

54607070144 RETAINING PLATE CPL.

RETAINING PLATE CPL.

8 150 ₽
15

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
16

0015060503 HH COLLAR SCREW M 6X50 WS=8

HH COLLAR SCREW M 6X50 WS=8

640 ₽
17

0015060553 HH COLLAR SCREW M 6X55 WS=8

HH COLLAR SCREW M 6X55 WS=8

470 ₽
18

50304090044 HEIM JOINT+BUSHES PDS

HEIM JOINT+BUSHES PDS

17 470 ₽
19

50329000044 TOOL BEARING MOUNTING PDS

TOOL BEARING MOUNTING PDS

145 420 ₽
20

50304060100 CHAIN GUARD SMALL

CHAIN GUARD SMALL

3 140 ₽
21

54607460000 CHAIN GUARD LARGE

CHAIN GUARD LARGE

11 010 ₽
22

20012062055 HOLLOW RIVET TWO PARTS

HOLLOW RIVET TWO PARTS

790 ₽
23

0985060003 SELF LOCK. NUT DIN0985-M 6

SELF LOCK. NUT DIN0985-M 6

290 ₽
24

0021060003 WASHER DIN9021-A 6,4

WASHER DIN9021-A 6,4

290 ₽
25

54804037000 SWINGARM BOLTM16X1,5

SWINGARM BOLTM16X1,5

13 080 ₽
26

54804038000 SELF LOCK.NUT M16X1,5 WS=19

SELF LOCK.NUT M16X1,5 WS=19

270 ₽
