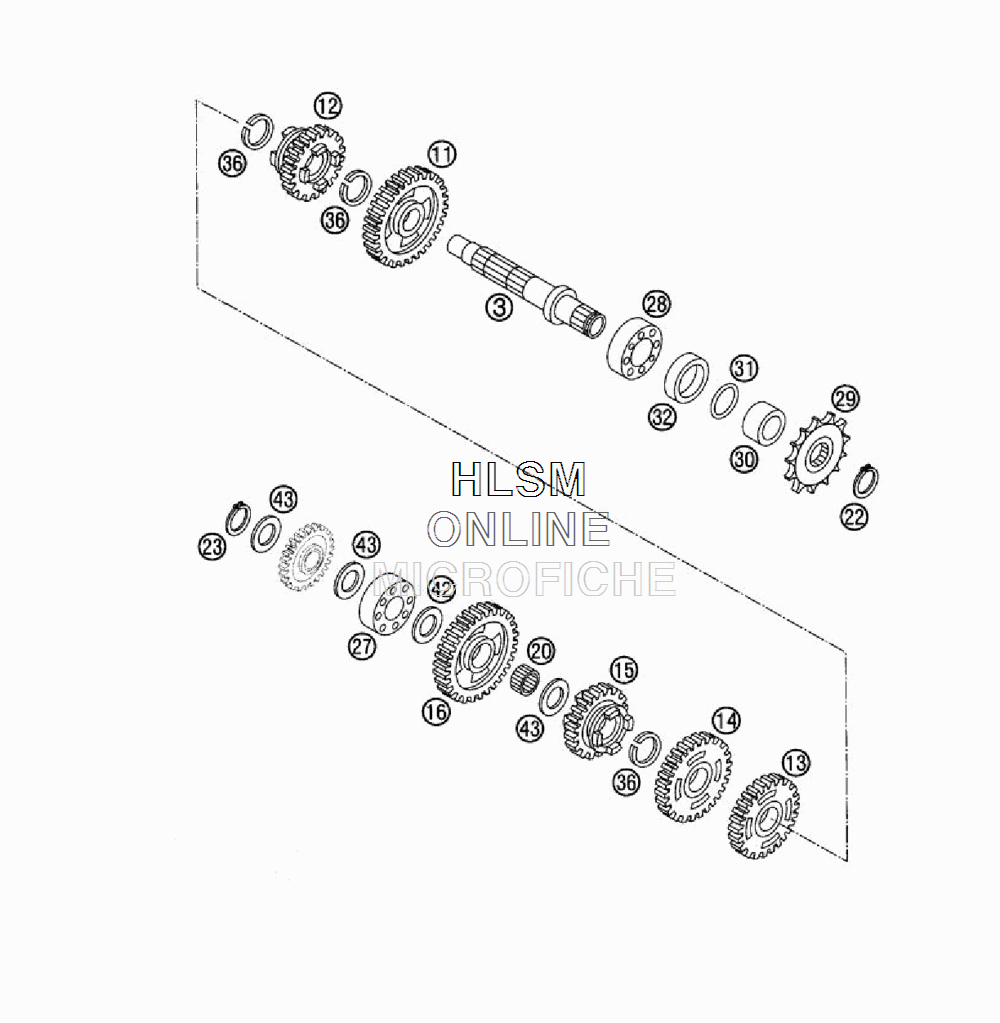

TRANSMISSION - COUNTERSHAFT для Ktm 105 SX - 2004 года выпуска`
-
№АртикулНазвание
-
347033003000 COUNTERSHAFTCOUNTERSHAFT
-
1147033011000 IDLER GEAR 2ND G. 28-TIDLER GEAR 2ND G. 28-T
-
1247033012000 SLIDING GEAR 6TH G. 21-TSLIDING GEAR 6TH G. 21-T
-
1347033013000 IDLER GEAR 3ND G. 26-TIDLER GEAR 3ND G. 26-T
-
1447033014000 IDLER GEAR 4TH G. 26-TIDLER GEAR 4TH G. 26-T
-
1547033015000 SLIDE GEAR 5TH G. 25-TSLIDE GEAR 5TH G. 25-T
-
1647033016000 IDLER GEAR 1ST G. 29-TIDLER GEAR 1ST G. 29-T
-
2047033099000 NEEDLE BEARING K15X19X10SNEEDLE BEARING K15X19X10S
-
2249033091000 CIRCLIP AS20X1,75CIRCLIP AS20X1,75
-
230471150010 CIRCLIP DIN0471-15X1CIRCLIP DIN0471-15X1
-
270625160026 BALL BEARING 16002BALL BEARING 16002
-
280625062041 BALL BEARING 6204 JR2 C4BALL BEARING 6204 JR2 C4
-
2947033029013 ENGINE SPROCKET 13-TENGINE SPROCKET 13-T
-
2947033029014 ENGINE SPROCKET 14-TENGINE SPROCKET 14-T
-
3047033030000 SPACER FOR SPROCKETSPACER FOR SPROCKET
-
3146033031000 O-RING 18,77X1,78O-RING 18,77X1,78
-
320760263570 SHAFT SEAL RING 26X35X7 BSHAFT SEAL RING 26X35X7 B
-
360417210120 CIRCLIP SW21CIRCLIP SW21
-
4247033040000 STOP DISC 15X25X1STOP DISC 15X25X1
-
4347033043000 STOP DISC 15X25X0,5STOP DISC 15X25X0,5
