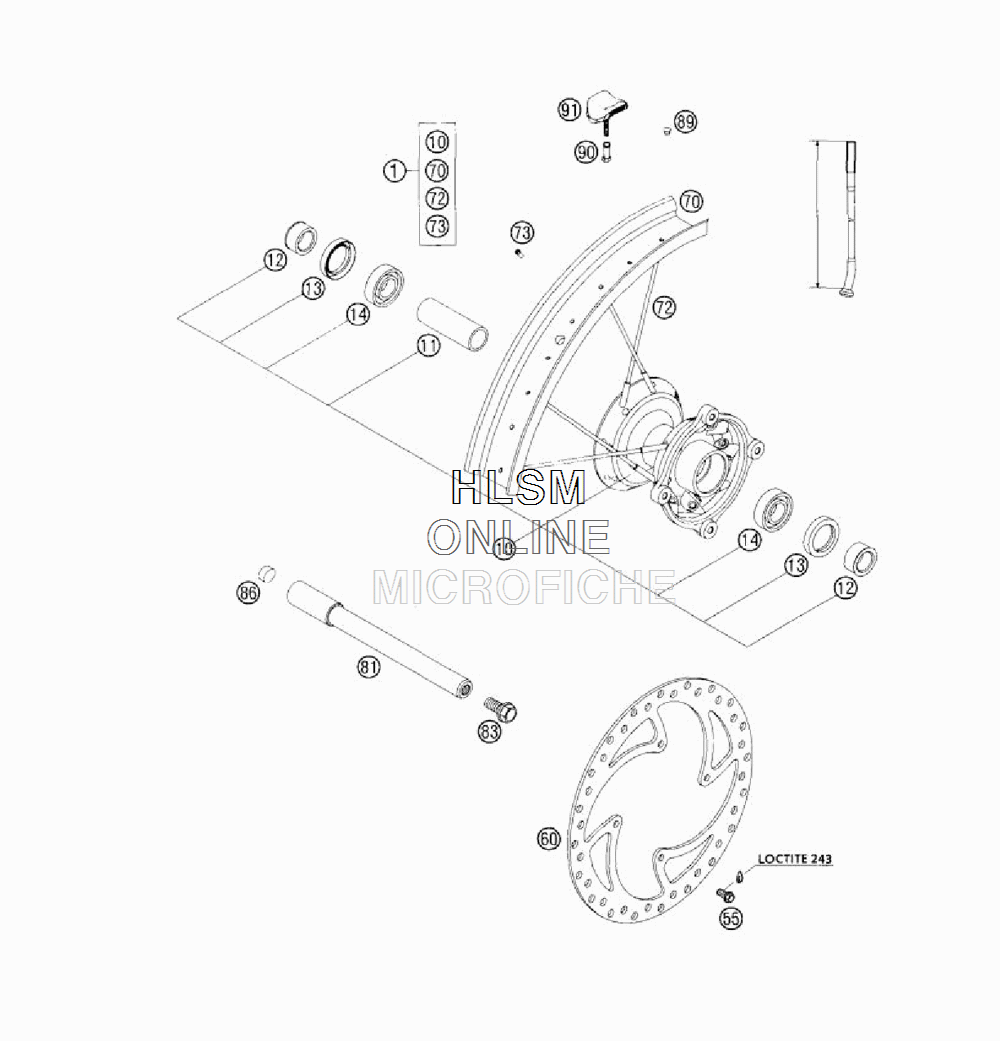

FRONT WHEEL для Ktm 105 SX - 2004 года выпуска`
-
№АртикулНазвание
-
147009001144 FRONT WHEEL SP 19"FRONT WHEEL SP 19"
-
104700901004496 FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
1147009011000 BEARING SPACER TUBEBEARING SPACER TUBE
-
1247009012000 SPACER BUSHINGSPACER BUSHING
-
130760253570 SHAFT SEAL RING 25X35X7 BTSLSHAFT SEAL RING 25X35X7 BTSL
-
140625060037 GR.BALL BEAR. 6003-2RSH/C3HMTFGR.BALL BEAR. 6003-2RSH/C3HMTF
-
5559009062013 SPECIAL SCREW M6X13 WS=B 10.9SPECIAL SCREW M6X13 WS=B 10.9
-
6047009060000 BRAKE DISC FRONT D=220MMBRAKE DISC FRONT D=220MM
-
7047009070100 RIM FRONT AL4 19X1,60-32RIM FRONT AL4 19X1,60-32
-
7247009072210 SPOKE FRONT 19 4/3,5/4-210SPOKE FRONT 19 4/3,5/4-210
-
7350309072000 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
8147009081000 AXLE FRONTAXLE FRONT
-
8349032011000 HH COLLAR SCREW M10X20 WS=17HH COLLAR SCREW M10X20 WS=17
-
8655009086000 PLUG SFL13PLUG SFL13
-
8955003135000 PLUG FOR RIMPLUG FOR RIM
-
9050310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
9151009100100 RIM LOCK VM1 (1,60)RIM LOCK VM1 (1,60)
