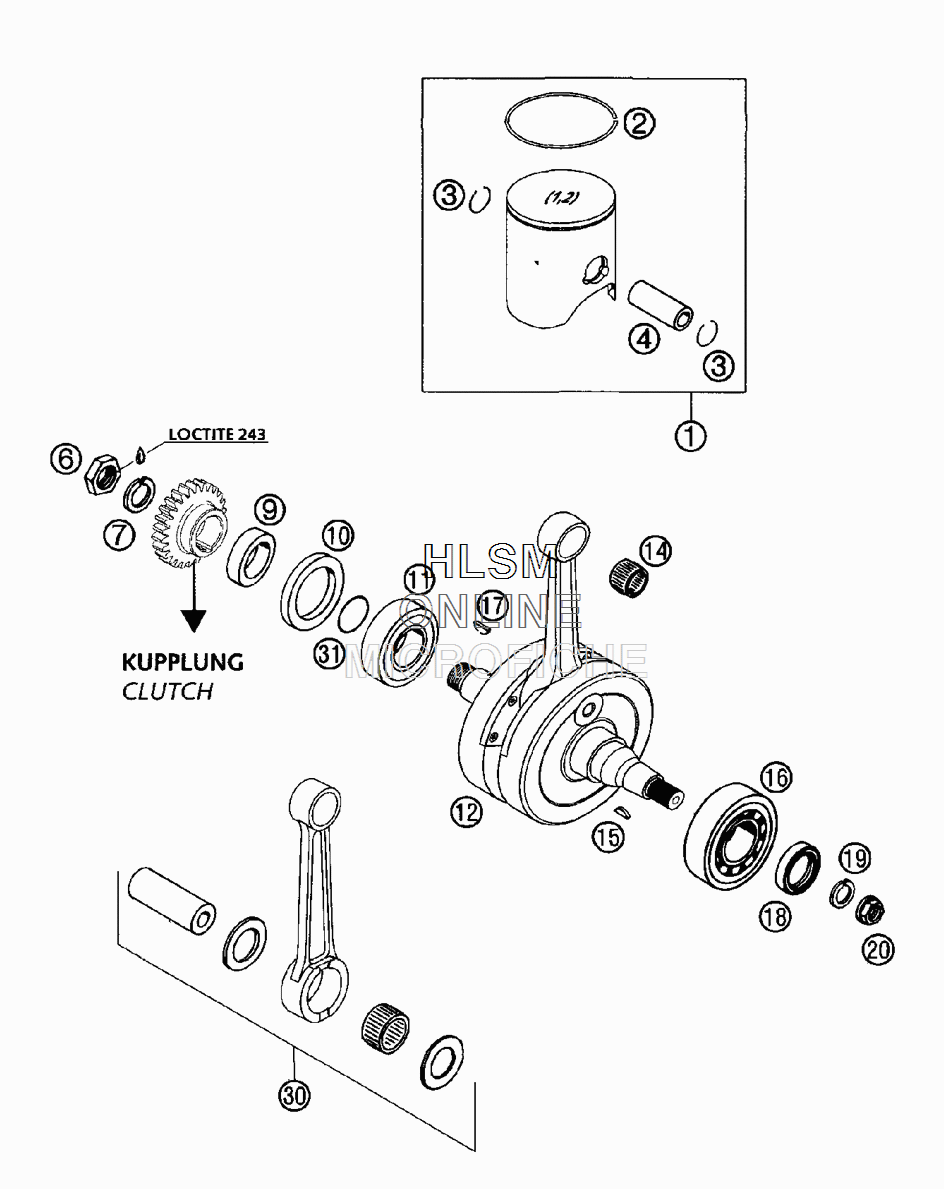

CRANKSHAFT W/ PISTON для Ktm 250 SX - 2003 года выпуска`

№

Артикул

Название
1

54830007000I PISTON VERTEX 250 SIZE 1 (ONE RING)

PISTON VERTEX 250 SIZE 1 (ONE RING)

74 470 ₽
1

54830007000II PISTON VERTEX 250 SIZE 2 (ONE RING)

PISTON VERTEX 250 SIZE 2 (ONE RING)

74 470 ₽
2

54830032000 SQUARE RING 66,4X1

SQUARE RING 66,4X1

10 630 ₽
3

54030074000 WIRE LOCK RING C18X1,5

WIRE LOCK RING C18X1,5

620 ₽
4

54630233000 PISTON PIN 18X55,8 250

PISTON PIN 18X55,8 250

5 600 ₽
6

54630029000 HEX. NUT L/SH M18X1,5

HEX. NUT L/SH M18X1,5

2 490 ₽
7

58132072000 LOCK WASHER VSK 18

LOCK WASHER VSK 18

320 ₽
9

54830016000 SPACER SLEEVE 28X38X10

SPACER SLEEVE 28X38X10

4 060 ₽
10

0760385273 SHAFT SEAL RING 38X52X7BTSL

SHAFT SEAL RING 38X52X7BTSL

5 960 ₽
11

0625623204 BALL BEARING 32X65X17 NTN

BALL BEARING 32X65X17 NTN

16 470 ₽
12

54830018000 CRANKSHAFT STROKE 72

CRANKSHAFT STROKE 72

0 ₽
14

54430034000 NEEDLE BEARING KBK 18X22X20

NEEDLE BEARING KBK 18X22X20

5 640 ₽
15

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
16

56530123200 CYLIND.ROL.BEAR. NJ207ET2XCS42

CYLIND.ROL.BEAR. NJ207ET2XCS42

28 910 ₽
17

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
18

0760253570 SHAFT SEAL RING 25X35X7 BTSL

SHAFT SEAL RING 25X35X7 BTSL

4 650 ₽
19

50230029012 LOCKING RING VSK 12

LOCKING RING VSK 12

290 ₽
20

49030021000 COLLAR NUT M12X1 R/S

COLLAR NUT M12X1 R/S

2 660 ₽
30

54830015044 CONROD REP KIT 250 03

CONROD REP KIT 250 03

95 180 ₽
31

0770250015 O-RING 25,00X1,50 NBR 70

O-RING 25,00X1,50 NBR 70

60 ₽
