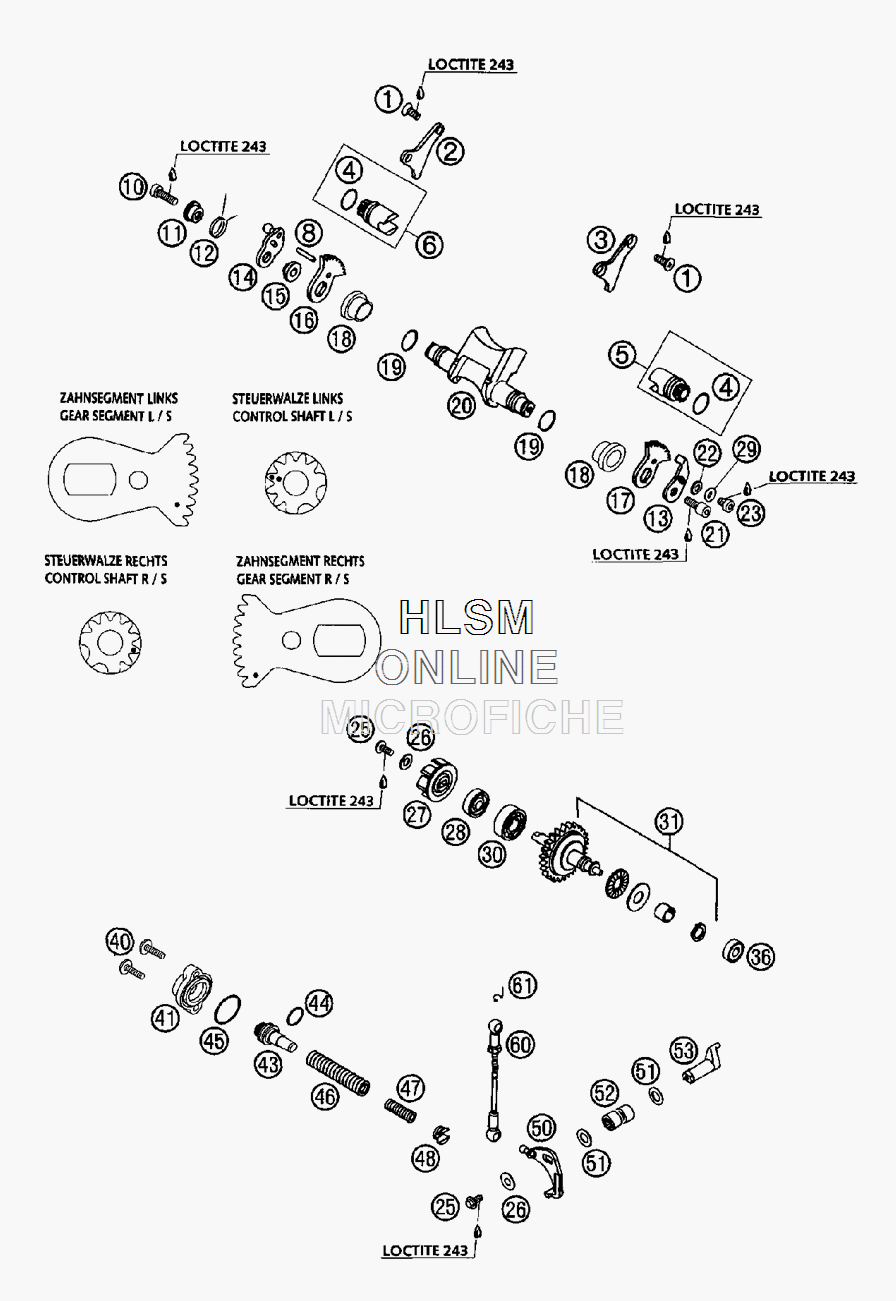

EXAHUST CONTROL для Ktm 250 SX - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0965050103 FLAT HEAD SCREW DIN0965-M 5X10
    FLAT HEAD SCREW DIN0965-M 5X10
  • 2
    54637062000 RETAINING PLATE R/S
    RETAINING PLATE R/S
  • 3
    54637063000 RETAINING PLATE L/S
    RETAINING PLATE L/S
  • 4
    0770160021 O-RING 16,00X2,00 VITON
    O-RING 16,00X2,00 VITON
  • 5
    54637061444 CONTROL ROLLER L/S "L/S"
    CONTROL ROLLER L/S "L/S"
  • 6
    54637061544 CONTROL ROLLER CPL. R/S
    CONTROL ROLLER CPL. R/S
  • 8
    0007050160 CYLINDER PIN DIN 7-5X16MM (M6)
    CYLINDER PIN DIN 7-5X16MM (M6)
  • 10
    0912060203 AH SCREW DIN0912-M 6X20
    AH SCREW DIN0912-M 6X20
  • 11
    54637067000 SPRING SLEEVE
    SPRING SLEEVE
  • 12
    54637066000 OVERLOAD SPRING
    OVERLOAD SPRING
  • 13
    54637085300 RETAIN.PLATE CONTROL FLAP '92
    RETAIN.PLATE CONTROL FLAP '92
  • 14
    54637065000 CONTROL LEVER WITH BALL TYPE
    CONTROL LEVER WITH BALL TYPE
  • 15
    54637068100 BEARING SLEEVE
    BEARING SLEEVE
  • 16
    54637064000 GEAR SEGMENT R/S
    GEAR SEGMENT R/S
  • 17
    54637064050 GEAR SEGMENT L/S
    GEAR SEGMENT L/S
  • 18
    54737019000 BEAR. SLEEVE F. CONTROL FLAP
    BEAR. SLEEVE F. CONTROL FLAP
  • 19
    0770150151 O-RING 15,00X1,50 VITON
    O-RING 15,00X1,50 VITON
  • 20
    54637220100 CONTROL FLAP "2506"
    CONTROL FLAP "2506"
  • 21
    0912060163 AH SCREW DIN0912-M 6X16
    AH SCREW DIN0912-M 6X16
  • 22
    54637056100 WASHER 6,5X11X2
    WASHER 6,5X11X2
  • 23
    0984060063 AH SCREW DIN7984-M 6X 6
    AH SCREW DIN7984-M 6X 6
  • 25
    0014050123 HH COLLAR SCREW M 5X12 WS=6
    HH COLLAR SCREW M 5X12 WS=6
  • 26
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 27
    54635005000 WATER PUMP WHEEL
    WATER PUMP WHEEL
  • 28
    0760082472 SHAFT SEAL RING 8X24X7 A DUO
    SHAFT SEAL RING 8X24X7 A DUO
  • 29
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 30
    0625160020 BALL BEARING 16002 C3
    BALL BEARING 16002 C3
  • 31
    54837050044 CENTRIFUGAL TIMER CPL.
    CENTRIFUGAL TIMER CPL.
  • 36
    54637098100 BALL BEARING 626LLBC3/5K
    BALL BEARING 626LLBC3/5K
  • 40
    0014050203 HH COLLAR SCREW M 5X20 WS=6
    HH COLLAR SCREW M 5X20 WS=6
  • 41
    54637070100 COVER LID
    COVER LID
  • 43
    54837075000 SPRING GUIDE
    SPRING GUIDE
  • 44
    0770021120 O-RING 12,37X2,62 NBR70
    O-RING 12,37X2,62 NBR70
  • 45
    0770240020 O-RING 24,00X2,00 NBR70
    O-RING 24,00X2,00 NBR70
  • 46
    54837069000 ADJUST SPRING 2003
    ADJUST SPRING 2003
  • 47
    54837072000 AUXILIARY SPRING
    AUXILIARY SPRING
  • 48
    54637071200 SPRING INSERT
    SPRING INSERT
  • 50
    54637055244 ANGLE LEVER CPL.
    ANGLE LEVER CPL.
  • 51
    0988101610 SHIM WASHER DIN988 10X16X1
    SHIM WASHER DIN988 10X16X1
  • 52
    54637096000 NEEDLE SLEEVE HK 1010
    NEEDLE SLEEVE HK 1010
  • 53
    54837057000 CONTROL LEVER
    CONTROL LEVER
  • 60
    54637095344 CONNECT.ROD 250-380 L=92,5MM
    CONNECT.ROD 250-380 L=92,5MM
  • 61
    50237195055 SECURING DIN-71805-S-8
    SECURING DIN-71805-S-8
