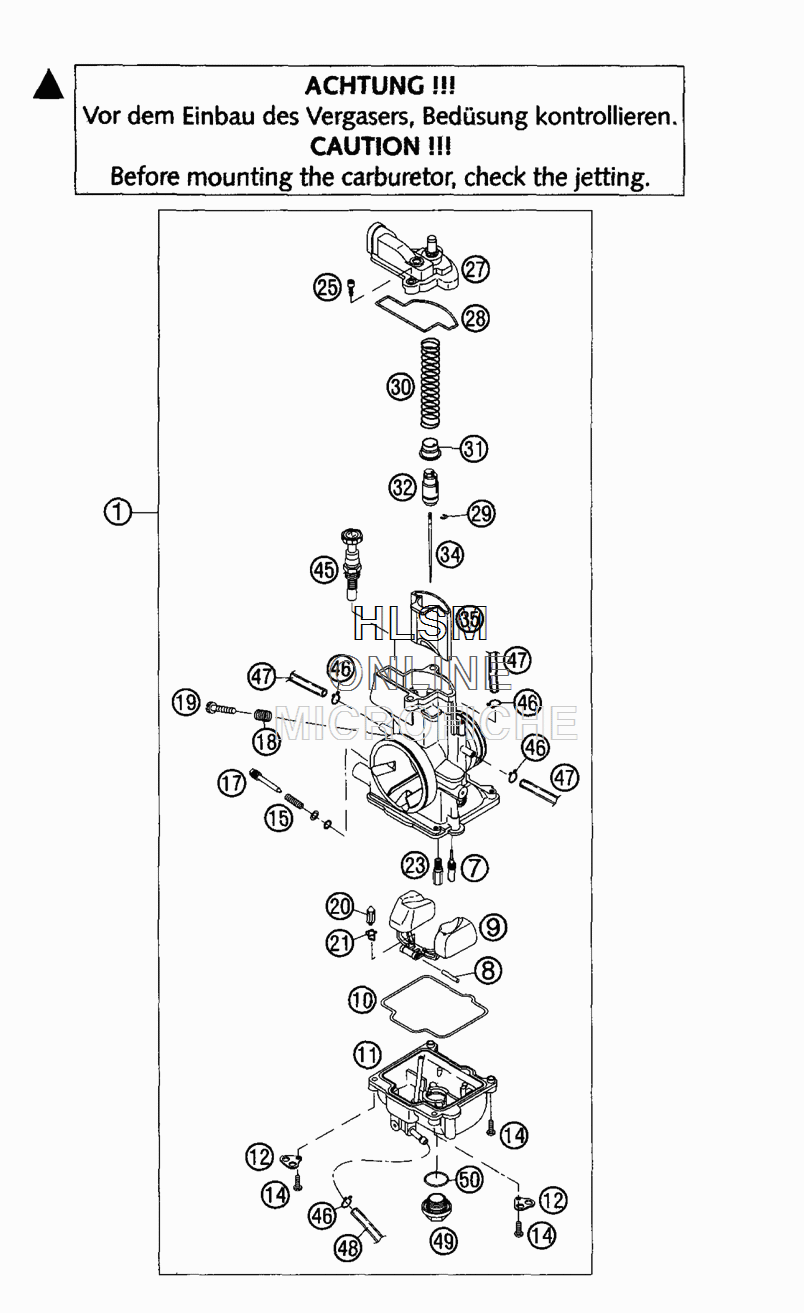

CARBURETOR KEIHIN PWK 38-S AG для Ktm 250 SX - 2003 года выпуска`
-
№АртикулНазвание
-
154831001044 CARBURETOR PWK38-S AGCARBURETOR PWK38-S AG
-
754531607045 IDLE JET 45 KEIHINIDLE JET 45 KEIHIN
-
754531607048 IDLE JET 48 KEIHINIDLE JET 48 KEIHIN
-
754531607050 IDLE JET 50 KEIHINIDLE JET 50 KEIHIN
-
754531607052 IDLE JET 52 KEIHINIDLE JET 52 KEIHIN
-
754531607055 IDLE JET 55 KEIHINIDLE JET 55 KEIHIN
-
754531607058 IDLE JET 58 KEIHINIDLE JET 58 KEIHIN
-
754531607060 IDLE JET 60 KEIHINIDLE JET 60 KEIHIN
-
857331008000 ARM PIN FLOATARM PIN FLOAT
-
957331009000 FLOAT CPL.FLOAT CPL.
-
1054831010000 GASKET FLOAT CHAMBERGASKET FLOAT CHAMBER
-
1154831011000 FLOAT CHAMBER PWK38-S AGFLOAT CHAMBER PWK38-S AG
-
1254531612100 RETAINING PLATE FOR BLEEDERRETAINING PLATE FOR BLEEDER
-
140016040163 HH COLLAR SCREW M 4X16 WS=6HH COLLAR SCREW M 4X16 WS=6
-
1554531615000 SPRING FOR ADJUSTMENT SCREWSPRING FOR ADJUSTMENT SCREW
-
1754531617000 ADJUSTMENT SCREWADJUSTMENT SCREW
-
1854631118000 SPRINGSPRING
-
1954631219100 ADJUSTMENT SCREW M 5ADJUSTMENT SCREW M 5
-
2054631220000 FLOAT NEEDLEFLOAT NEEDLE
-
2154531621000 CLAMPCLAMP
-
2354531623170 MAIN JET 170 KEIHINMAIN JET 170 KEIHIN
-
2354531623172 MAIN JET 172 KEIHINMAIN JET 172 KEIHIN
-
2354531623175 MAIN JET 175 KEIHINMAIN JET 175 KEIHIN
-
2354531623178 MAIN JET 178 KEIHINMAIN JET 178 KEIHIN
-
2354531623180 MAIN JET 180 KEIHINMAIN JET 180 KEIHIN
-
2354531623182 MAIN JET 182 KEIHINMAIN JET 182 KEIHIN
-
2354531623185 MAIN JET 185 KEIHINMAIN JET 185 KEIHIN
-
2554831025000 SPECIAL-AH-SCREW M4X12SPECIAL-AH-SCREW M4X12
-
2754831027000 CARBURETOR COVER PWK38-S AGCARBURETOR COVER PWK38-S AG
-
2854831028000 GASKET FOR CARBURETOR COVERGASKET FOR CARBURETOR COVER
-
2954531629000 CLIP FOR JET NEEDLECLIP FOR JET NEEDLE
-
3054831030000 SLIDING SPRINGSLIDING SPRING
-
3154631231000 SPRING CAPSPRING CAP
-
3254631232000 NIPPLENIPPLE
-
3454731034000 JET NEEDLE KEIHIN N3CHJET NEEDLE KEIHIN N3CH
-
3454731034100 JET NEEDLE KEIHIN N3CWJET NEEDLE KEIHIN N3CW
-
3454731034400 JET NEEDLE KEIHIN N3CGJET NEEDLE KEIHIN N3CG
-
3554631235106 THROTTLE VALVE 65 KEIHINTHROTTLE VALVE 65 KEIHIN
-
4554631245000 STARTER PISTON CPL.STARTER PISTON CPL.
-
4654531696000 CLAMP 6 MMCLAMP 6 MM
-
4731007007101 BREATHER HOSE 4X6MMBREATHER HOSE 4X6MM
-
4852031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
4954531699000 PLUG M 18X1PLUG M 18X1
-
500770180230 O-RING 18,00X2,30 NBR 70O-RING 18,00X2,30 NBR 70
