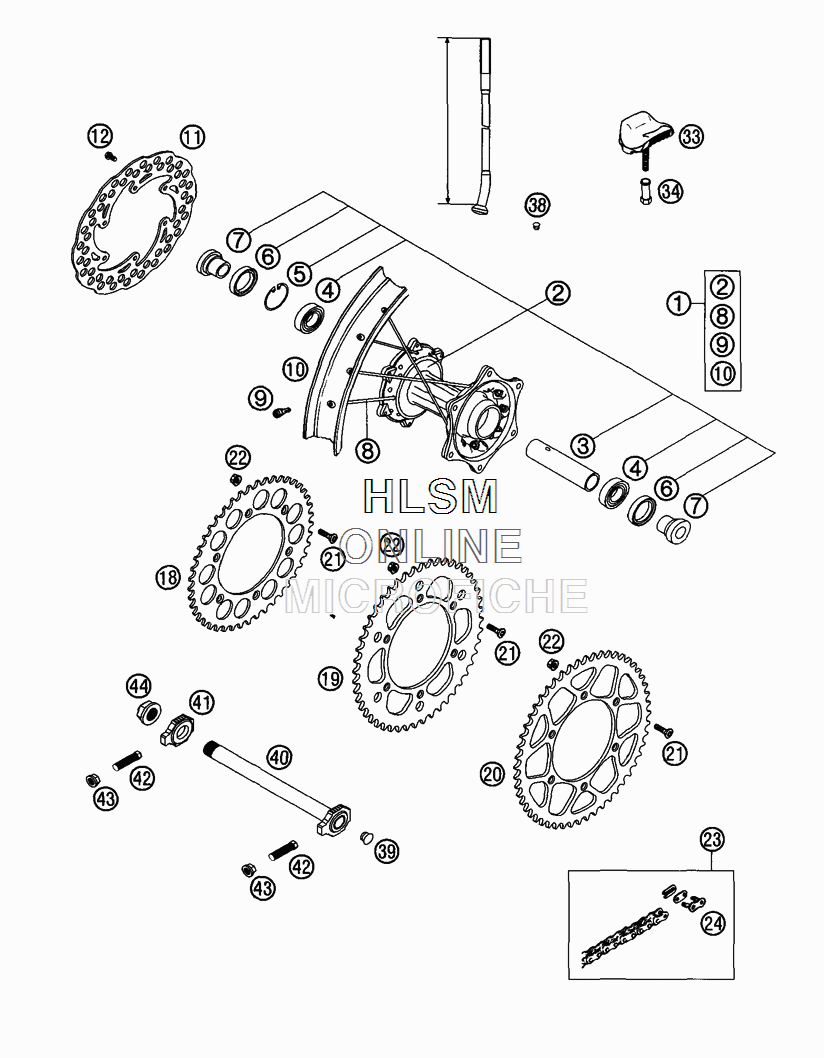

REAR WHEEL для Ktm 200 SX - 2003 года выпуска`
-
№АртикулНазвание
-
154810001144 REAR WHEEL CPL. 2,15X19REAR WHEEL CPL. 2,15X19
-
25481001004496 REAR HUB CPL. GOLDREAR HUB CPL. GOLD
-
359010011000 BEARING SPACER 121,5MMBEARING SPACER 121,5MM
-
40625060058 GROOV.BALL BEAR.6005DDU2C3S6NMGROOV.BALL BEAR.6005DDU2C3S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
754610016000 BUSHING FOR HUBBUSHING FOR HUB
-
850310072207 SPOKE M5X207-10G 19 DDESPOKE M5X207-10G 19 DDE
-
958309072000 SPOKE NIPPLE M5-TA (8X21MM)SPOKE NIPPLE M5-TA (8X21MM)
-
1054610070100 REAR RIM 2,15X19 EXCELREAR RIM 2,15X19 EXCEL
-
1154810060000 BRAKE DISC REAR D=220MM 03BRAKE DISC REAR D=220MM 03
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1858310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1858310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1858310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1858310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
1958310151049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151051 REAR SPROCKET 51-TREAR SPROCKET 51-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2350310165118 CHAIN 5/8X1/4 + MASTER LINK 118 ROLLSCHAIN 5/8X1/4 + MASTER LINK 118 ROLLS
-
2450310166000 MASTER LINK 5/8X1/4MASTER LINK 5/8X1/4
-
3354010100100 RIM LOCK VM3 (2.15)RIM LOCK VM3 (2.15)
-
3450310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4050310085044 AXLE REAR CPL. 265MMAXLE REAR CPL. 265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040000 SPECIAL SCREW M10X1,25 WS=10SPECIAL SCREW M10X1,25 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
Все узлы модели:
- ACCESSORIES
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR KEIHIN PWK 39/38 AG
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM (USA/AUS)
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST PIPE
- EXHAUST SILENCER
- FORK LEGS - 48
- FRAME - SUB FRAME
- FRONT FORK - 48
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM KOKUSAN
- KICKSTARTER
- MASK W/ FENDERS
- REAR BRAKE CONTROL
- • REAR WHEEL
- REED VALVE CASE
- SHIFTING MECHANISM
- SHOCK ABSORBER - DISASSEMBLED
- SHOCK ABSORBER WP
- SPECIAL TOOLS
- SWINGARM
- TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
