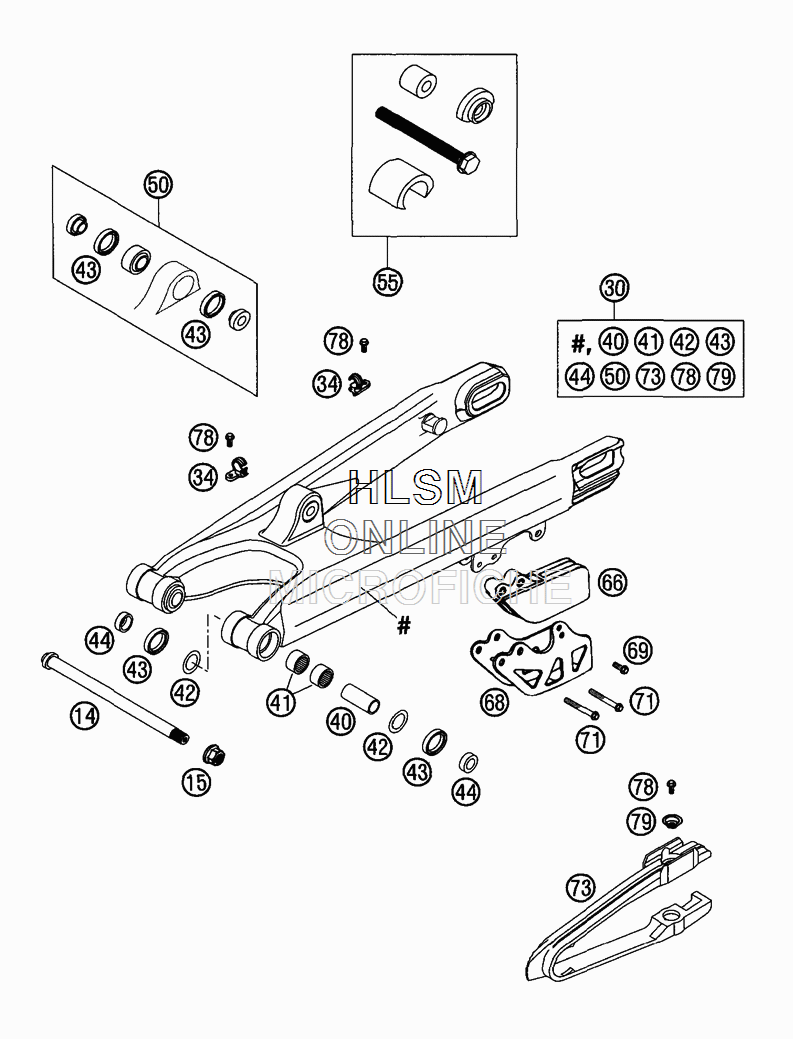

SWINGARM для Ktm 200 SX - 2003 года выпуска

  • №
    Артикул
    Название
  • 14
    54804037000 SWINGARM BOLT M16X1,5
    SWINGARM BOLT M16X1,5
  • 15
    54804038000 SELF LOCK.NUT M16X1,5 WS=19
    SELF LOCK.NUT M16X1,5 WS=19
  • 30
    54804030044 SWINGARM CPL. 250SX "L"
    SWINGARM CPL. 250SX "L"
  • 34
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE
    RETAIN.CLAMP FOR BRAKE HOSE
  • 40
    54804032000 BEARING SLEEVE F SWING ARM
    BEARING SLEEVE F SWING ARM
  • 41
    58033097000 NEEDLE BEARING HK 2216 KSE
    NEEDLE BEARING HK 2216 KSE
  • 42
    54603036000 STOP DISK 22,2X31,7X1
    STOP DISK 22,2X31,7X1
  • 43
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 44
    54804034000 BUCKET F. SHAFT SEAL RING
    BUCKET F. SHAFT SEAL RING
  • 50
    50304090044 HEIM JOINT+BUSHES PDS
    HEIM JOINT+BUSHES PDS
  • 55
    50329000044 TOOL BEARING MOUNTING PDS
    TOOL BEARING MOUNTING PDS
  • 66
    54607066100 CHAIN GUIDE REAR
    CHAIN GUIDE REAR
  • 68
    54607070144 RETAINING PLATE CPL.
    RETAINING PLATE CPL.
  • 69
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 71
    0015060503 HH COLLAR SCREW M 6X50 WS=8
    HH COLLAR SCREW M 6X50 WS=8
  • 73
    50304066000 CHAIN GUARD
    CHAIN GUARD
  • 78
    0009050103 SPECIAL SCREW M5,0X10
    SPECIAL SCREW M5,0X10
  • 79
    72210079000 BUCKET
    BUCKET
