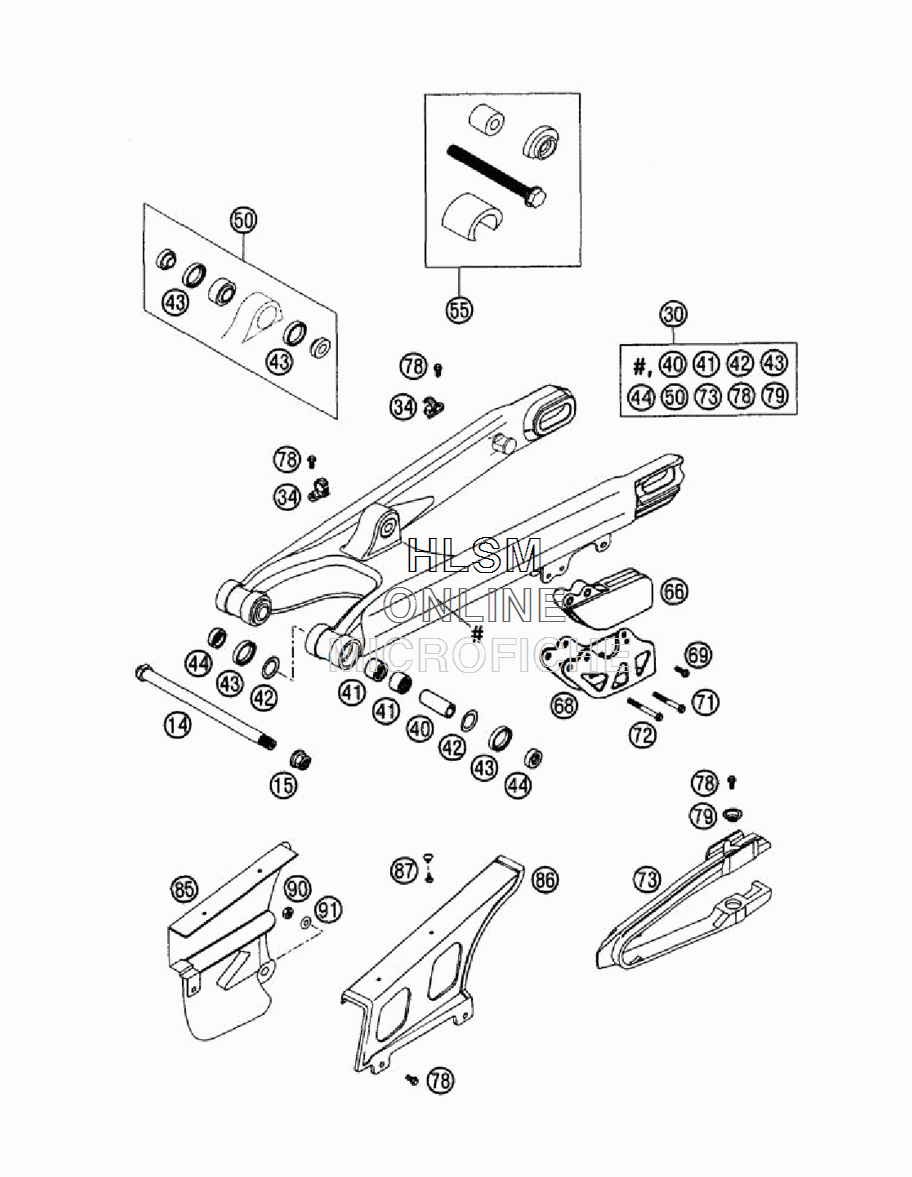

SWINGARM W/ CHAIN GUARD для Ktm 200 MXC - 2003 года выпуска`

№

Артикул

Название
14

50303014000 SWINGARM BOLT 14X252 WS=22

SWINGARM BOLT 14X252 WS=22

12 830 ₽
15

54603015000 SELF LOCKING NUT M14X1,5 WS=19

SELF LOCKING NUT M14X1,5 WS=19

1 340 ₽
30

50304030344 SWINGARM CPL.

SWINGARM CPL.

170 ₽
34

54611076100 RETAIN.CLAMP FOR BRAKE HOSE

RETAIN.CLAMP FOR BRAKE HOSE

350 ₽
40

54603081000 BEARING SLEEVE 15 X 20 X 48

BEARING SLEEVE 15 X 20 X 48

6 690 ₽
41

54603097000 NEEDLE BUSH HK 2016

NEEDLE BUSH HK 2016

4 060 ₽
42

54603036000 STOP DISK 22,2X31,7X1

STOP DISK 22,2X31,7X1

440 ₽
43

0760253270 SHAFT SEAL RING 25X32X7

SHAFT SEAL RING 25X32X7

1 610 ₽
44

54603090000 BUCKET FSHAFT SEAL RING 15X25X9

BUCKET FSHAFT SEAL RING 15X25X9

3 150 ₽
50

50304090044 HEIM JOINT+BUSHES PDS

HEIM JOINT+BUSHES PDS

17 470 ₽
55

50329000044 TOOL BEARING MOUNTING PDS

TOOL BEARING MOUNTING PDS

145 420 ₽
66

54607066100 CHAIN GUIDE REAR

CHAIN GUIDE REAR

6 600 ₽
68

54607070144 RETAINING PLATE CPL.

RETAINING PLATE CPL.

8 150 ₽
69

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
71

0015060503 HH COLLAR SCREW M 6X50 WS=8

HH COLLAR SCREW M 6X50 WS=8

640 ₽
72

0015060553 HH COLLAR SCREW M 6X55 WS=8

HH COLLAR SCREW M 6X55 WS=8

470 ₽
73

50304066000 CHAIN GUARD

CHAIN GUARD

5 600 ₽
78

0009050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
79

72210079000 BUCKET

BUCKET

680 ₽
85

50304060100 CHAIN GUARD SMALL

CHAIN GUARD SMALL

3 140 ₽
86

54607460000 CHAIN GUARD LARGE

CHAIN GUARD LARGE

11 010 ₽
87

20012062055 HOLLOW RIVET TWO PARTS

HOLLOW RIVET TWO PARTS

790 ₽
90

0985060003 SELF LOCK. NUT DIN0985-M 6

SELF LOCK. NUT DIN0985-M 6

290 ₽
91

0021060003 WASHER DIN9021-A 6,4

WASHER DIN9021-A 6,4

290 ₽
