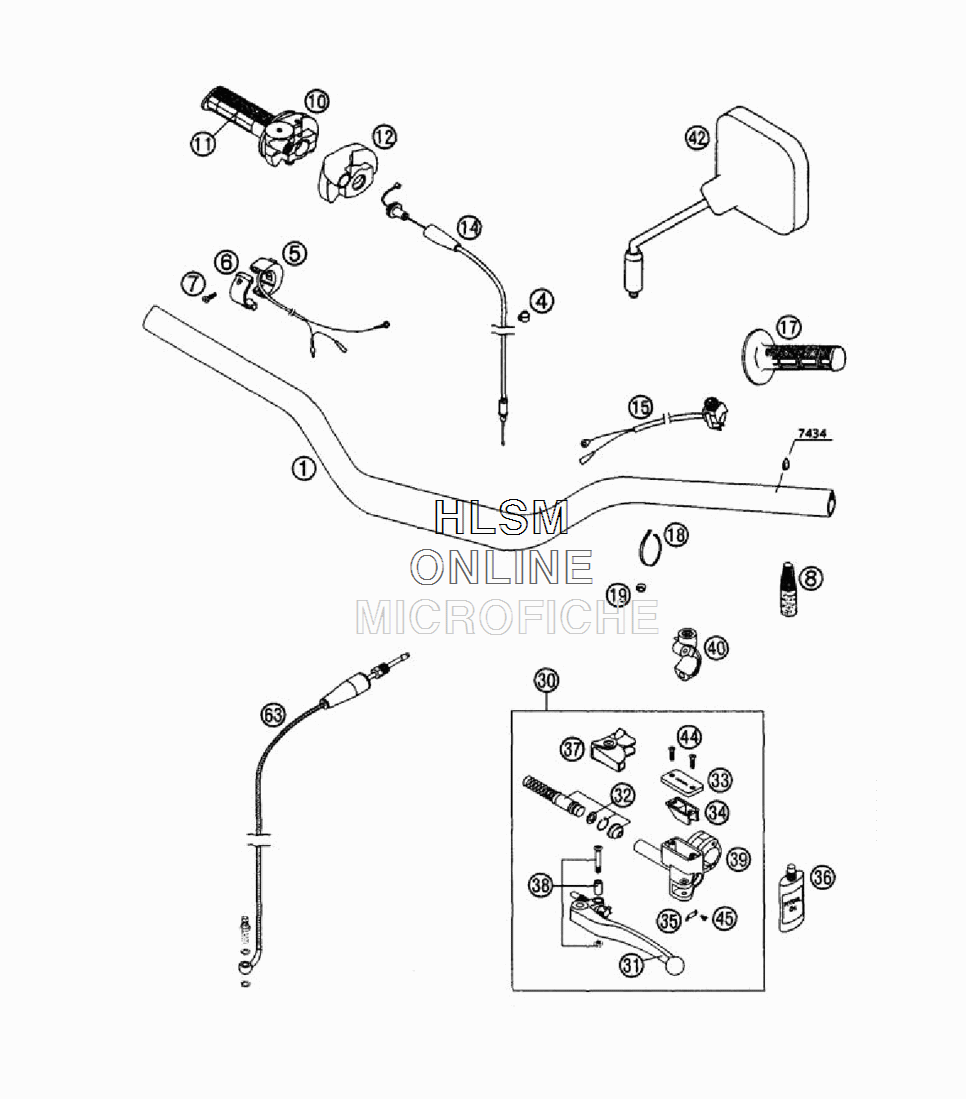

HANDLEBAR W/ CONTROLS для Ktm 200 MXC - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    54802001000 HANDLEBAR D=28MM LOW
    HANDLEBAR D=28MM LOW
  • 1
    59002001000 HANDLEBAR
    HANDLEBAR
  • 4
    57013072000 WIRING HOLDER 12MM
    WIRING HOLDER 12MM
  • 5
    50311074000 ENGINE STOP SWITCH CEV
    ENGINE STOP SWITCH CEV
  • 6
    50311074050 CLAMP ENGINE STOP SWITCH CEV
    CLAMP ENGINE STOP SWITCH CEV
  • 7
    0985040153 FLAT HEAD SCREW DIN7985-M 4X15
    FLAT HEAD SCREW DIN7985-M 4X15
  • 8
    6899792 GLUE CYANACRYLAT 7434
    GLUE CYANACRYLAT 7434
  • 10
    50302010000 THR.TWIST GRIP CPL. W.O.C.
    THR.TWIST GRIP CPL. W.O.C.
  • 11
    50202003000 TWIST GRIP COVER DOMINO BLACK
    TWIST GRIP COVER DOMINO BLACK
  • 12
    50302020000 PROTECTION COVER
    PROTECTION COVER
  • 14
    50302091000 THROTTLE C. DOM./KEIH.
    THROTTLE C. DOM./KEIH.
  • 15
    50311089200 SHORT CIRCUIT BUTTON
    SHORT CIRCUIT BUTTON
  • 17
    50202052000 FIXED GRIP DOMINO BLACK
    FIXED GRIP DOMINO BLACK
  • 18
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 19
    50301089000 SPACER BUSHING 6X10X5
    SPACER BUSHING 6X10X5
  • 30
    50302030100 MASTER CYL. CPL. ZINC COATED
    MASTER CYL. CPL. ZINC COATED
  • 31
    50302031100 CLU. LEVER SHORT CPL.
    CLU. LEVER SHORT CPL.
  • 31
    50302031000 CLUTCH LEVER CPL.
    CLUTCH LEVER CPL.
  • 32
    50302032000 REP. SATZ PISTON CLUT. HYDR.
    REP. SATZ PISTON CLUT. HYDR.
  • 33
    50302033100 COVER HYD.CLUTCH ZINC COATED
    COVER HYD.CLUTCH ZINC COATED
  • 34
    50302034000 RUBBER FOR RESERVOIR
    RUBBER FOR RESERVOIR
  • 35
    50302035000 SPRING PLATE FOR LEVER
    SPRING PLATE FOR LEVER
  • 36
    50302036000 OIL FOR HYD. CLUTCH 50ML
    OIL FOR HYD. CLUTCH 50ML
  • 37
    50302037000 PROTECT.CAP FOR LEVER PERCH
    PROTECT.CAP FOR LEVER PERCH
  • 38
    50302038000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 39
    50302030150 CLAMP WITH PIN ZINC COATED
    CLAMP WITH PIN ZINC COATED
  • 40
    59002044000 CLAMP MIRROR WITH PIN
    CLAMP MIRROR WITH PIN
  • 42
    58012040000 REAR MIRROR L/S
    REAR MIRROR L/S
  • 42
    58012140000 REAR MIRROR R/S
    REAR MIRROR R/S
  • 44
    0965040123 FLAT HEAD SCREW DIN0965-M 4X12
    FLAT HEAD SCREW DIN0965-M 4X12
  • 45
    0984030063 AH SCREW DIN7984-M 3X 6
    AH SCREW DIN7984-M 3X 6
  • 63
    50332063100 CLUTCH PIPE
    CLUTCH PIPE
