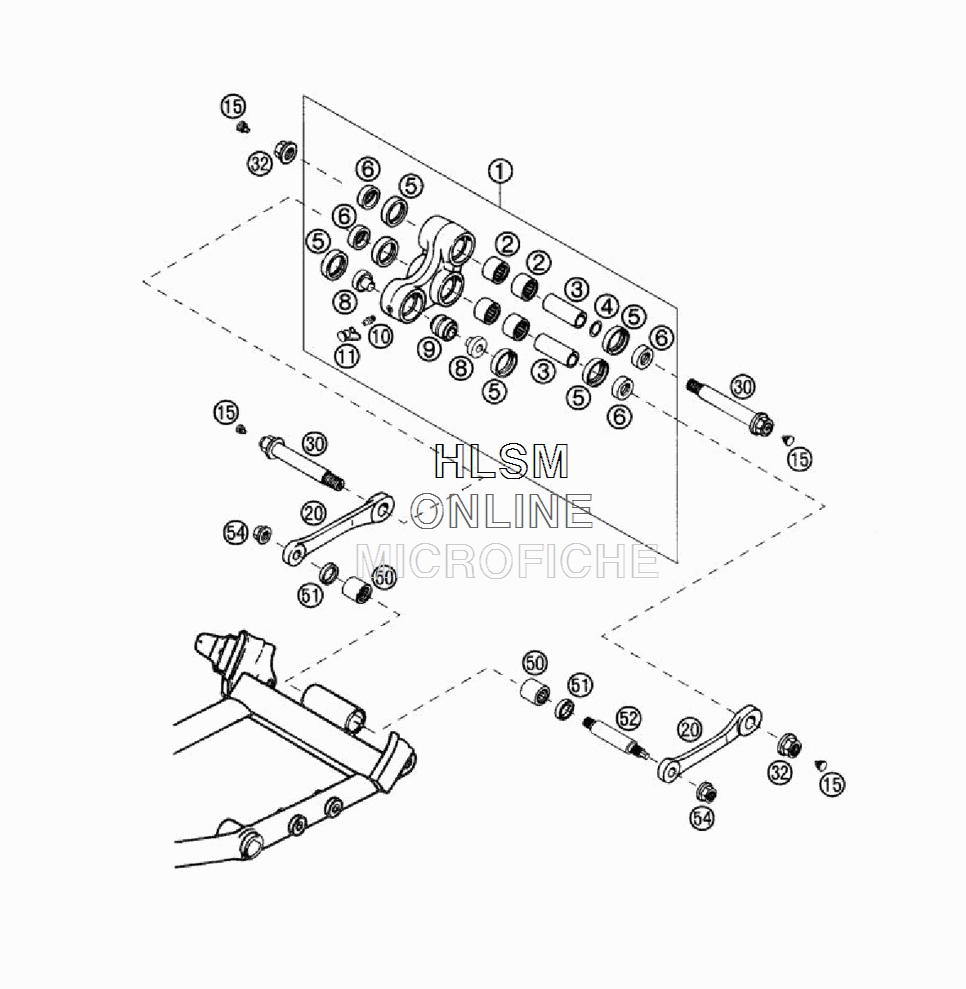

PRO LEVER SYSTEM для Ktm LC4 640 Six Days - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    58303080244 ROCKER ARM CPL.
    ROCKER ARM CPL.
  • 2
    54603097000 NEEDLE BUSH HK 2016
    NEEDLE BUSH HK 2016
  • 3
    54603081000 BEARING SLEEVE 15 X 20 X 48
    BEARING SLEEVE 15 X 20 X 48
  • 4
    54603090010 STEEL WASHER 15,2X19X0,1
    STEEL WASHER 15,2X19X0,1
  • 4
    54603090020 STEEL WASHER 15,2X19X0,2
    STEEL WASHER 15,2X19X0,2
  • 4
    54603090030 STEEL WASHER 15,2X19X0,3
    STEEL WASHER 15,2X19X0,3
  • 5
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 6
    58303090000 SPAC.F.SHAFT SEALRING 15X25X11
    SPAC.F.SHAFT SEALRING 15X25X11
  • 8
    58303085100 BUSHING FOR BEARING LINK
    BUSHING FOR BEARING LINK
  • 9
    54203083050 LINK BEARING 12X25X22(16-1061)
    LINK BEARING 12X25X22(16-1061)
  • 10
    72003035000 GREASE FITTING M6 STRAIGHT
    GREASE FITTING M6 STRAIGHT
  • 11
    53003099000 CAP WITH LOOP RED
    CAP WITH LOOP RED
  • 15
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 20
    58303083000 LINKAGE ARM L=127MM
    LINKAGE ARM L=127MM
  • 30
    54603182044 BOLT CPL. 15X98MM / M14X1,5
    BOLT CPL. 15X98MM / M14X1,5
  • 32
    54603015000 SELF LOCKING NUT M14X1,5 WS=19
    SELF LOCKING NUT M14X1,5 WS=19
  • 50
    56503195100 NEEDLE BEARING HK 1816
    NEEDLE BEARING HK 1816
  • 51
    0760182442 SHAFT SEAL RING 18X24X4
    SHAFT SEAL RING 18X24X4
  • 52
    58303084100 BEARING BOLT CONNECTING ROD
    BEARING BOLT CONNECTING ROD
  • 54
    49103415000 SELF LOCK. NUT M12X1,75 WS=17
    SELF LOCK. NUT M12X1,75 WS=17
