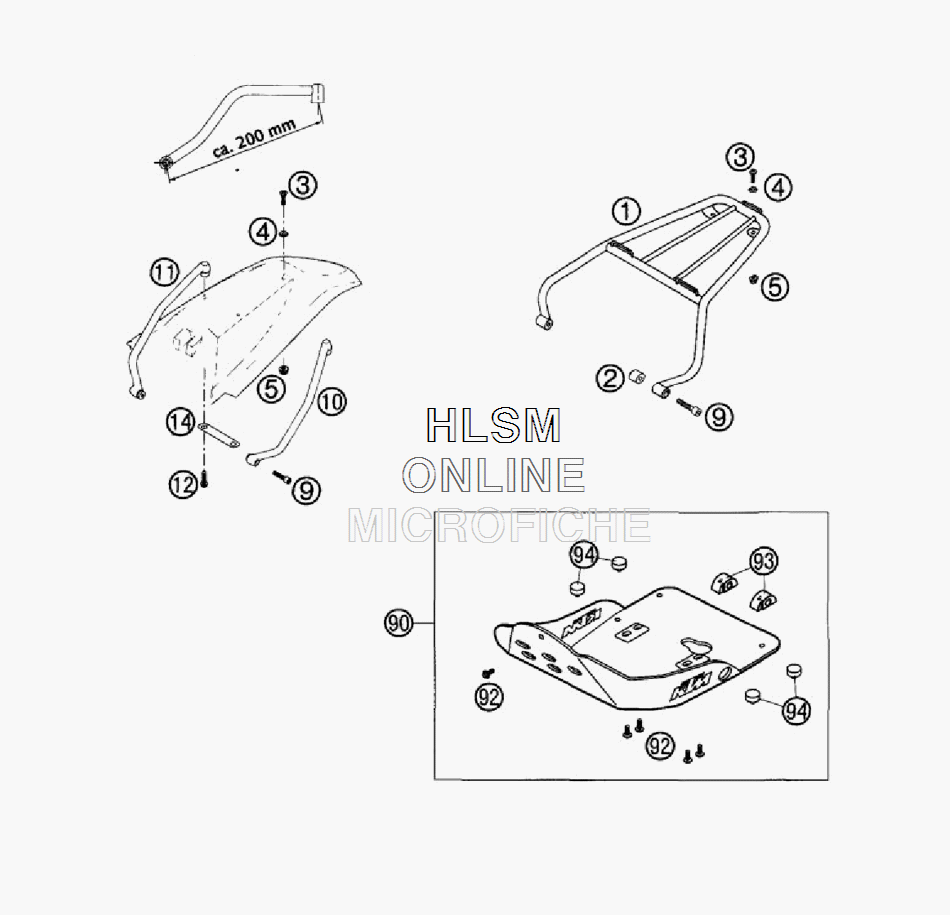

ACCESSORIES для Ktm LC4 640 Six Days - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    58412010200 BAGGAGE CARRIER SILVER
    BAGGAGE CARRIER SILVER
  • 2
    58412011100 BUSH FOR BAGGAGE CARRIER
    BUSH FOR BAGGAGE CARRIER
  • 3
    0991060203 FLAT HEAD SCREW DIN7991-M 6X20
    FLAT HEAD SCREW DIN7991-M 6X20
  • 4
    40006006000 WASHER 6MM
    WASHER 6MM
  • 5
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 9
    0912060353 AH SCREW DIN0912-M 6X35
    AH SCREW DIN0912-M 6X35
  • 10
    58412008000 HANDLE L/S BLACK
    HANDLE L/S BLACK
  • 11
    58412009000 HANDLE R/S BLACK
    HANDLE R/S BLACK
  • 12
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 14
    58412008052 METAL SHEET F. HANDLE BLACK
    METAL SHEET F. HANDLE BLACK
  • 90
    58412099044 ENGINE PROTECT.LIMITED CPL.
    ENGINE PROTECT.LIMITED CPL.
  • 92
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 93
    58003012200 ENGINE PROTECTOR BRACKET
    ENGINE PROTECTOR BRACKET
  • 94
    54308042000 RUBBER BUFFER
    RUBBER BUFFER
