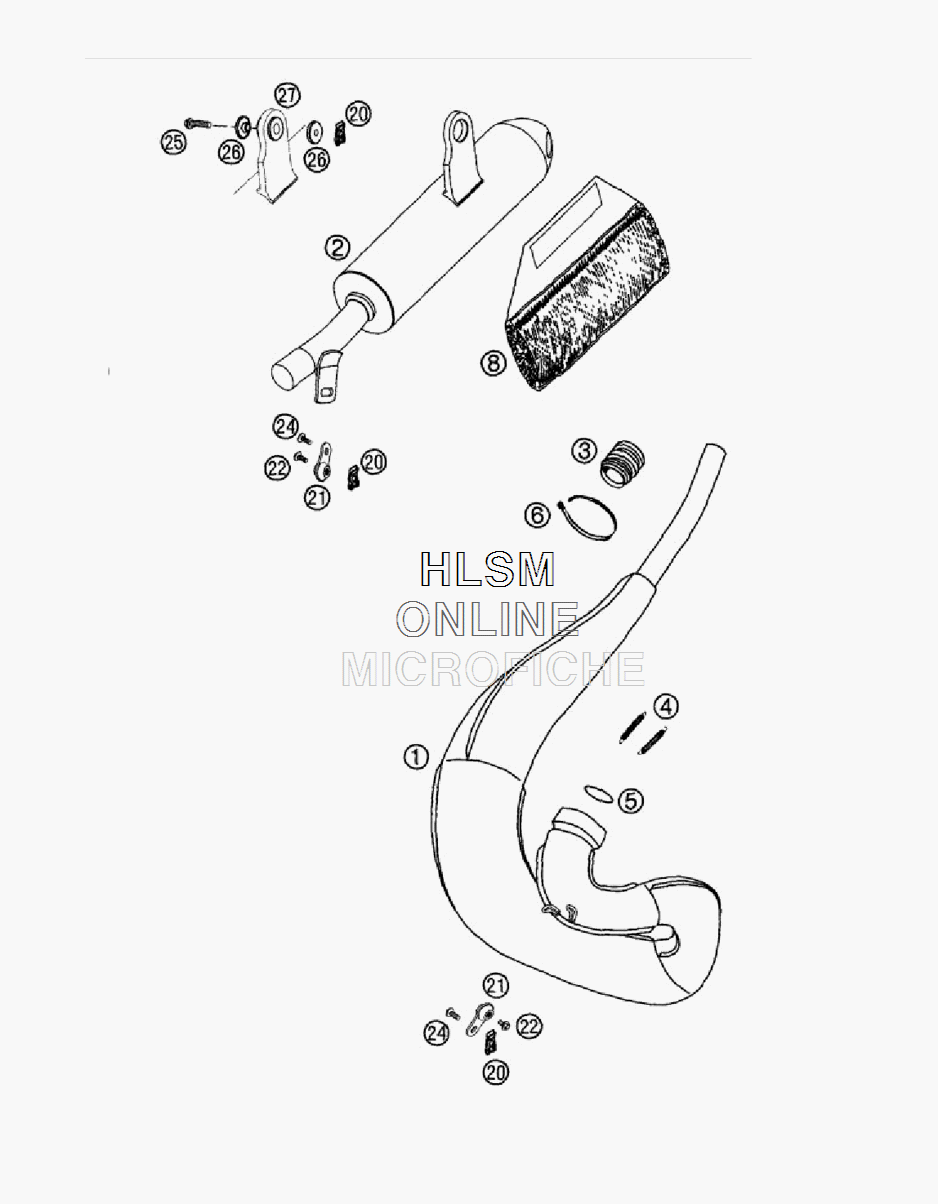

EXHAUST SYSTEM для Ktm 50 SX Pro Sr - 2002 года выпуска`
-
№АртикулНазвание
-
145105007000 EXHAUST PIPEEXHAUST PIPE
-
245105079000 SILENCERSILENCER
-
245105079100 SILENCERSILENCER
-
354605057000 RUBBER SLEEVE D=21MM123MMRUBBER SLEEVE D=21MM123MM
-
450305016000 TEN.SPRING L=55MM EY.MOVEABLETEN.SPRING L=55MM EY.MOVEABLE
-
50770320030 O-RING 32,00X3,00 VITONO-RING 32,00X3,00 VITON
-
644011076200 CABLE TIE 200MMCABLE TIE 200MM
-
845105079056 ROCKWOOL PREFOMED 50 (110 GRAMM TOTAL WEIGHT 2002)ROCKWOOL PREFOMED 50 (110 GRAMM TOTAL WEIGHT 2002)
-
2054603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
2150305012000 SWINGELEMENT FOR EX.PIPESWINGELEMENT FOR EX.PIPE
-
220015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
240014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
250015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
2654605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
2754605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
Все узлы модели:
- BRAKE CALIPER FRONT
- CARBURETOR DELLORTO PHBG 19 BS
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CYLINDER HEAD
- DECAL
- ENGINE CASE
- • EXHAUST SYSTEM
- FRAME W/ SIDE STAND
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- KICKSTARTER WITH BACKWARDS OPERATION
- MASK W/ FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- SHOCK ABSORBER - DISASSEMBLED
- SPECIAL TOOLS
- SWINGARM W/ SHOCK ABSORBER
- TANK - SEAT - COVER
- TRANSMISSION
