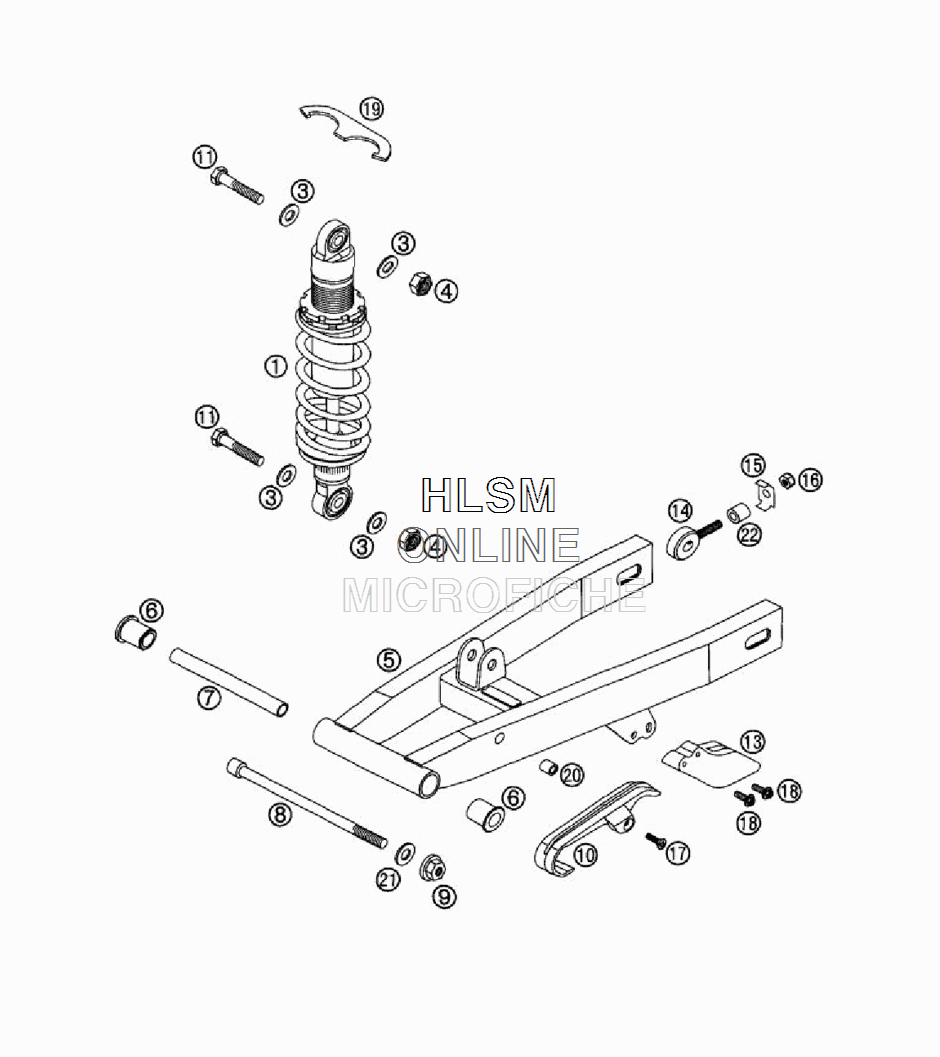

SWINGARM W/ SHOCK ABSORBER для Ktm 50 SX Pro Sr - 2002 года выпуска
-
№АртикулНазвание
-
10318W911 MONOSHOCK WPMONOSHOCK WP
-
30125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
40982100003 SELF LOCK.NUT DIN0982-M10 HIGHSELF LOCK.NUT DIN0982-M10 HIGH
-
545104030100 SWING ARMSWING ARM
-
645004031000 BEARING BUSH L=30 MMBEARING BUSH L=30 MM
-
745004039000 SPACING TUBE 10X13X140 MMSPACING TUBE 10X13X140 MM
-
845103014000 SWING ARM BOLT M10X165SWING ARM BOLT M10X165
-
949009082000 SELF LOCKING NUT M10 WS=17SELF LOCKING NUT M10 WS=17
-
1045104066000 CHAIN SLID. GUARD FRO.CHAIN SLID. GUARD FRO.
-
110931100453 HH SCREW DIN0931-M10X45HH SCREW DIN0931-M10X45
-
1345104070000 CHAIN GUARDCHAIN GUARD
-
1445010083000 CHAIN ADJUSTERCHAIN ADJUSTER
-
1545010083060 SUPPORTING BRACKETSUPPORTING BRACKET
-
160985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
170991060203 FLAT HEAD SCREW DIN7991-M 6X20FLAT HEAD SCREW DIN7991-M 6X20
-
180017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
-
1945004010090 HOOK WRENCHHOOK WRENCH
-
2055003139900 BLIND RIVET INT..THREAD M6 STE.BLIND RIVET INT..THREAD M6 STE.
-
2131004001100 WASHER 10,3 X 21 X 3WASHER 10,3 X 21 X 3
-
2257103225000 BUSHING 8,2 X 12 X 10BUSHING 8,2 X 12 X 10
