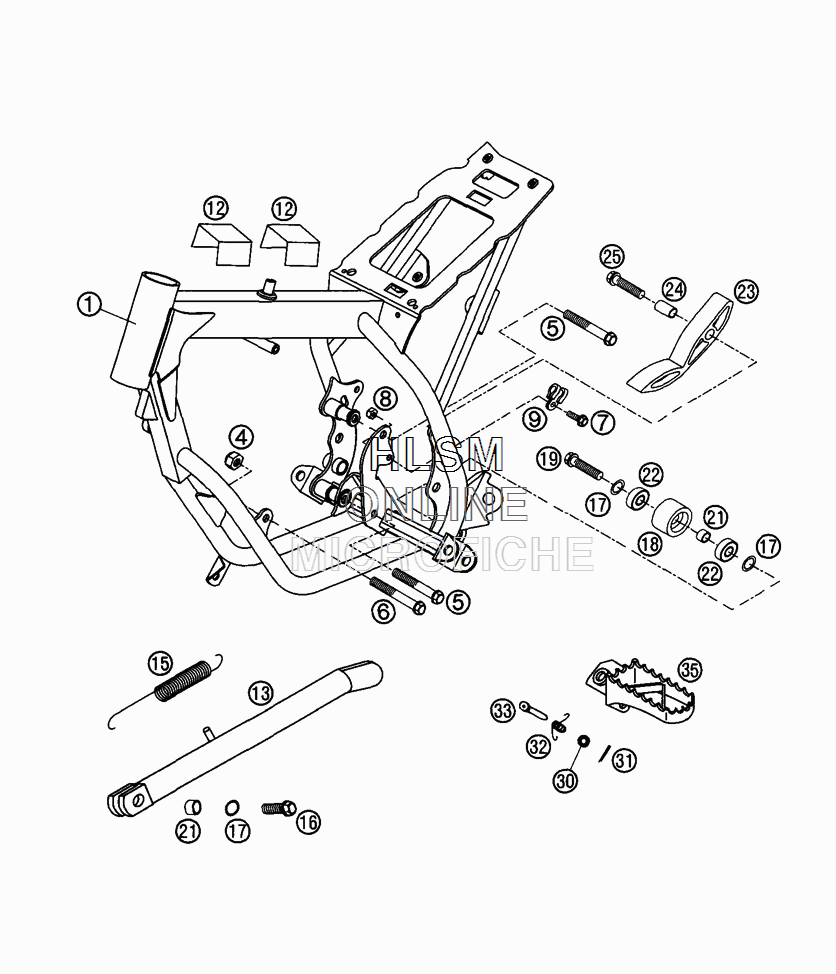

FRAME W/ SUB FRAME для Ktm 50 SX Mini Adventure - 2002 года выпуска
-
№АртикулНазвание
-
145103001200 FRAMEFRAME
-
454310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
50015080603 HH COLLAR SCREW M 8X60 WS=10HH COLLAR SCREW M 8X60 WS=10
-
60015080653 HH COLLAR SCREW M8X65 SW10HH COLLAR SCREW M8X65 SW10
-
70015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
80985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
945001070000 BRAKE CABLE GUIDEBRAKE CABLE GUIDE
-
1258711054050 METAMOLL FOR BATTERY BRACKETMETAMOLL FOR BATTERY BRACKET
-
134510302310090 SIDE STAND L=270MM SILVERSIDE STAND L=270MM SILVER
-
1551003021000 SIDESTAND SPRING LONGSIDESTAND SPRING LONG
-
160015080203 HH COLLAR SCREW M 8X20 WS=10HH COLLAR SCREW M 8X20 WS=10
-
1736003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
1850203053000 CHAIN ROLL D=30MMCHAIN ROLL D=30MM
-
190015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
2174003021000 BUSHING 8 X 12 X 6,5BUSHING 8 X 12 X 6,5
-
220625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
2351103053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
2451103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
250015080253 HH COLLAR SCREW M 8X25 WS=10HH COLLAR SCREW M 8X25 WS=10
-
300125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
310094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
3254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
3354603044000 BOLT FOR FOOTREST 9,8 X 50BOLT FOR FOOTREST 9,8 X 50
-
355460304000090 FOOT REST L/S SILVERFOOT REST L/S SILVER
-
355460314000090 FOOT REST R/S SILVERFOOT REST R/S SILVER
