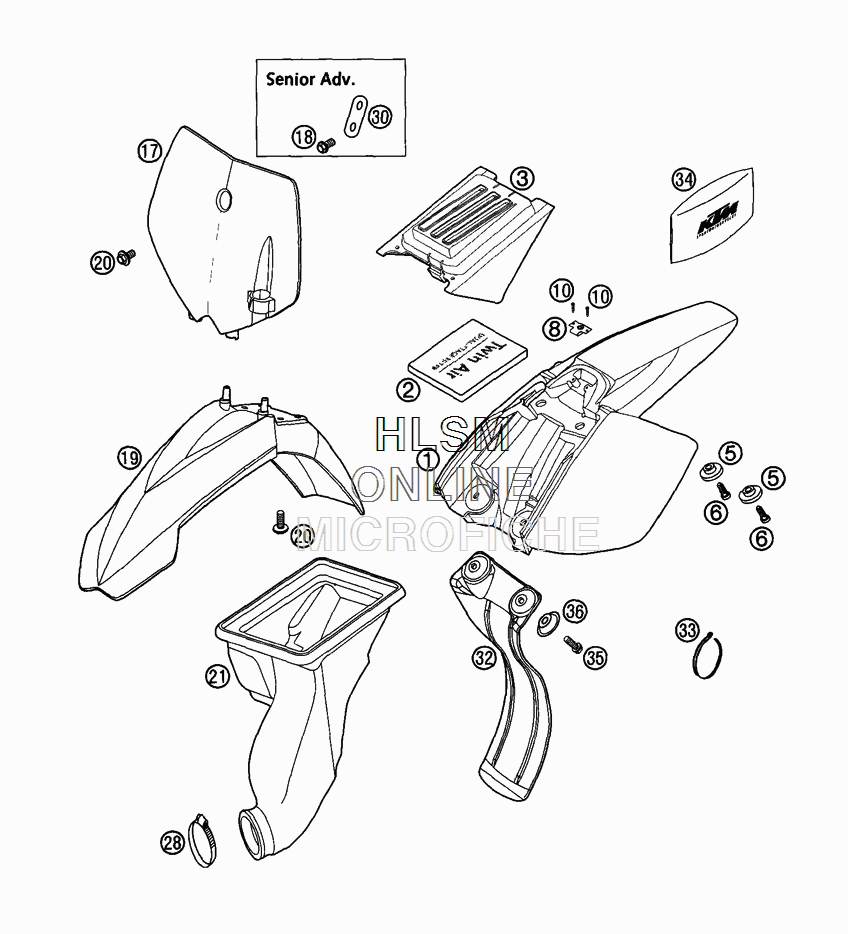

MASK W/ FENDER для Ktm 50 SX Jr Adventure - 2002 года выпуска`
-
№АртикулНазвание
-
14510801300030 REAR PART 50 MINI BLACKREAR PART 50 MINI BLACK
-
245106015000 AIR FILTER 134X96X15 MMAIR FILTER 134X96X15 MM
-
345106012000 FILTER COVERFILTER COVER
-
545108013050 BUSH F.REAR P.BUSH F.REAR P.
-
60016050153 SPECIAL SCREW Z 5X16SPECIAL SCREW Z 5X16
-
845007040050 THRUST BEARING QUICK RELEASETHRUST BEARING QUICK RELEASE
-
100981350163 SHEET MET.SCR.DIN7981- 3,5X16SHEET MET.SCR.DIN7981- 3,5X16
-
174510800700004 NUMBER PLATENUMBER PLATE
-
180015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
194510801000004 FENDER FRONTFENDER FRONT
-
200014060103 HH COLLAR SCREW M6X1O WS=8HH COLLAR SCREW M6X1O WS=8
-
2145106026100 CARBUR.CONNEC.BOOT SXRCARBUR.CONNEC.BOOT SXR
-
2810001120000 CLAMP 25-40 SGT 4CLAMP 25-40 SGT 4
-
3045108007050 BRACKET FOR NUMBER PLATEBRACKET FOR NUMBER PLATE
-
3245106010100 SPLASH PROTECTOR SENIORSPLASH PROTECTOR SENIOR
-
3344011076305 CABLE TIE 290MMCABLE TIE 290MM
-
3445029099000 TOOL SETTOOL SET
-
350015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3672210079000 BUCKETBUCKET
