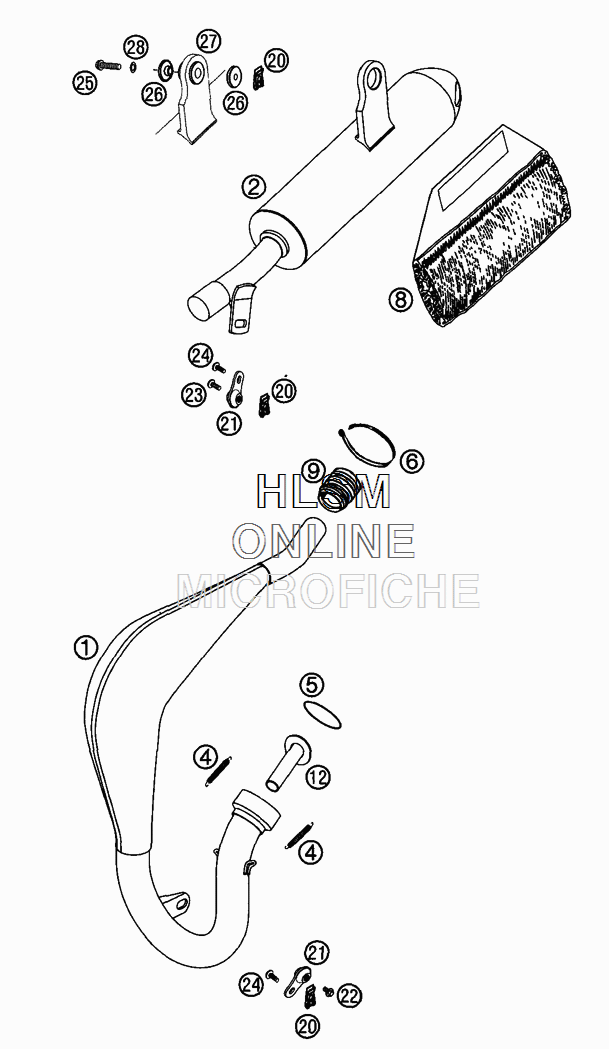

EXHAUST SYSTEM для Ktm 50 SX Jr Adventure - 2002 года выпуска
-
№АртикулНазвание
-
145105008000 EXHAUST PIPEEXHAUST PIPE
-
245105079100 SILENCER SX JUNIORSILENCER SX JUNIOR
-
245105079000 SILENCER SXSILENCER SX
-
450305016000 TENSION SPRING L=55MM MOVEABLETENSION SPRING L=55MM MOVEABLE
-
50770320030 O-RING 32,00X3,00 VITONO-RING 32,00X3,00 VITON
-
644011076200 CABLE TIE 200MMCABLE TIE 200MM
-
845105079056 ROCKWOOL PREFOMED (110 GRAMM TOTAL WEIGHT)ROCKWOOL PREFOMED (110 GRAMM TOTAL WEIGHT)
-
954605057000 RUBBER SLEEVE D=21MM/23MMRUBBER SLEEVE D=21MM/23MM
-
1245105083000 EXHAUST THROTTLE CPL.EXHAUST THROTTLE CPL.
-
2054603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
2150305012000 SWINGELEMENT FOR EX. PIPESWINGELEMENT FOR EX. PIPE
-
220014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
230015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
240014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
250015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
2654605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
2754605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
280137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
