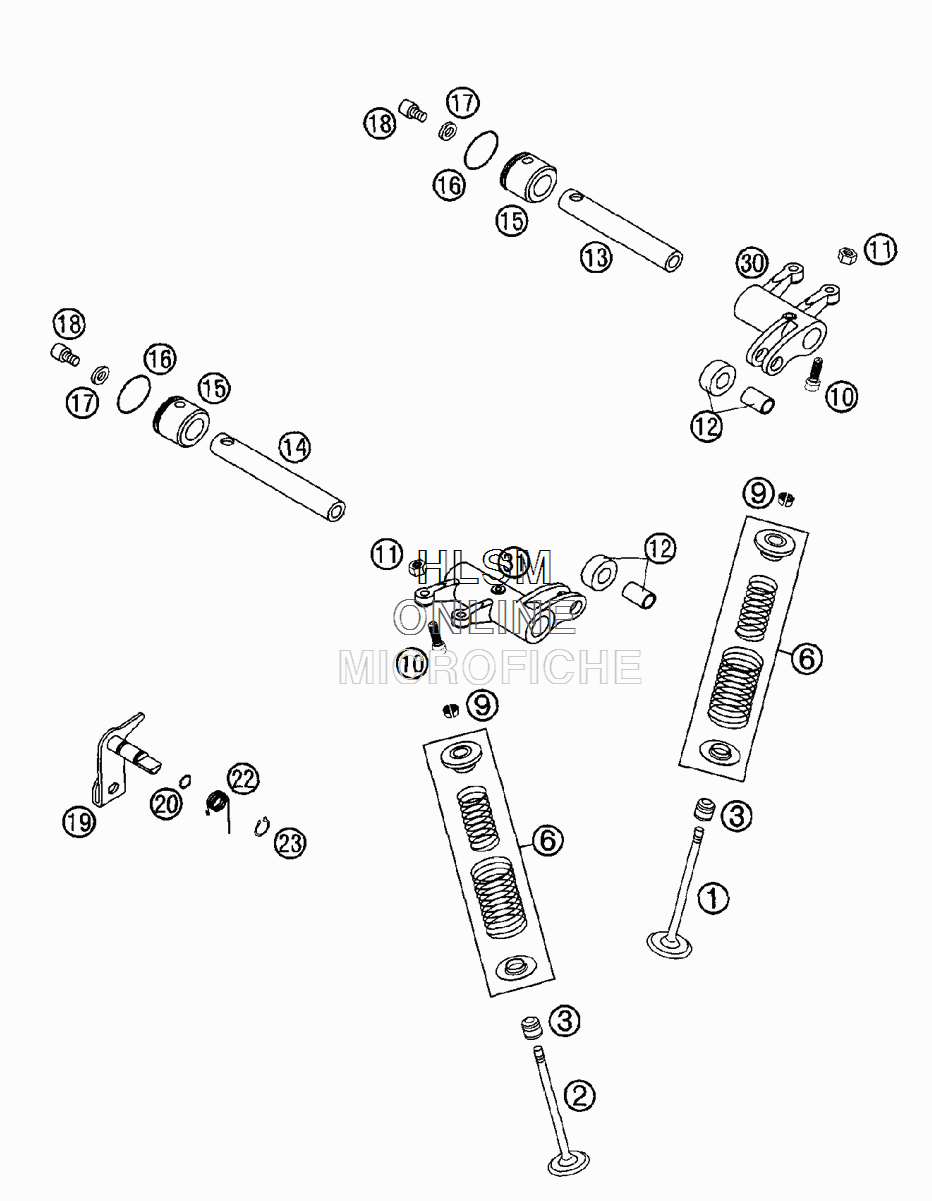

VALVE DRIVE для Ktm 400 SX RFS - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    59036030000 INTAKE VALVE D=35MM
    INTAKE VALVE D=35MM
  • 2
    59036031000 EXHAUST VALVE D=30MM
    EXHAUST VALVE D=30MM
  • 3
    59036027000 VALVE-STEAM SEALING
    VALVE-STEAM SEALING
  • 6
    59036028144 VALVE SPRING KIT (1X)
    VALVE SPRING KIT (1X)
  • 9
    59036033000 VALVE COLLET KK 6 H
    VALVE COLLET KK 6 H
  • 10
    59036062000 ADJUSTMENT SCREW M6X0,75
    ADJUSTMENT SCREW M6X0,75
  • 11
    59036062100 NUT M6X0,75
    NUT M6X0,75
  • 12
    59036061090 ROCKER ARM ROLLER CPL. RACING
    ROCKER ARM ROLLER CPL. RACING
  • 13
    59036056000 ROCKER ARM SHAFT INTAKE 82MM
    ROCKER ARM SHAFT INTAKE 82MM
  • 14
    59036057000 ROCKER ARM SHAFT EXHAUST 94MM
    ROCKER ARM SHAFT EXHAUST 94MM
  • 15
    59036061095 END CAP ROCKER ARM SHAFT
    END CAP ROCKER ARM SHAFT
  • 16
    0770191016 O-RING 19,10X1,60 NBR 70
    O-RING 19,10X1,60 NBR 70
  • 17
    59036060010 SHIM ALU 5,2X10X2
    SHIM ALU 5,2X10X2
  • 18
    0912050083 AH SCREW DIN0912-M 5X 8
    AH SCREW DIN0912-M 5X 8
  • 19
    59036050000 DECOMPRESSION SHAFT CPL.
    DECOMPRESSION SHAFT CPL.
  • 20
    0770051016 O-RING 5,10X1,60 NBR 70
    O-RING 5,10X1,60 NBR 70
  • 22
    59036059000 DECOMPRESSION LEVER SPRING
    DECOMPRESSION LEVER SPRING
  • 23
    0471080000 CIRCLIP DIN0471- 8X0,8
    CIRCLIP DIN0471- 8X0,8
  • 30
    59036060100 ROCKER ARM INTAKE
    ROCKER ARM INTAKE
  • 31
    59036061100 ROCKER ARM EXHAUST
    ROCKER ARM EXHAUST
