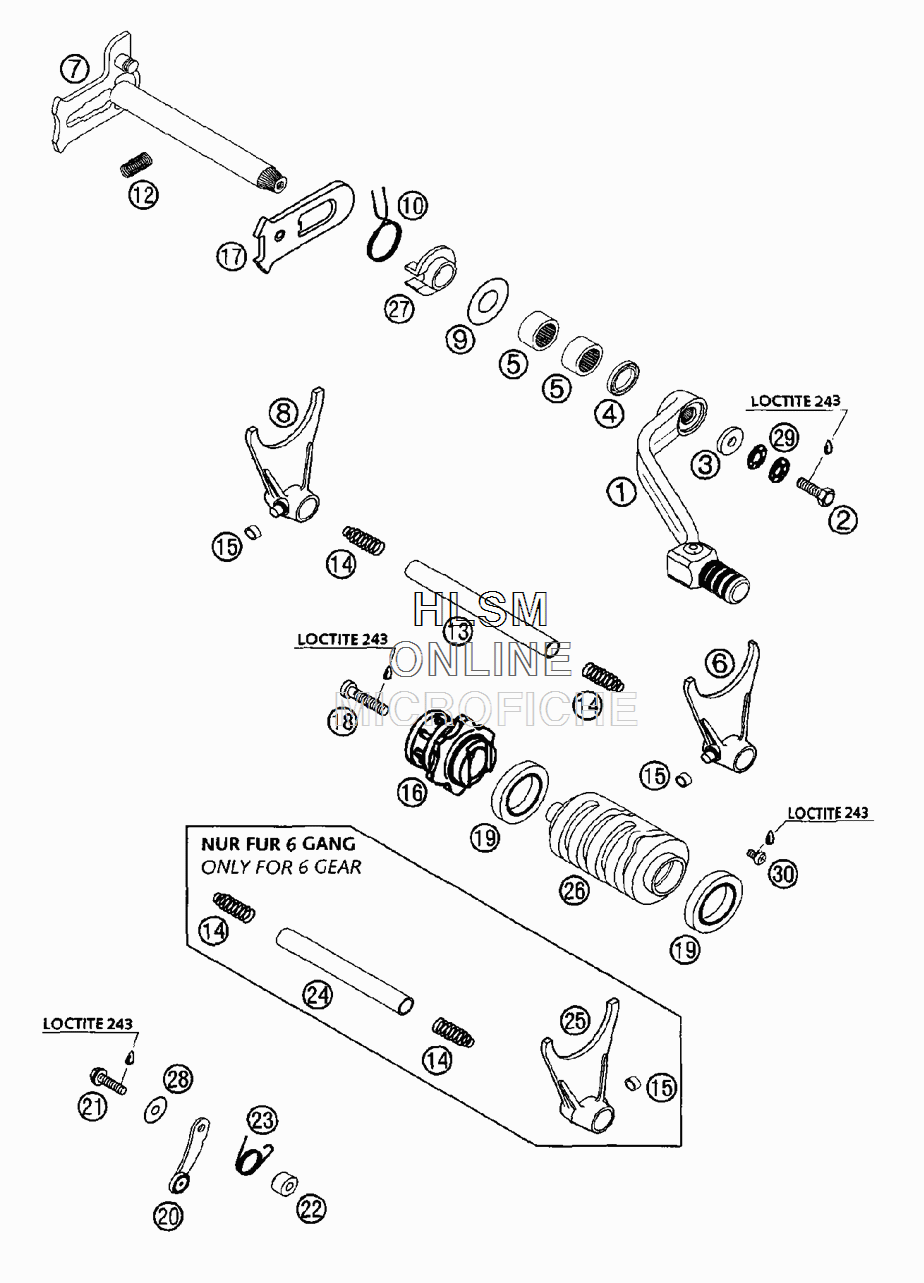

SHIFTING MECHANISM для Ktm 400 SX RFS - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    59034031000 SHIFTING LEVER CPL.RACING
    SHIFTING LEVER CPL.RACING
  • 2
    0933060203 HH SCREW DIN0933-M 6X20
    HH SCREW DIN0933-M 6X20
  • 3
    50232050001 STEEL WASHER 6X17X3
    STEEL WASHER 6X17X3
  • 4
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 5
    54632095000 NEEDLE BEAR.HK 1412 14,6X20X12
    NEEDLE BEAR.HK 1412 14,6X20X12
  • 6
    59034002000 SHIFT FORK 2./4.GEAR
    SHIFT FORK 2./4.GEAR
  • 7
    59034005000 SHIFT SHAFT CPL. RACING
    SHIFT SHAFT CPL. RACING
  • 8
    59034003000 SHIFT FORK 1./3.GEAR.
    SHIFT FORK 1./3.GEAR.
  • 9
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 10
    54634014100 RETURN SPRING 2,2MM
    RETURN SPRING 2,2MM
  • 12
    56534013100 SPANNER SPRING 0,8MM
    SPANNER SPRING 0,8MM
  • 13
    59034020000 SHIFT RAIL 11,8X105MM
    SHIFT RAIL 11,8X105MM
  • 14
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 15
    50334018100 SHIFTING ROLLER 6X8X5,2
    SHIFTING ROLLER 6X8X5,2
  • 16
    59034015044 SHIFT LOCATING DRUM CPL.
    SHIFT LOCATING DRUM CPL.
  • 17
    54634008000 SLIDING PLATE
    SLIDING PLATE
  • 18
    0984060302 AH SCREW DIN7984 M6X30
    AH SCREW DIN7984 M6X30
  • 19
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 20
    54634024144 LOCKING LEVER CPL
    LOCKING LEVER CPL
  • 21
    0015050203 HH COLLAR SCREW M 5X20 WS=8
    HH COLLAR SCREW M 5X20 WS=8
  • 22
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 23
    59034023000 SPRING 2,3MM
    SPRING 2,3MM
  • 24
    59034019000 SHIFT RAIL 11,8X89MM
    SHIFT RAIL 11,8X89MM
  • 25
    59034001000 SHIFT FORK 5./6.GEAR
    SHIFT FORK 5./6.GEAR
  • 26
    59034012000 SHIFTROLLER 6-GEAR
    SHIFTROLLER 6-GEAR
  • 27
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 28
    71008012000 WASHER 5,3X17X1,5MM
    WASHER 5,3X17X1,5MM
  • 29
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 30
    0985050083 FLAT HEAD SCREW DIN7985-M 5X 8
    FLAT HEAD SCREW DIN7985-M 5X 8
