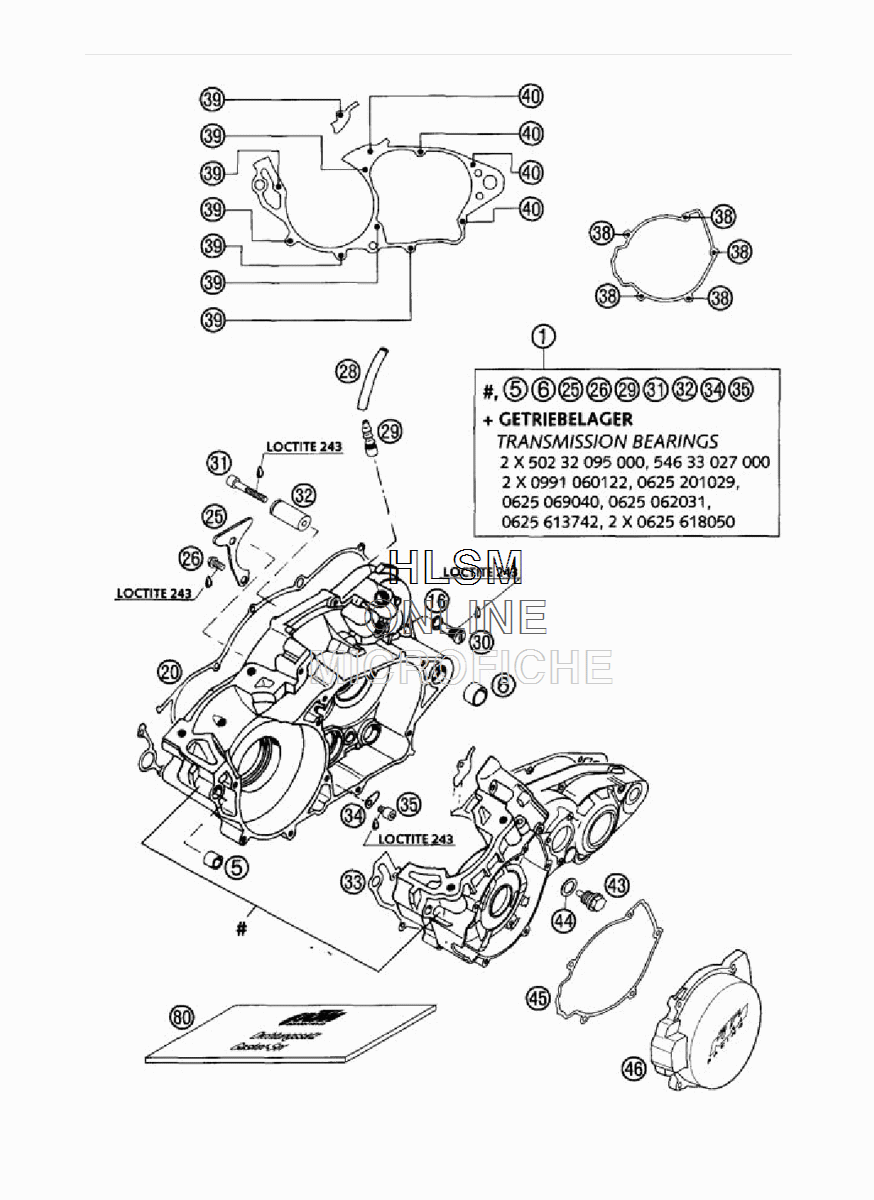

ENGINE CASE для Ktm 380 EXC - 2002 года выпуска`
-
№АртикулНазвание
-
154730000144 ENGINE CASE CPL. W.TRAN.BEARENGINE CASE CPL. W.TRAN.BEAR
-
554630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
650130027000 DOWEL 19 X15,1X12DOWEL 19 X15,1X12
-
1658038032110 CU-SEAL RING 9 X 13 X1CU-SEAL RING 9 X 13 X1
-
2054630025100 CLUTCH COVER GASKET 0,5MMCLUTCH COVER GASKET 0,5MM
-
2554630017000 RETAINING PLATERETAINING PLATE
-
260015060123 HH COLLAR SCREW M6X12 WS=8HH COLLAR SCREW M6X12 WS=8
-
2855007016001 PVC-HOSE 7X10 PER METREPVC-HOSE 7X10 PER METRE
-
2954630022000 BLEEDER FLANGEBLEEDER FLANGE
-
3054530001150 FLAT HEAD SCREW WITH PINFLAT HEAD SCREW WITH PIN
-
310912060404 AH SCREW DIN0912-M6X40AH SCREW DIN0912-M6X40
-
3259033018000 BEARING PIN 6X17X44BEARING PIN 6X17X44
-
3354630039200 CASE GASKET 0,5MMCASE GASKET 0,5MM
-
3454634049000 RETAINING PLATERETAINING PLATE
-
350912060083 AH SCREW DIN0912-M 6X 8AH SCREW DIN0912-M 6X 8
-
380015050163 HH COLLAR SCREW M5X16 WS=8HH COLLAR SCREW M5X16 WS=8
-
390015060453 HH COLLAR SCREW M6X45 WS=8HH COLLAR SCREW M6X45 WS=8
-
400015060603 HH COLLAR SCREW M6X60 WS=8HH COLLAR SCREW M6X60 WS=8
-
4358030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
4458038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
4554730040100 IGNIT.COVER GASKET 0,5MMIGNIT.COVER GASKET 0,5MM
-
465473000210098 IGNITION COVERIGNITION COVER
-
8054630099000 GASKET SETGASKET SET
