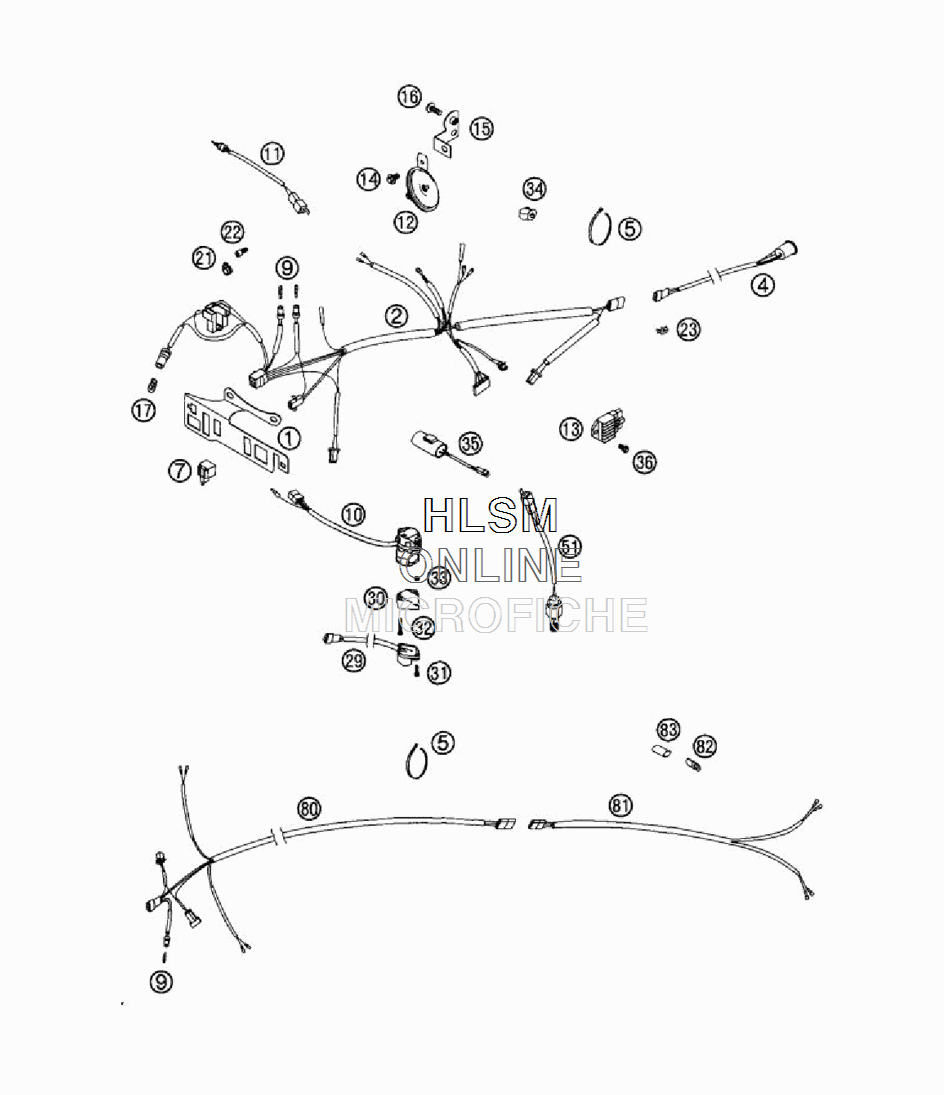

WIRING HARNESS (EU/AUS) для Ktm 380 EXC - 2002 года выпуска
-
№АртикулНазвание
-
159011083000 SUPPORT BRACKET BLACKSUPPORT BRACKET BLACK
-
250311075700 WIRING HARNESSWIRING HARNESS
-
450311076000 WIRING HARNESS REARWIRING HARNESS REAR
-
544011076200 CABLE TIE 200MMCABLE TIE 200MM
-
544011076305 CABLE TIE 290MMCABLE TIE 290MM
-
744611207200 FLASHER UNIT SUMITOMO ADV.FLASHER UNIT SUMITOMO ADV.
-
949111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
1050311070000 H. LIGHT SWITCH CEV 2/4TAKTH. LIGHT SWITCH CEV 2/4TAKT
-
1050311070100 H.LIGHT SWITCH CEVH.LIGHT SWITCH CEV
-
1150311050000 BRAKE LIGHT SWITCH FRONTBRAKE LIGHT SWITCH FRONT
-
1250311060000 DC HORN 12V K80/LDC HORN 12V K80/L
-
1350311034000 VOLTAGE REGULA. 12VVOLTAGE REGULA. 12V
-
140014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
1559011061000 BRACKETBRACKET
-
160014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
1749011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
2157013070100 PVC-CLAMP 5/16" BLACKPVC-CLAMP 5/16" BLACK
-
220912050083 AH SCREW DIN0912-M 5X 8AH SCREW DIN0912-M 5X 8
-
2357013072000 WIRING HOLDER 12MM 0210WIRING HOLDER 12MM 0210
-
2357013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
2950311029000 FLASHER SWITCH CEVFLASHER SWITCH CEV
-
3013011070060 ADAPTER FOR FLASHER SWITCHADAPTER FOR FLASHER SWITCH
-
310985040163 FLAT HEAD SCREW DIN7985-M 4X16FLAT HEAD SCREW DIN7985-M 4X16
-
320084040223 CYL.HEAD SCREW DIN0084-M 4X22ACYL.HEAD SCREW DIN0084-M 4X22A
-
330934040003 HEXAGON NUT DIN0934-M 4HEXAGON NUT DIN0934-M 4
-
3458111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
3550311035000 CONDENSATOR 2200MF ADP-48CONDENSATOR 2200MF ADP-48
-
360015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
5150311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
8059011080000 FLASH.WIRINGHARNESS FRONTFLASH.WIRINGHARNESS FRONT
-
8159011081000 FLASH.WIRINGHARNESS REARFLASH.WIRINGHARNESS REAR
-
8250031003000 RETAINING PLATERETAINING PLATE
-
8350311025030 SHRINK HOSE 6,4/3,2 L=30 MMSHRINK HOSE 6,4/3,2 L=30 MM
