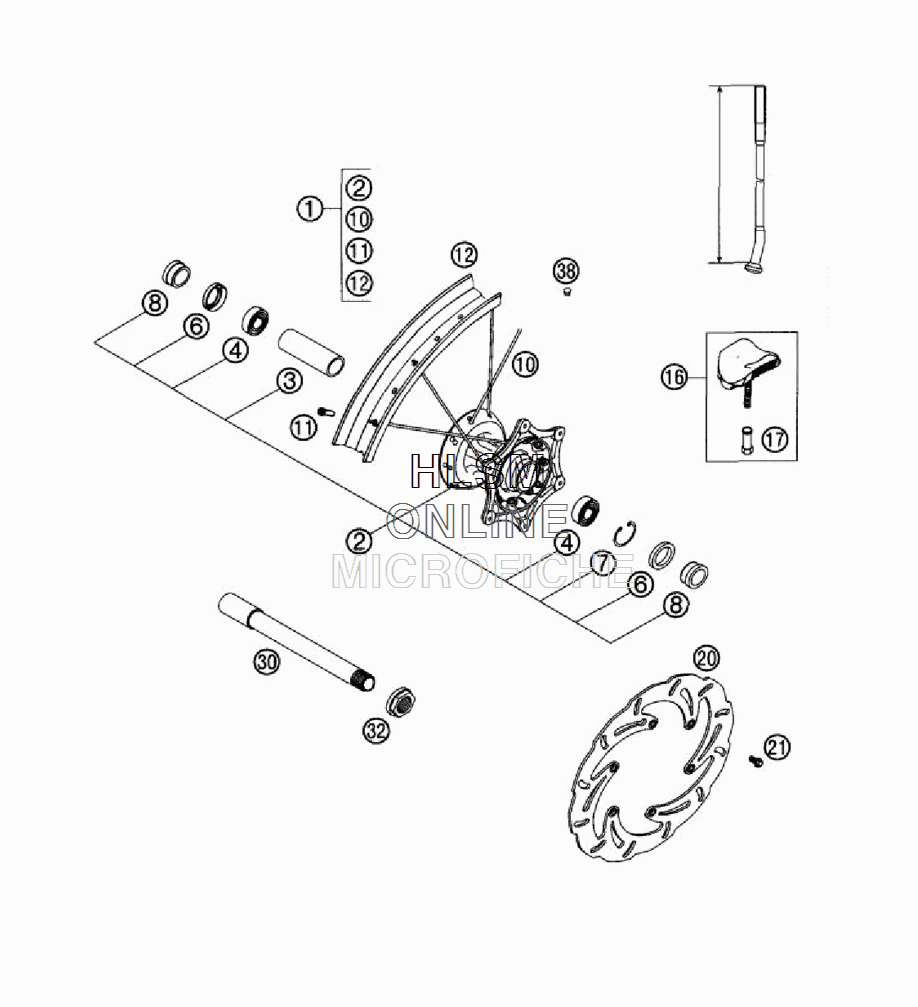

FRONT WHEEL - SX для Ktm 300 MXC - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    50309001144 FRONTWHEEL 1,6X21" DID
    FRONTWHEEL 1,6X21" DID
  • 3
    50309011000 BEAR. SPACERTUBE 20,5X25X80,3
    BEAR. SPACERTUBE 20,5X25X80,3
  • 4
    0625069047 GROOV.BALL BEAR.6904 2RSRC3
    GROOV.BALL BEAR.6904 2RSRC3
  • 6
    0760263770 SHAFT SEAL RING 26X37X7 ASL
    SHAFT SEAL RING 26X37X7 ASL
  • 7
    0472037154 LOCK RING DIN0472-37X1,5
    LOCK RING DIN0472-37X1,5
  • 8
    50309012000 SPACER BUSHING 20X26X27,8
    SPACER BUSHING 20X26X27,8
  • 10
    50309071230 SPOKE M4,5X230-15G 21" DDE
    SPOKE M4,5X230-15G 21" DDE
  • 11
    50309072000 SPOKE NIPPLE M4,5X0,75 8X21
    SPOKE NIPPLE M4,5X0,75 8X21
  • 12
    54609070100 FRONT RIM 1,6X21" EXCEL
    FRONT RIM 1,6X21" EXCEL
  • 12
    54609070200 FRONT RIM 1,6X21" DID
    FRONT RIM 1,6X21" DID
  • 16
    51009100100 RIM LOCK VM1 (1,60")
    RIM LOCK VM1 (1,60")
  • 17
    50310090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 20
    50309060000 BRAKE DISC FRONT D=260MM
    BRAKE DISC FRONT D=260MM
  • 21
    59009062013 SPECIAL SCREW M6X13 WS8 10.9
    SPECIAL SCREW M6X13 WS8 10.9
  • 30
    50309081300 WHEEL SPIN.FRO.U5D48 D=20
    WHEEL SPIN.FRO.U5D48 D=20
  • 32
    59030029000 HH NUT M20X1,5 WS=27 RIGHT.
    HH NUT M20X1,5 WS=27 RIGHT.
  • 38
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
