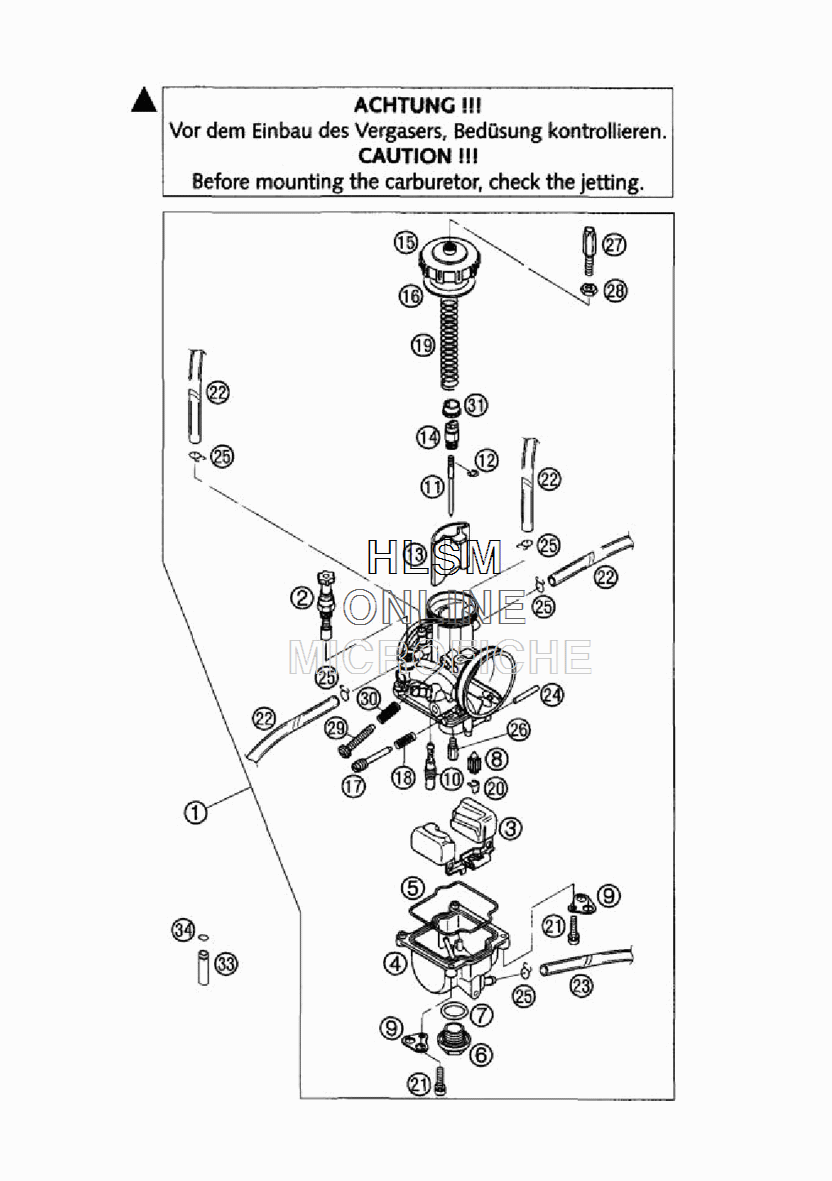

CARBURETOR KEIHIN PWK 38 AG для Ktm 300 MXC - 2002 года выпуска`

№

Артикул

Название
1

54631701144 CARBURET. KEIHIN PWK 38AG

CARBURET. KEIHIN PWK 38AG

101 590 ₽
2

54631245000 STARTER PISTON CPL.

STARTER PISTON CPL.

24 300 ₽
3

54631209000 FLOAT R-39 1.6GRAM

FLOAT R-39 1.6GRAM

13 930 ₽
4

54631211000 FLOAT CHAMBER

FLOAT CHAMBER

23 100 ₽
5

54531610000 GASKET FLOAT CHAMBER

GASKET FLOAT CHAMBER

2 690 ₽
6

54531699000 PLUG M 18X1

PLUG M 18X1

5 430 ₽
7

0770180230 O-RING 18,00X2,30 NBR 70

O-RING 18,00X2,30 NBR 70

640 ₽
8

54631220000 FLOAT NEEDLE

FLOAT NEEDLE

8 470 ₽
9

54531612100 RETAINING PLATE FOR BLEEDER

RETAINING PLATE FOR BLEEDER

590 ₽
10

54531607035 IDLE JET 35 KEIHIN

IDLE JET 35 KEIHIN

3 300 ₽
10

54531607038 IDLE JET 38 KEIHIN

IDLE JET 38 KEIHIN

3 300 ₽
10

54531607040 IDLE JET 40 KEIHIN

IDLE JET 40 KEIHIN

3 210 ₽
10

54531607042 IDLE JET 42 KEIHIN

IDLE JET 42 KEIHIN

3 300 ₽
10

54531607045 IDLE JET 45 KEIHIN

IDLE JET 45 KEIHIN

3 240 ₽
10

54531607048 IDLE JET 48 KEIHIN

IDLE JET 48 KEIHIN

3 130 ₽
10

54531607050 IDLE JET 50 KEIHIN

IDLE JET 50 KEIHIN

3 100 ₽
10

54531607052 IDLE JET 52 KEIHIN

IDLE JET 52 KEIHIN

2 840 ₽
10

54531607055 IDLE JET 55 KEIHIN

IDLE JET 55 KEIHIN

3 100 ₽
10

54531607058 IDLE JET 58 KEIHIN

IDLE JET 58 KEIHIN

0 ₽
10

54531607060 IDLE JET 60 KEIHIN

IDLE JET 60 KEIHIN

2 760 ₽
10

54531607062 IDLE JET 62 KEIHIN

IDLE JET 62 KEIHIN

2 560 ₽
10

54531607065 IDLE JET 65 KEIHIN

IDLE JET 65 KEIHIN

2 680 ₽
10

54531607070 IDLE JET 70 KEIHIN

IDLE JET 70 KEIHIN

2 560 ₽
10

54531607075 IDLE JET 75 KEIHIN

IDLE JET 75 KEIHIN

2 560 ₽
10

54531607080 IDLE JET 80 KEIHIN

IDLE JET 80 KEIHIN

2 560 ₽
11

54531636004 JET NEEDLE NOZ D KEIHIN

JET NEEDLE NOZ D KEIHIN

5 230 ₽
11

54531636005 JET NEEDLE NOZ E KEIHIN

JET NEEDLE NOZ E KEIHIN

5 520 ₽
11

54531636006 JET NEEDLE NOZ F KEIHIN

JET NEEDLE NOZ F KEIHIN

5 550 ₽
11

54531636007 JET NEEDLE NOZ G KEIHIN

JET NEEDLE NOZ G KEIHIN

5 550 ₽
11

54531636008 JET NEEDLE NOZ H KEIHIN

JET NEEDLE NOZ H KEIHIN

5 460 ₽
11

54531636009 JET NEEDLE NOZ I KEIHIN

JET NEEDLE NOZ I KEIHIN

5 430 ₽
11

54531634175 JET NEEDLE R 1475 J KEIHIN

JET NEEDLE R 1475 J KEIHIN

3 660 ₽
12

54531629000 CLIP FOR JET NEEDLE

CLIP FOR JET NEEDLE

680 ₽
13

54631235106 THROTTLE VALVE 65 KEIHIN

THROTTLE VALVE 65 KEIHIN

64 130 ₽
14

54631232000 NIPPLE

NIPPLE

10 460 ₽
15

54631227000 CARBURETOR COVER

CARBURETOR COVER

12 120 ₽
16

54531628000 RUBBER SEAL RING 40X46X1

RUBBER SEAL RING 40X46X1

1 460 ₽
17

54531617000 ADJUSTMENT SCREW

ADJUSTMENT SCREW

2 080 ₽
18

54531615000 SPRING FOR ADJUSTMENT SCREW

SPRING FOR ADJUSTMENT SCREW

620 ₽
19

54631230000 SLIDING SPRING

SLIDING SPRING

0 ₽
20

54531621000 CLAMP

CLAMP

880 ₽
21

0016040163 HH COLLAR SCREW M 4X16 WS=6

HH COLLAR SCREW M 4X16 WS=6

290 ₽
22

31007007101 BREATHER HOSE 4X6MM

BREATHER HOSE 4X6MM

760 ₽
23

52031137001 PVC-HOSE 3X5MM

PVC-HOSE 3X5MM

1 000 ₽
24

54531608000 STUD 2,5X25

STUD 2,5X25

470 ₽
25

54531696000 CLAMP 6 MM

CLAMP 6 MM

590 ₽
26

54531623150 MAIN JET 150 KEIHIN

MAIN JET 150 KEIHIN

3 150 ₽
26

54531623158 MAIN JET 158 KEIHIN

MAIN JET 158 KEIHIN

3 300 ₽
26

54531623160 MAIN JET 160 KEIHIN

MAIN JET 160 KEIHIN

3 540 ₽
26

54531623165 MAIN JET 165 KEIHIN

MAIN JET 165 KEIHIN

3 480 ₽
26

54531623168 MAIN JET GR.168 KEIHIN

MAIN JET GR.168 KEIHIN

3 540 ₽
26

54531623170 MAIN JET 170 KEIHIN

MAIN JET 170 KEIHIN

3 450 ₽
26

54531623172 MAIN JET 172 KEIHIN

MAIN JET 172 KEIHIN

3 450 ₽
26

54531623175 MAIN JET 175 KEIHIN

MAIN JET 175 KEIHIN

3 450 ₽
26

54531623178 MAIN JET 178 KEIHIN

MAIN JET 178 KEIHIN

3 660 ₽
26

54531623180 MAIN JET 180 KEIHIN

MAIN JET 180 KEIHIN

3 300 ₽
26

54531623182 MAIN JET 182 KEIHIN

MAIN JET 182 KEIHIN

3 480 ₽
26

54531623185 MAIN JET 185 KEIHIN

MAIN JET 185 KEIHIN

3 450 ₽
26

54531623188 MAIN JET 188 KEIHIN

MAIN JET 188 KEIHIN

3 390 ₽
26

54531623190 MAIN JET 190 KEIHIN

MAIN JET 190 KEIHIN

3 210 ₽
26

54531623192 MAIN JET 192 KEIHIN

MAIN JET 192 KEIHIN

3 210 ₽
26

54531623195 MAIN JET 195 KEIHIN

MAIN JET 195 KEIHIN

3 130 ₽
27

54531625000 ADJUSTMENT SCREW M6X0,75

ADJUSTMENT SCREW M6X0,75

1 960 ₽
28

52031126000 HEXAGON NUT M6X0,75 DIN0439

HEXAGON NUT M6X0,75 DIN0439

2 250 ₽
29

54631219100 ADJUSTMENT SCREW M 5

ADJUSTMENT SCREW M 5

4 590 ₽
30

54631118000 SPRING

SPRING

2 630 ₽
31

54631231000 SPRING CAP

SPRING CAP

2 860 ₽
33

50331029034 SLIDE STOP L=34MM (EURO/AUS)

SLIDE STOP L=34MM (EURO/AUS)

0 ₽
33

50331029036 SLIDE STOP L=36MM

SLIDE STOP L=36MM

0 ₽
34

0770060018 O-RING 6,00X1,78

O-RING 6,00X1,78

410 ₽
