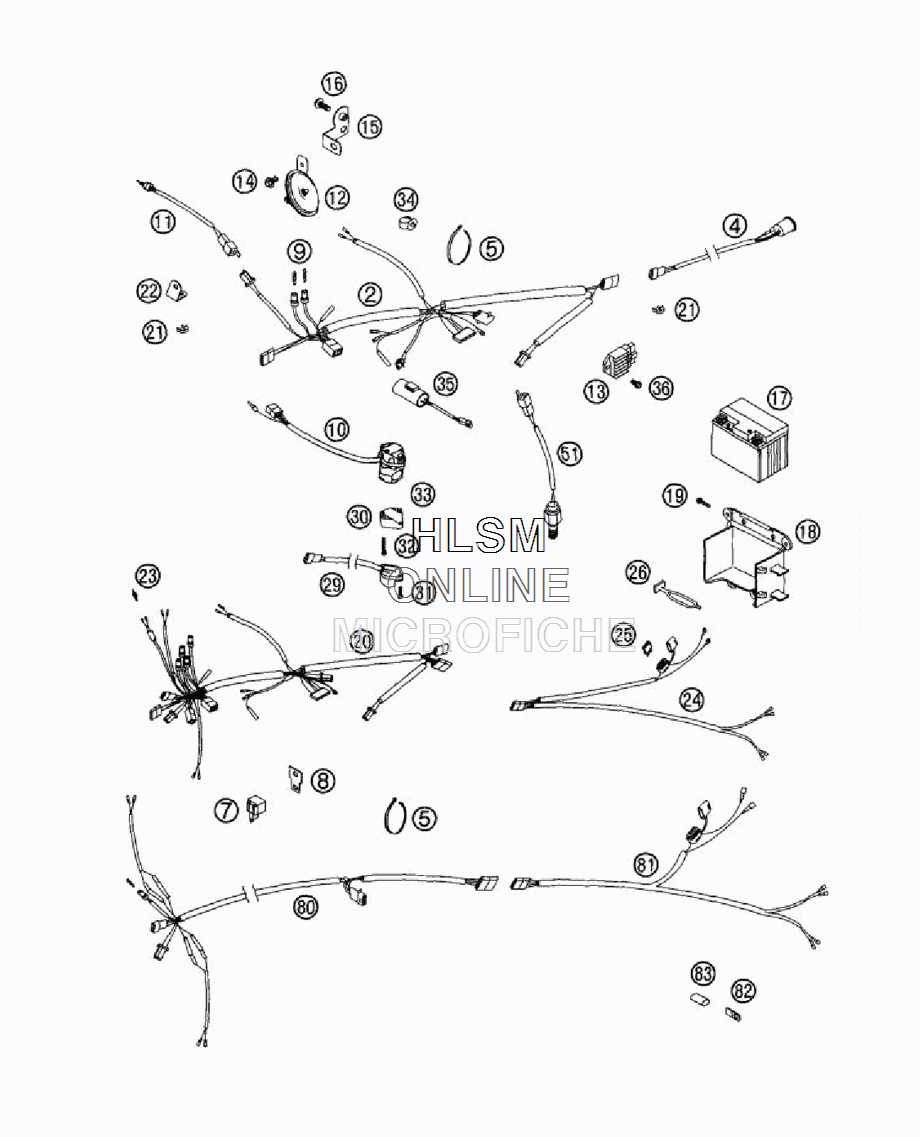

WIRING HARNESS (GS) для Ktm 200 EXC - 2002 года выпуска

  • №
    Артикул
    Название
  • 2
    50311075600 WIRING HARNESS
    WIRING HARNESS
  • 4
    50311076000 WIRING HARNESS REAR
    WIRING HARNESS REAR
  • 5
    44011076200 CABLE TIE 200MM.
    CABLE TIE 200MM.
  • 5
    44011076305 CABLE TIE 290MM
    CABLE TIE 290MM
  • 7
    44611207200 FLASHER UNIT SUMITOMO ADV.
    FLASHER UNIT SUMITOMO ADV.
  • 8
    58211031100 BRACKET FOR FLASHER RELAYS
    BRACKET FOR FLASHER RELAYS
  • 9
    49111425000 BULB 12V 1,2W (W2X4,6D)
    BULB 12V 1,2W (W2X4,6D)
  • 10
    50311070000 H.LIGHT SWITCH CEV 2/4TAKT
    H.LIGHT SWITCH CEV 2/4TAKT
  • 11
    50311050000 BRAKE LIGHT SWITCH FRONT
    BRAKE LIGHT SWITCH FRONT
  • 12
    50311060000 DC HORN 12V K80/L
    DC HORN 12V K80/L
  • 13
    50311034000 VOLTAGE REGULA. 12V
    VOLTAGE REGULA. 12V
  • 14
    0014060103 HH COLLAR SCREW M6X10 WS=8
    HH COLLAR SCREW M6X10 WS=8
  • 15
    59011061000 BRACKET FOR NIKKO HORN
    BRACKET FOR NIKKO HORN
  • 16
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 17
    51111008000 BATTERY 12V 3AH YUASA
    BATTERY 12V 3AH YUASA
  • 18
    59011055000 BATTERY CARRIER PLASTIC BLACK
    BATTERY CARRIER PLASTIC BLACK
  • 19
    0017060203 SPECIAL SCREW T60 6X20
    SPECIAL SCREW T60 6X20
  • 20
    51211075033 WIRING HAR. EXC 200 SINGAPORE
    WIRING HAR. EXC 200 SINGAPORE
  • 21
    57013072000 WIRING HOLDER 12MM 0210
    WIRING HOLDER 12MM 0210
  • 21
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 21
    57013072200 WIRING HOLDER 18MM
    WIRING HOLDER 18MM
  • 22
    54611090000 RETAINING PLATE FOR BATTERY
    RETAINING PLATE FOR BATTERY
  • 23
    51011050000 FRONT BRAKE LIGHT SWITCH
    FRONT BRAKE LIGHT SWITCH
  • 24
    51211081000 FLASH. WIRINGHARN.REAR
    FLASH. WIRINGHARN.REAR
  • 25
    58011109110 FUSE 10 A
    FUSE 10 A
  • 26
    50303025000 RUBBER FOR SIDE STAND
    RUBBER FOR SIDE STAND
  • 29
    50311029000 FLASHER SWITCH CEV
    FLASHER SWITCH CEV
  • 30
    13011070060 ADAPTER FOR FLASHER SWITCH
    ADAPTER FOR FLASHER SWITCH
  • 31
    0985040163 FLAT HEAD SCREW DIN7985-M 4X16
    FLAT HEAD SCREW DIN7985-M 4X16
  • 32
    0084040223 CYL.HEAD SCREW DIN0084-M 4X22A
    CYL.HEAD SCREW DIN0084-M 4X22A
  • 33
    0934040003 HEXAGON NUT DIN0934-M 4
    HEXAGON NUT DIN0934-M 4
  • 34
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 35
    50311035000 CONDENSATOR 2200MF ADP-48
    CONDENSATOR 2200MF ADP-48
  • 36
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 51
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 80
    50311080100 FLAS.WIRINGHARN. FRONT
    FLAS.WIRINGHARN. FRONT
  • 81
    50311081000 FLAS.WIRINGHARN. REAR
    FLAS.WIRINGHARN. REAR
  • 82
    50031003000 RETAINING PLATE
    RETAINING PLATE
  • 83
    50311025030 SHRINK HOSE 6,4/3,2 L=30 MM
    SHRINK HOSE 6,4/3,2 L=30 MM
