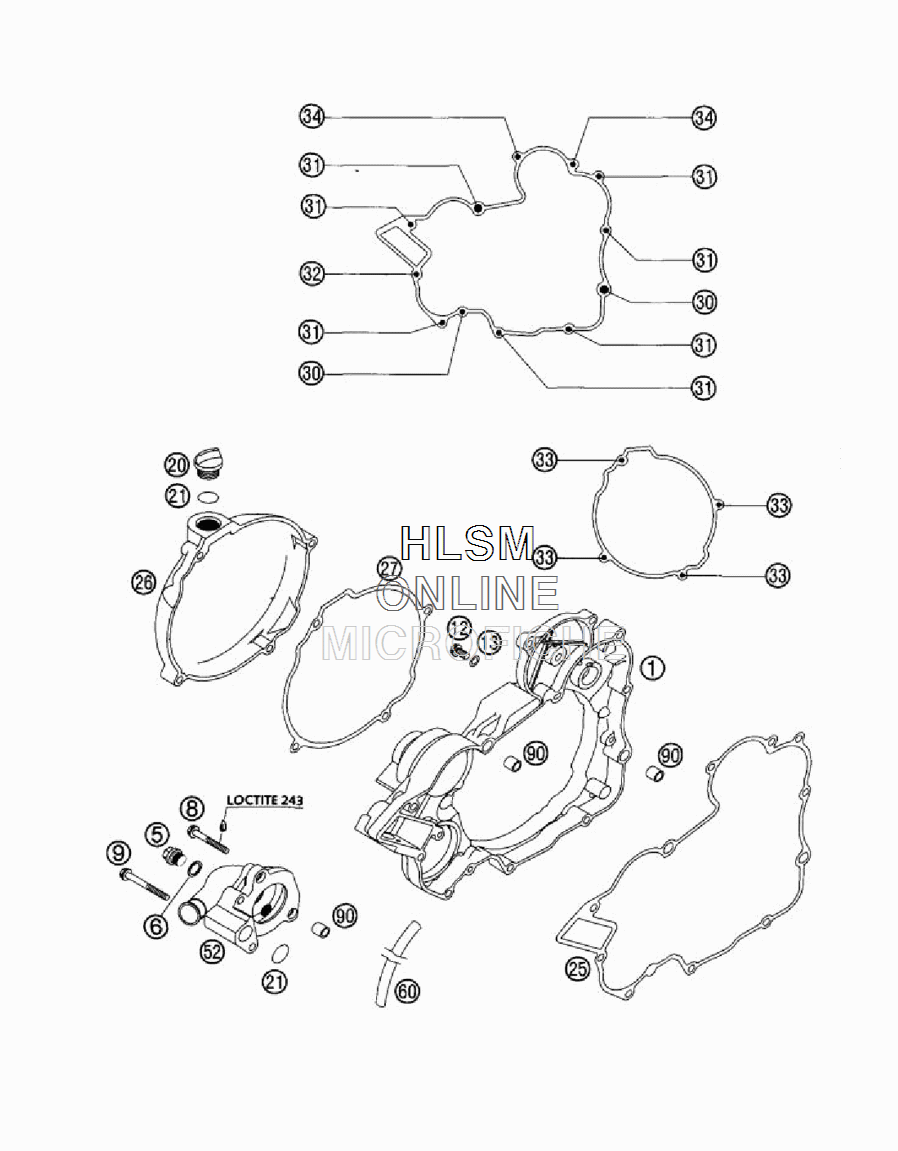

CLUTCH COVER W/OIL PUMP для Ktm 200 EXC - 2002 года выпуска

№

Артикул

Название
1

52330101044/981 CLUTCH COVER CPL. OIL PUMP

CLUTCH COVER CPL. OIL PUMP

0 ₽
5

0910100003 PLUG DIN0910-M 10X1

PLUG DIN0910-M 10X1

790 ₽
6

42013226000 CU-SEAL RING DIN7603-10X16X1

CU-SEAL RING DIN7603-10X16X1

440 ₽
8

0015060353 HH COLLAR SCREW M6X35 WS=8

HH COLLAR SCREW M6X35 WS=8

560 ₽
9

0015060503 HH COLLAR SCREW M6X50 WS=8

HH COLLAR SCREW M6X50 WS=8

640 ₽
12

0015060123 HH COLLAR SCREW M6X12 WS=8

HH COLLAR SCREW M6X12 WS=8

500 ₽
13

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
20

58030020000 PLUG M 24X3

PLUG M 24X3

1 080 ₽
21

0770160030 O-RING 16,00X3,00 NBR 70

O-RING 16,00X3,00 NBR 70

470 ₽
25

50330125000 CLUTCH COVER GASKET 0,5MM

CLUTCH COVER GASKET 0,5MM

2 800 ₽
26

5033002600098 CLUTCH OUTS.COVER

CLUTCH OUTS.COVER

19 010 ₽
27

50330027000 CLUTCH OUTS.COVER GASKET 1MM

CLUTCH OUTS.COVER GASKET 1MM

3 770 ₽
30

0015060403 HH COLLAR SCREW M6X40 SW=8

HH COLLAR SCREW M6X40 SW=8

500 ₽
31

0015060353 HH COLLAR SCREW M6X35 WS=8

HH COLLAR SCREW M6X35 WS=8

560 ₽
32

0015060553 HH COLLAR SCREW M6X55 WS=8

HH COLLAR SCREW M6X55 WS=8

470 ₽
33

0015060253 HH COLLAR SCREW M6X25 WS=8

HH COLLAR SCREW M6X25 WS=8

560 ₽
34

0015060653 HH COLLAR SCREW M6X65 WS=8

HH COLLAR SCREW M6X65 WS=8

320 ₽
52

50335052000 WATER PUMP COVER

WATER PUMP COVER

22 660 ₽
60

50332095101 TUBE VINNYLAN 6X9 DVOH

TUBE VINNYLAN 6X9 DVOH

1 870 ₽
90

49030090000 DOWEL 9,8 X 7 X 10

DOWEL 9,8 X 7 X 10

290 ₽
