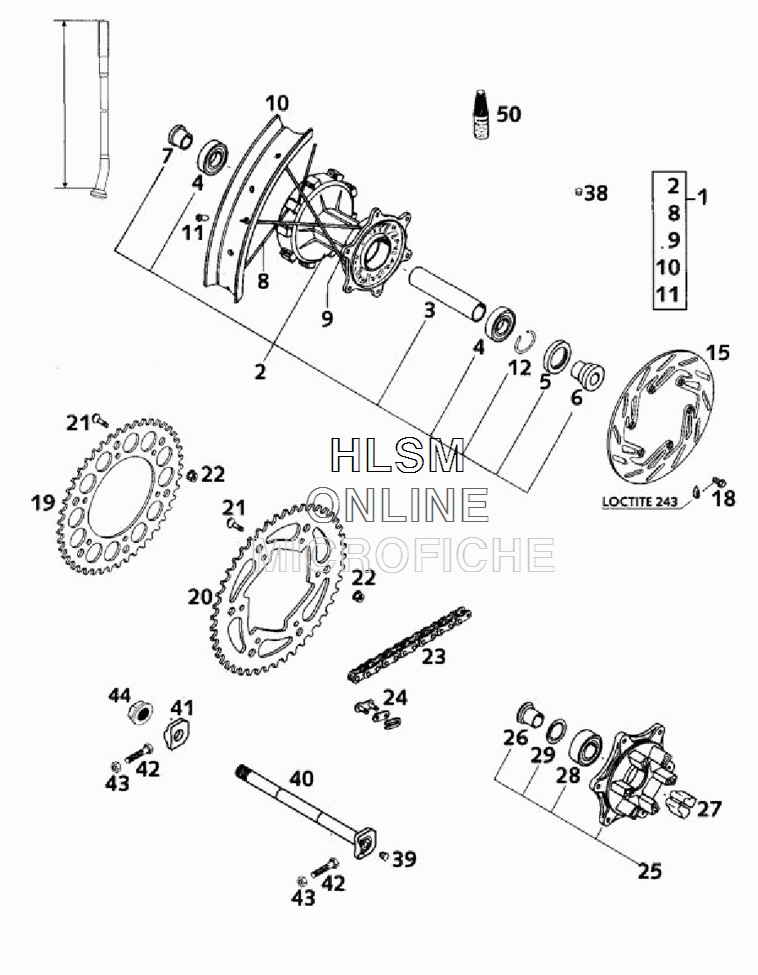

REAR WHEEL для Ktm LC4 400 Dual Sport - 2001 года выпуска`
-
№АртикулНазвание
-
158410001244 REAR WHEEL CPL. DAMPED 2,5X18REAR WHEEL CPL. DAMPED 2,5X18
-
258410010044 REAR WHEEL HUB DAMPED CPL.REAR WHEEL HUB DAMPED CPL.
-
358410011000 BEARING SPACER TUBE L=98,3MMBEARING SPACER TUBE L=98,3MM
-
40625062052 GROOVED BALL BEAR. 6205 2RSRC3GROOVED BALL BEAR. 6205 2RSRC3
-
50760325272 SHAFT SEAL RING 32X52X7 BSHAFT SEAL RING 32X52X7 B
-
658410016000 BUSHING FOR HUBBUSHING FOR HUB
-
754610416300 BUSHING FOR REAR DAMPED HUBBUSHING FOR REAR DAMPED HUB
-
854610471000 SPOKE M5X223-10G 18"SPOKE M5X223-10G 18"
-
950310071197 SPOKE M5X197-10G 18" DDESPOKE M5X197-10G 18" DDE
-
1058010470100 REAR RIM 2,50X18" DIDREAR RIM 2,50X18" DID
-
1158309072000 STEEL NIPPLE M5 CHROME PLATEDSTEEL NIPPLE M5 CHROME PLATED
-
120472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
1558010060600 REAR BRAKE DISK 220MM COUNTERSREAR BRAKE DISK 220MM COUNTERS
-
1859009062013 SPECIAL SCREW M6X13 WS8 10.9SPECIAL SCREW M6X13 WS8 10.9
-
1958310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1958310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1958310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1958310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
2058310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 10.9SPROCKET SCREW-AH M8X26 10.9
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2350010065100 O-RING CHAIN 5/8X1/4" DID (118 ROLLS)O-RING CHAIN 5/8X1/4" DID (118 ROLLS)
-
2350010065101 O-R.CHAIN 5/8X1/4"/M WLINKO-R.CHAIN 5/8X1/4"/M WLINK
-
2450010066100 MASTER LINK 5/8X1/4" O-RINGMASTER LINK 5/8X1/4" O-RING
-
2558310050044 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
2654610417300 BUSH.F.SPROCKETSUPPORT L=25MMBUSH.F.SPROCKETSUPPORT L=25MM
-
2754610459000 DAMPING RUBBERDAMPING RUBBER
-
280625032057 GROOVED BALL BEAR. 3205.B.2RSRGROOVED BALL BEAR. 3205.B.2RSR
-
2954610018000 SEAL WASHER 3205 AVSEAL WASHER 3205 AV
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4050210085044 WHEEL SPINDLE REAR CPL.L=264MMWHEEL SPINDLE REAR CPL.L=264MM
-
4156510084100 CHAIN TENSIONERCHAIN TENSIONER
-
4250203030090 HH SCREW M8X40 A2 WS=10HH SCREW M8X40 A2 WS=10
-
430934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
-
506899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
