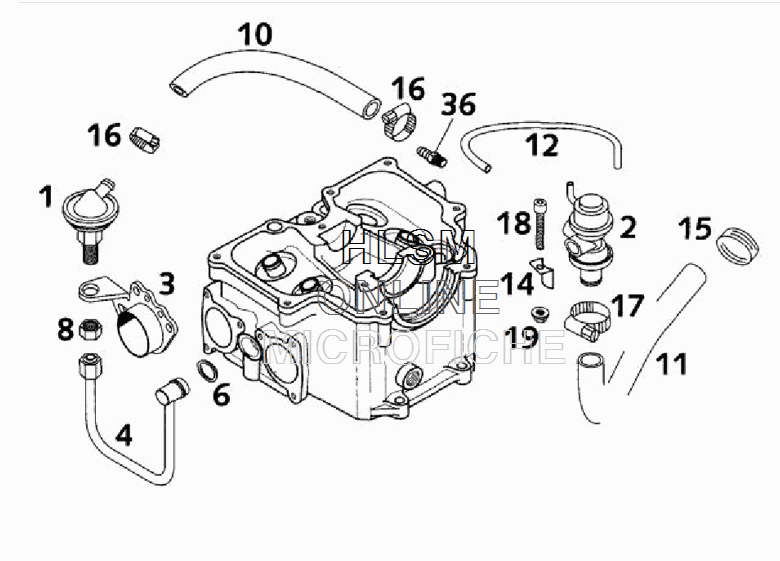

SECONDARY ARM SYSTEM для Ktm LC4 400 Dual Sport - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    58405026000 SECONDARY AIR VALVE
    SECONDARY AIR VALVE
  • 2
    58405024000 CONTROL VALVE ASV
    CONTROL VALVE ASV
  • 3
    58436039000 EXHAUST FLANGE CPL. FOR SLS
    EXHAUST FLANGE CPL. FOR SLS
  • 4
    58405027000 CONNECTING TUBE SLS
    CONNECTING TUBE SLS
  • 6
    58436054000 CU-SEAL RING 12 X 16 X 2
    CU-SEAL RING 12 X 16 X 2
  • 8
    58405023000 HEXAGON NUT M16X1,5
    HEXAGON NUT M16X1,5
  • 10
    58335025001 RADIATOR HOSE(REINFORCED)12X3
    RADIATOR HOSE(REINFORCED)12X3
  • 11
    58405028000 PREFORMED HOSE 18X3,5
    PREFORMED HOSE 18X3,5
  • 12
    58405029001 ND-HOSE 4X9 PER METER
    ND-HOSE 4X9 PER METER
  • 14
    58405025000 BRACKET FOR CONTROL VALVE
    BRACKET FOR CONTROL VALVE
  • 15
    00050250906 WV-CLAMP D=25MM OETIKER
    WV-CLAMP D=25MM OETIKER
  • 16
    58335099000 HOSE CLAMP GEMI 10-16
    HOSE CLAMP GEMI 10-16
  • 17
    10001020000 HOSE CLAMP GEMI 16/27
    HOSE CLAMP GEMI 16/27
  • 18
    0912060404 AH SCREW DIN0912-M 6X40
    AH SCREW DIN0912-M 6X40
  • 19
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 36
    58336020090 VACUUM CONNECTION M6X1
    VACUUM CONNECTION M6X1
