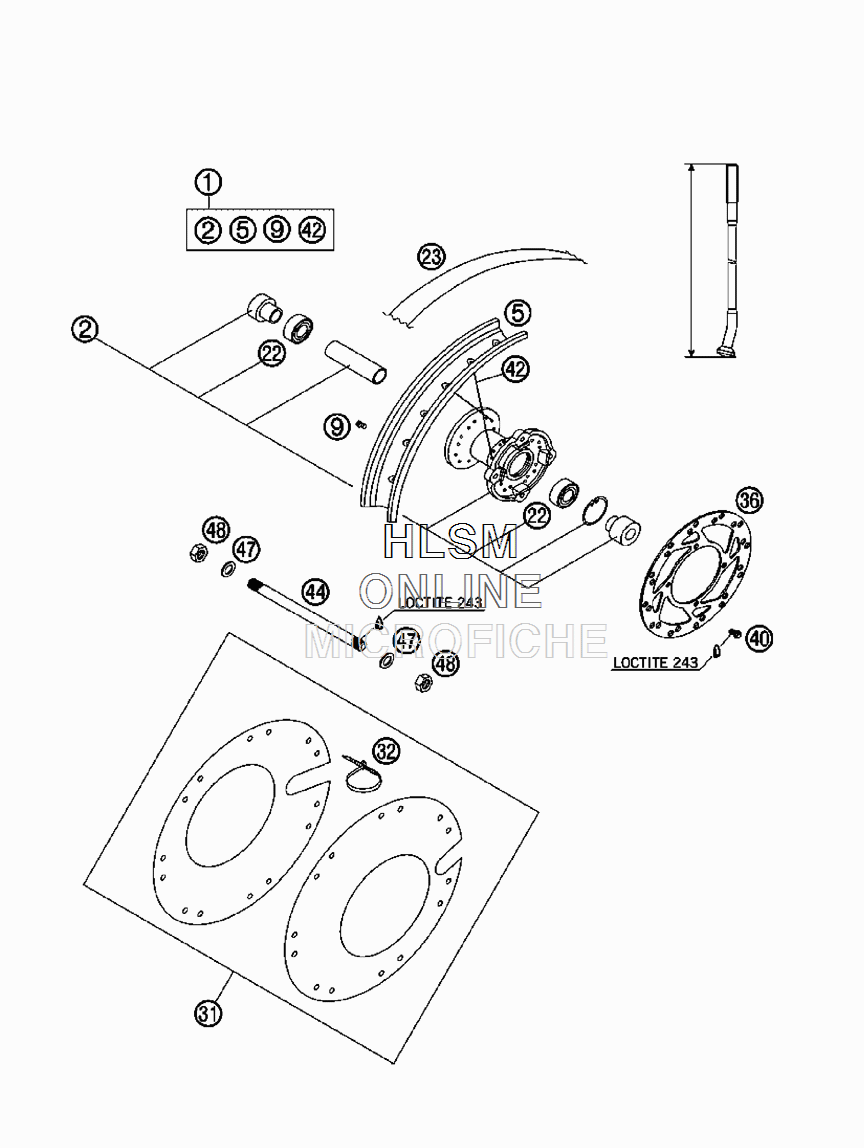

FRONT WHEEL для Ktm 50 SX Pro Jr - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    45109001444 FRONT WHEEL CPL.1,5X10" STEEL
    FRONT WHEEL CPL.1,5X10" STEEL
  • 2
    45109010044 FRONT WHEEL HUB CPL.
    FRONT WHEEL HUB CPL.
  • 5
    45109001101 RIM 1,6X10" ALUMINIUM
    RIM 1,6X10" ALUMINIUM
  • 9
    45109072000 SPOKE NIPPLE 3MM
    SPOKE NIPPLE 3MM
  • 22
    0625062027 BALL BEARING 6202 2RS1 C3
    BALL BEARING 6202 2RS1 C3
  • 23
    45009073000 RIM BAND 10" 22MM
    RIM BAND 10" 22MM
  • 31
    45110092000 WHEEL COVER CPL. 50SX LC
    WHEEL COVER CPL. 50SX LC
  • 32
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 36
    45109060000 BRAKE DISC FRONT
    BRAKE DISC FRONT
  • 40
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 42
    45109071102 SPOKE 3X100X6MM-110°
    SPOKE 3X100X6MM-110°
  • 44
    46010085000 AXLE 207MM M12X1
    AXLE 207MM M12X1
  • 47
    0125120003 FLAT WASHER DIN0125-A13
    FLAT WASHER DIN0125-A13
  • 48
    0934120103 HEXAGON NUT DIN0934-M12X1
    HEXAGON NUT DIN0934-M12X1
